Product Name

Super Max 12300

Promotion Till 02/09/10
MSRP: $12,739.00
Special Price: $8,177.00
This product cannot be ordered online. Please call us.
Parts List Applications


Price excludes freight.

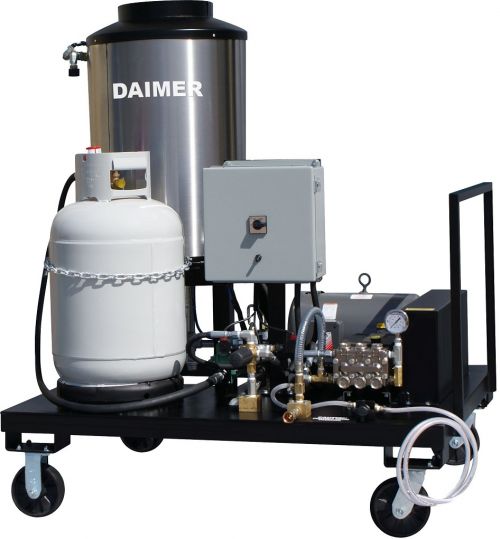

The Super Max™ 12300 tri-mode system can be used independently as a cold water pressure washer, hot water pressure washer, or steam pressure washer. This electric pressure washer with a propane heating system offers the same portability and versatility as the Super Max™ 12200 (optional two gun operation and the ability to be used as a trailer mounted pressure washer) with a higher flow rate (5 GPM) and pressure (3000 psi) than the Super Max™ 12200.This model is ideal for those desiring the features of the 12200, but with additional power for more difficult applications.

Daimer offers pressure washers in a variety of power configurations for worldwide requirements. The following are available: 110-120V, 208V, 220-240V, 380V, 400V, 415V, 440V, 480V, and 600V; two and three phase; 50 or 60 Hz. Please contact us for pricing.

Commercial/Industrial
Warranty1 year (limited)Water Pump Warranty5 years (limited)Motor/Engine Warranty2 years (limited)
Product Specifications
Pressure 3000 psi
Adjustable Pressure dual or multi-pressure selection optional - call for pricing
Flow Rate 5 GPM
Standard Power Method electric: 230V, three phase, 60 Hz
Optional Power Methods (call for pricing) 230V, three phase, 50 Hz & 440V, three phase, 50 or 60 Hz
Motor Size heavy duty 10.0 HP - NEMA
Gasoline Capacity N/A
Ignition System electronic direct spark
Power cords 1
Heating Method propane
Heating Fuel Capacity 50 lb. empty tank included
Temperature Options cold, hot, wet steam
Temperature Hot 180 º F - 220 º F
Steam Temperature up to 330º F
Heater Exchange Coil heavy duty schedule 80 heating coil
Heater Response Time converts cold to hold water in approximately 30 seconds
Operating Time continuous use
Pump Drive Method shaft drive
Chemical Infusion yes, high pressure injection
Wand Included durable 3' trigger wand with quick disconnect
Nozzles Standard 0º (blast), 15º, 25º, 40º, steam nozzles
Pressure Hose 50' high pressure steam hose
Pressure Hose Options additional/customizable lengths available
Dimensions 48"w. x 41"d. x 58"h.
Weight 900 lbs
Housing steel - powder-coated, high gloss, chip/chemical resistant
Color red and white
Phosphatizing System N/A- see Super Max 12300 AF
Acid/Phosphate Chemical Feed N/A
Trailer Mount wheels removed - same price
Multi-Gun Operation optional - call for pricing
Wall Mount N/A
Wet Sandblasting System optional - call for pricing

PARTS LIST

Standard Parts / Quantity

3' Durable Trigger Wand with Quick Disconnect1
0º (Blast) Nozzle (not shown)1
15º Nozzle (not shown)1
25º Nozzle (not shown)1
40º Nozzle (not shown)1
Steam Nozzle (not shown)1
50' High Pressure Steam Hose (not shown)1

Sample Cleaning Applications
