Product Name

Super Max 15500 AF

Promotion Till 02/09/10
MSRP: $12,960.00
Special Price: $8,116.00
This product cannot be ordered online. Please call us.
Parts ListApplications


Price excludes freight.

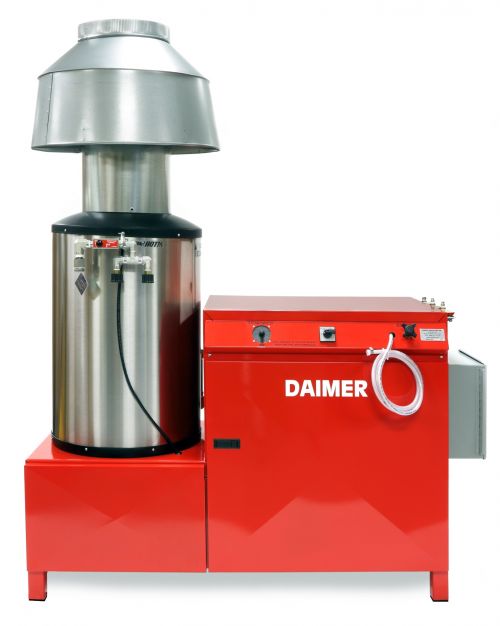

The Super Max15500 AF is a stationary, electric pressure washer offering temperatures up to 180º F, like the 15200 AF and 15400 AF. The Super Max 15500 AF also offers the same high pressure injection, for the addition of cleaning chemicals, as other 15000 AF series models. The Super Max™ 15500 AF, however, offers a flow rate of 4 GPM at a pressure of 1000 psi. This model is ideal for those requiring the permanent addition of a pressure washer offering a mid-range pressure, but a flow rate higher than the 2 GPM flow rate available with the Super Max™ 15200 AF.

The included phosphatizing system sets this pressure washer machine apart from other brands. Using downstream injection to pre-treat metal surfaces against rust and corrosion and to prepare these surfaces for the application of paint primer or powder coating, this system is the ideal solution for any industrial phosphatizing application. Adding to its functionality is the stainless steel dual lance wand that features a high-pressure nozzle and a low-pressure nozzle. By opening and closing a crossover valve the water flow is directed through the tube of either nozzle, but not both at the same time.

Like all Daimer products, this phosphatizing system and all its parts and fittings are made of the highest quality stainless steel components; and with minimal parts in contact with the corrosive chemicals, this system is both durable and long-lasting. Heating options are the same as other 15000 AF series models (no.1 or no. 2 heating oil; diesel; kerosene; propane; and natural gas) and available options include two gun operation.

Daimer offers pressure washers in a variety of power configurations for worldwide requirements. The following are available: 110-120V, 208V, 220-240V, 380V, 400V, 415V, 440V, 480V, and 600V; two and three phase; 50 or 60 Hz. Please contact us for pricing.

Commercial/Industrial
Warranty1 year (limited)Water Pump Warranty5 years (limited)Motor/Engine Warranty2 years (limited)
Product Specifications
Pressure1000 psi
Adjustable PressureN/A
Flow Rate4 GPM
Standard Power Methodelectric: 230V, single phase, 60 Hz
Optional Power Methods(call for pricing) 230V, single phase, 50 Hz; 230V three phase, 50 or 60 Hz; & 440V, three phase, 50 or 60 Hz
Motor Sizeheavy-duty 3 HP - NEMA
Gasoline CapacityN/A
Ignition Systemelectronic direct spark
Power cords1
Heating Methodno.1 or no. 2 heating oil; diesel; kerosene; natural gas (requires natural gas line); or propane (customer provides vapor withdrawal cylinder)
Heating Fuel Capacity9 gallons (heating oil, kerosene, or diesel)
Temperature Optionscold, hot
Temperature Hotup to 180 º F
Steam TemperatureN/A
Heater Exchange Coilheavy duty schedule 80 heating coil
Heater Response Timeconverts cold water to hot water in approximately 30 seconds
Operating Timecontinuous use
Pump Drive Methoddirect drive
Chemical Infusionyes, high pressure injection
Wand Includeddual lance wand
Nozzles Standard0º (blast), 15º, 25º, 40º nozzles
Pressure Hose50' high pressure hose
Pressure Hose Optionsadditional/customizable lengths available
Dimensions52"w. x 23"d. x 50"h.
Weight1010 lbs
Housingpowder-coated steel, high gloss, chip/chemical resistant
Colorred and white
Phosphatizing SystemYes
Acid/Phosphate Chemical Feeddownstream stainless steel injector with chemical proportioning adjustment, mounted at the outlet of heating coil
Trailer MountN/A
Multi-Gun Operationoptional - call for pricing
Wall MountN/A
Wet Sandblasting Systemoptional - call for pricing

PARTS LIST

Standard Parts / Quantity

Dual Lance Wand with crossover valve1
0º (Blast) Nozzle (not shown)1
15º Nozzle (not shown)1
25º Nozzle (not shown)1
40º Nozzle (not shown)1
50' High Pressure Hose (not shown)1

Sample Cleaning Applications
