Price: $19,427.00
This product cannot be ordered online.
Please call us at 1-800-471-7157.


Price excludes freight.

truck mount carpet cleaner, truck mount carpet cleaners

  • High-Powered 25 HP gasoline engine
  • Fully Adjustable 1000 PSI pressure and 4.8 GPM
  • Temperatures up to 210ºF
  • Patented XTreme-XTraction® wand Included with special temperature and pressure controls
  • Heat exchanger includes our 2 rugged stainless steel heating coils
  • 300' of hoses

truck mount carpet cleaning equipment

Product Specifications

Warranty System1 Year (Limited)
Engine25 HP
Pressure (Adjustable)1000 Psi
Flow Rate (Max / Adjustable)4.8 GPM
TemperatureUp to 210 F
Heat Exchanger(s) (Stainless)2 Coils
Adjustable Heat Exchanger Temp ControlYes
Max CFM (Airflow)410
Water Lift16" Hg
Vacuum Filters4 Filters in Sequence
Recovery Tank (Stainless)80 Gallons
12" Carpet Wand (XTreme-Xtraction)Included
Special Wand Control - Pressure & TempYes
Vacuum Hose Length300'
Solution Hose Length300'
Dimensions55"L x 32"W x 40"H
Weight550 lbs
Vacuum Safety ValvesYes
Chemical Feed (Adjustable)Yes
Pressure GaugeYes
Hour MeterYes
Pressure Safety ValvesYes
Faucet Adapter KitIncluded
Vacuum Hose Reel Optional
Solution Hose ReelOptional
Adjustable Thermostat Optional
Standard Solution Hose Reel Optional
Inline Auto Dump System Optional
Stair Wand Optional
Upholstery WandOptional
Crevice ToolOptional
12", 4 Jet Squeegee Wand (Hard Surface)Optional
18", 4 Jet Squeegee Wand (Hard Surface)Optional
9" Patented Motorized Spinner (Hard Surface)Optional
19" Patented Motorized Spinner(Hard Surface)Optional
12", 4 Jet Wall Wand (Hard Surface)Optional

Versatile Truck Mount Carpet Cleaning Machines Offer Superior Results

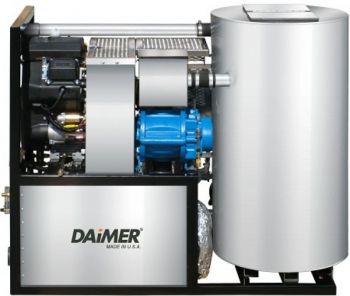

The XTreme Power® XPH TM 10230 is a versatile, advanced and portable carpet cleaner with truck mounted configurations. Featuring pressure levels of 1000 psi and flow rates of 4.8 gpm, these truck mount carpet cleaning machines have been designed to accomplish excellent cleaning results in industrial and commercial environments.

Powered by a 25 HP engine and capable of attaining an airflow of 410 cfm, the carpet cleaning machine with a vacuum lift of 16-inch Hg offers superior cleaning results on almost all kinds of carpets. The truck mounted carpet steamers also feature four filters in sequence to offer outstanding vacuum filtration functions. The capability to add cleaning chemicals via the chemical injection function empowers the machines with enhanced cleaning power.

Durability is another outstanding aspect of the XTreme Power® XPH TM 10230. The steel frame, two stainless steel heater exchange coils, and the stainless steel recovery tank add to the durable and reliable nature of the carpet cleaning machines. The powerful heating system helps generate temperatures as high as 210ºF. Unlike the case of conventional rug washers, the temperatures in the XTreme Power® XPH TM 10230 can be adjusted to make it suitable for use on different types of carpets.

Another aspect that makes the XTreme Power® XPH TM 10230 the best rug shampooer is its versatility to maintain hard surfaces with its multiple optional attachments, such as squeegee wands, stair wand, crevice tool, and motorized spinners. The 300 feet long vacuum hose enables users to clean large carpeted areas without moving the professional truck mount carpet cleaner. The optional upholstery tool helps the rug cleaning system maintain upholstered surfaces.
