VoltageHeating FuelPrice Call to order
230V, three phase, 60HzPropane$14,284.00 1-800-471-7157

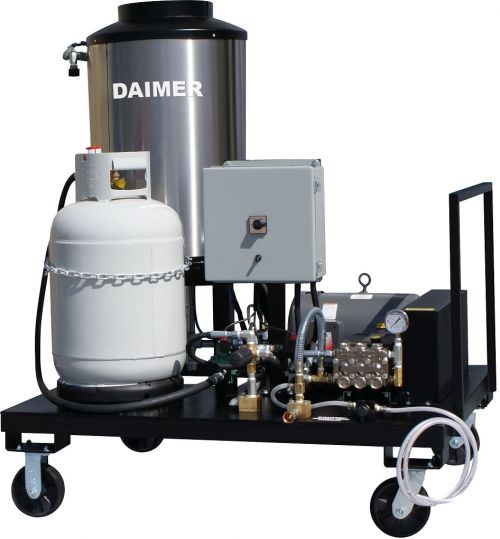

The Super Max™ 12300B is a tri-mode 50 Hz system with cold water pressure washer which can be used independently.

  • Pressure: 3000 psi
  • Flow Rate: 5 GPM
  • Heating Method: Butane
  • Motor Size: Heavy duty 10.0 HP

Have a question about this item?
Contact us and a sales representative would be glad to help!

Description




Price excludes freight.

View This Video - Discover Daimer's Absolutely

Outstanding Wet Steam Degreasing Capabilities

Loading the player…





truck mouint pressure washer, steam pressure washer

The Super Max™ 12300B tri-mode 50 Hz system can be used independently as a cold water pressure washer, hot water pressure washer, or steam pressure washer. This electric pressure washer with a butane heating system offers the same portability and versatility as the Super Max™ 12200B (optional two gun operation and the ability to be used as a trailer mounted pressure washer) with a higher flow rate (5 GPM) and pressure (3000 psi) than the Super Max™ 12200B.This model is ideal for those desiring the features of the 12200B, but with additional power for more difficult applications.

Daimer offers pressure washers in a variety of power configurations for worldwide requirements. The following are available: 110-120V, 208V, 220-240V, 380V, 415V, 440-480V, and 575V; single and three phase; 50 or 60 Hz. Please contact us for pricing.

Product Specifications

Warranty1 year (limited)Water Pump Warranty5 years (limited)Motor/Engine Warranty2 years (limited)
Pressure3000 psi
Flow Rate5 GPM
Temp. Optionscold, hot, wet steam
Steam Temp.up to 330ºF
Hot Water Temp.180ºF - 210ºF
Standard Power Methodelectric: 220V-240V, three phase, 50 Hz
Optional Power Methods(call for pricing) 220V-240V three phase, 50 or 60 Hz; & 440V, three phase, 50 or 60 Hz
Motor Sizeheavy duty 10.0 HP - NEMA
Minimum Generator SizeContact Daimer
Gasoline/Diesel Fuel CapacityN/A
Ignition Systemelectronic direct spark
Power Cords1
Heating Methodbutane (LPG)
Heating Fuel Capacity50 lb. empty tank included
Heater Exchange Coilheavy duty schedule 80 heating coil
Heater Response Timeconverts cold to hold water in approximately 30 seconds
Operating Timecontinuous use
Pump Drive Methodshaft drive
Chemical Infusionyes, high pressure injection
Wand Includeddurable 3' trigger wand with quick disconnect
Nozzles Standard0º (blast), 15º, 25º, 40º, steam nozzles
Pressure Hose50' high pressure steam hose
Pressure Hose Optionsadditional/customizable lengths available
Dimensions48"w. x 41"d. x 58"h.
Weight900 lbs
Housingsteel - powder-coated, high gloss, chip/chemical resistant
Colorred and white
Phosphatizing SystemN/A- see Super Max 12300 AF
Acid/Phosphate Chemical FeedN/A
Trailer Mountwheels removed - same price
Multi-Gun Operationoptional - call for pricing
Wall MountN/A
Wet Sandblasting Systemoptional - call for pricing
Applications

  • Agricultural and Farm Equipment Cleaning
  • Airports Steam Cleaners
  • Brick Cleaning
  • Bus Washing
  • Coils, Condensers Related Cleaning
  • Concrete Cleaning
  • Construction Equipment Cleaning
  • Conveyor Belt Cleaning - Non-Food/Beverage
  • Degreasing Industrial Equipment
  • Drum Cleaning
  • Equipment Cleaning - Non-Food/Beverage Industry
  • Farm Equipment Cleaning
  • Floor and Wall Cleaning - Foodservice Kitchens
  • Forklift Truck Cleaning
  • Heat Exchangers Cleaning
  • Heavy Equipment Cleaning
  • Hood Duct Cleaning - Foodservice Kitchens
  • Ice Dam Removal - Gutters
  • Industrial Equipment Degreasing
  • Kitchen Cleaning - Foodservice Cleaning Contractors
  • Kitchen Cleaning - Foodservice Operators
  • Machine Shop Equipment Degreasing
  • Metal Degreasing
  • Metal Working Equipment Cleaning
  • Oil Rig Platform Cleaning
  • Paint Removal (Small Areas)
  • Parking Lot Cleaning (Concrete)
  • Parts Washing
  • Rust Removal (Small Areas)
  • Shower Cleaning - Commercial
  • Sidewalk Cleaning (Concrete)
  • Supermarket Carts Cleaning Disinfection
  • Swimming Pool Tile Cleaning
  • Truck Washing
  • Walls Floors Degreasing
  • Wheelchair Cleaning

Parts List

PARTS LIST

Standard Parts / Quantity

3' Durable Trigger Wand with Quick Disconnect 1
0º (Blast) Nozzle (not shown) 1
15º Nozzle (not shown) 1
25º Nozzle (not shown) 1
40º Nozzle (not shown) 1
Steam Nozzle (not shown) 1
50' High Pressure Steam Hose (not shown) 1
