(Clone) (Clone) SM-20000-436
USD
Daimer
VoltagePrice Call to order
480V, three phase, 60HzContact Daimer 1-800-471-7157

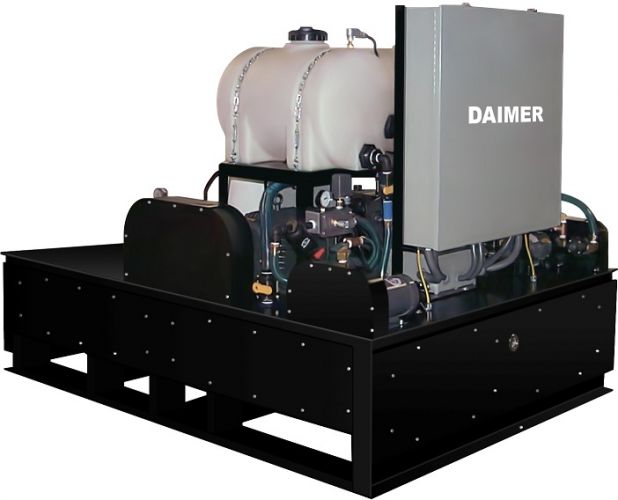

The Super Max™ 20000 WS is the MOST POWERFUL, electric cold water wet sandblaster pressure washer offered by Daimer.

  • Pressure: 6500 PSI
  • Flow Rate: 8 GPM
  • Standard Power Method: 460V, three phase, 60 Hz
  • Motor Size: Heavy duty 40 H.P. TEFC motor

Have a question about this item?
Contact us and a sales representative would be glad to help!

Description



Price excludes freight.

pressure washer, pressure washers

The Super Max20000 WS is the MOST POWERFUL cold water wet sand blaster pressure washer offered by Daimer. Powered by an outstanding 40 HP NEMA electric engine, this pressure washer provides an immense pressure of 6500 psi and flow rate of 8 GPM! This pressure washer machine can be configured to meet your needs. It consists of three remote stations, allowing up to three users to simultaneously use the machine and comes with a wall mounted NEMA 4 enclosure.

Adding to the robust functionality of the 20000 WS is Daimer's exclusive wet sand blaster system. This extends the equipment's capabilities beyond the contaminant removal of normal pressure washers to the actual removal of layers of material from surfaces. The 20000 WS can remove rust, corrosion, paint layers, heavy deposits and other substances from surfaces. It does so by forcing high-pressure water carrying sand grit across the surface at high speeds.

The wet sand blaster system works in phases. First, the sand point draws the sand directly from the container into the system. The sand is then carried by the 15' flexible sand pickup tube into the special venturi head where it is mixed with high-pressure water. This mixture exits the system at high speeds through the special round nozzle and can be controlled via the proportioning valve on the head. Wet sandblasting can be accomplished using a range of sand grit sizes or media, including baking soda and small plastic pellets.

With a specially designed 1 1/2" width spray pattern, Daimer's wet sand blaster machines work best for spot removal of corrosion, rust, and other materials from metal surfaces.

The high flow rate and pressure combined with multi-user capability and wet sandblasting functionality make this cold water pressure washer machine the ultimate solution for the most demanding industrial cold water pressure washing applications.

Daimer offers pressure washers in a variety of power configurations for worldwide requirements. The following are available: 110-120V, 208V, 220-240V, 380V, 415V, 440-480V, and 575V; single and three phase; 50 or 60 Hz. Please contact us for pricing.

Product Specifications

Warranty1 year (limited)Water Pump Warranty5 years (limited)Motor/Engine Warranty2 years (limited)
Pressure6500 psi
Flow Rate8 GPM
Temp. Optionscold water
Steam Temp.N/A
Hot Water Temp.Optional support up to 180°F. Call for more information.
Standard Power Method460V, three phase, 60 Hz
Optional Power MethodsN/A
Motor Sizeheavy duty 40 H.P. TEFC motor
Gasoline/Diesel Fuel CapacityN/A
Ignition SystemN/A
Power Cords1
Heating MethodN/A
Heating Fuel CapacityN/A
Heater Exchange CoilN/A
Heater Response TimeN/A
Operating Timecontinuous use
Pump Drive Methodbelt drive
Chemical Infusionoptional - call
Wand Includedthree durable 3' trigger wands with quick disconnect
Nozzles Standard0º (blast), 15º, 25º, 40º
Pressure Hosethree 50' high pressure hydraulic hoses (one for each wand)
Pressure Hose Optionsadditional/customizable lengths available
Dimensionsvariable - depending upon configuration
Weight2000 lbs
Housingpowder coated carbon steel frame
Colorblack
Phosphatizing SystemN/A
Acid/Phosphate Chemical FeedN/A
Trailer MountN/A
Multi-Gun Operationthree gun operation standard
Wall Mountwall mounted NEMA 4 enclosure
Wet Sandblasting Systemyes

Parts List


PARTS LIST

Standard Parts / Quantity

3' Durable Trigger Wand with Quick Disconnect 1
0º (Blast) Nozzle (not shown) 1
15º Nozzle (not shown) 1
25º Nozzle (not shown) 1
40º Nozzle (not shown) 1
Steam Nozzle (not shown) 1
Venturi Nozzle (not shown) 1
50' High Pressure Steam Hose (not shown) 1
Sand Tube (not shown) 1
Pick Up Probe (not shown) 1
