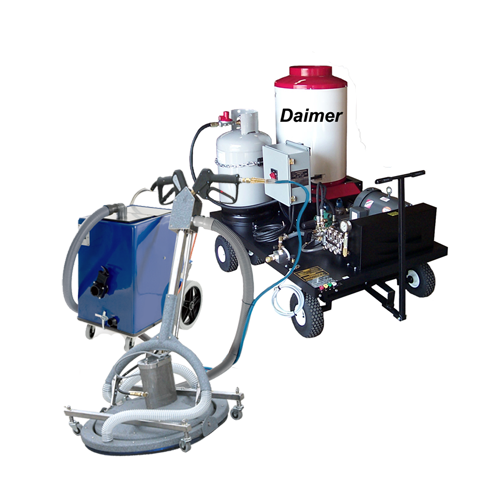

The XTreme Power® HSC 17500 GE is a heated commercial industrial spinner hard surface cleaner, combining the Super Max™ 12500 GE gas powered, propane fired, tri-mode pressure washer and the XTreme Power® 11500 SE sludge extractor with Daimer's 19" spinner head to create a powerful outdoor hard surface cleaning machine. With the same extraction capabilities, pressure (3000 psi) and flow rate (5 GPM) as the 17300, the Super Max™ 12500 GE is powered by an 18 HP gasoline engine, making it ideal for outdoor applications requiring a hardworking hard surface cleaner where electrical supply is not available.

Have a question about this item?
Contact us and a sales representative would be glad to help!

Description

Price excludes freight.

Daimer's exclusive motorized spinner features 60% faster cleaning power and
70% better cleaner results than non-motorized spinner systems on the market!

hard floor cleaners, hard floor steam cleaners, hard surface floor cleaners, turbo force

This robust, versatile machine system is actually several machines in one :

1. Powerful Commercial Multi-Surface Portable 3000 PSI Heated Hard Surface Spinner Cleaning Machine. Exceptional spinner cleaning temperatures up to 210º F. Add an Optional 9" Spinner/Wand for Smaller Area Cleaning.

2. Commercial Steam Pressure Washer. 3000 PSI, up to 5 GPM. Pressure Washer Wand Included.

3. Commercial Wall Cleaning System. Using optional Squeegee Wand or optional 9" Spinner for Placement in Hands

4. Commercial Sludge Extractor. Powerful 30 GPM for Water Damage Restoration.

The XTreme Power® HSC 17500 GE is a heated commercial industrial spinner hard surface cleaner, combining the Super Max™ 12500 GE gas powered, propane fired, tri-mode pressure washer and the XTreme Power® 11500 SE sludge extractor with Daimer's 19" spinner head to create a powerful outdoor hard surface cleaning machine. This unique, powerful machine is ideal in the removal of oil, grease, dirt, and other substances that detract from the appearance of concrete, driveways, walkways, sidewalks, and other outdoor surfaces.

The spinner included can be used with hot water temperatures up to 210º F. In addition, the XTreme Power® HSC 17500 GE provides steam at temperatures of up to 330º F. With similar features as the XTreme Power® HSC 17300 , maintaining a high pressure (3000 psi) and flow rate (5 GPM), the 17500 GE is powered by an 18 HP gasoline engine. This makes the XTreme Power® HSC 17500 GE ideal for outdoor applications where a constant electrical supply is not available. Alternatively, the Super Max™ 12500 GE a tri-mode pressure washer and the XTreme Power® 11500 SE sludge extractor can be used independently. Please see the product pages for the Super Max™ 12200 and the XTreme Power® 11500 SE sludge extractor for the specs about these cleaning machine models.

Add an optional 9" spinner head configuration to quickly swap out the 19" spinner tool if you wish to clean surfaces for which the larger tool is inappropriate.

Product Specifications

Extractor System Warranty1 yearSpinner Housing Warranty3 years (limited)Heating Unit (Pressure Washer) Warranty1 yearSpinner System Warranty1 Year Parts & LaborWater Pump Warranty3 years (limited)
Pressure3000 psi
Flow Rate5 GPM
Temperature Optionscold, hot & wet steam (steam cannot be used with spinner head)
Temperature (Hot)180ºF - 210ºF
Temperature (Steam)up to 330ºF (not for use with spinner head)
Heating MethodPropane
Propane Tank50 lb. empty tank included
Heater Exchange Coilheavy duty schedule 80 heating coil
Spinner Diameter19 inches
Spinner Length46 inches
Spinner RPM1000 rpm
Standard Power Method (pressure washer)gasoline engine
Optional Power Methods (pressure washer)N/A
Motor Size (pressure washer)heavy duty 18.0 HP gasoline engine
Ignition Systemelectronic direct spark
Operating Timecontinuous use
Pump Drive Methodshaft drive
Continuous Water FeedYes. Connect hose from water line directly to pressure washer.
Recovery Tank Size10 gallons
Automatic DumpYes - Auto dump can be turned off if not required.
Dumping Capacity30 gallons/minute
Air Flow212 cfm (cubic feet/minute)
Water Lift147"
Motor (extractor)Two - 3 stage vacuum motors
Power (extractor)electric: 120V
Heater Response Timeconverts cold water to hot water in approximately 30 seconds
Chemical Infusionyes, high pressure injection
Vacuum Hose50' hose included
Dump Hose50' hose included
Steam Hose50' high pressure steam hose
Pressure Nozzles0º (blast), 15º, 25º, 40º, steam nozzles
Pressure Wanddurable 3' trigger wand with quick disconnect
Squeegee Wand14.5" extraction squeegee wand
Optional Wands12" squeegee wand with 4 jets; 18" squeegee wand with 6 internal jets; & 9" motorized spinner
Housing (pressure washer)steel - powder-coated, high gloss, chip/chemical resistant
Housing (extractor)heavy duty fiber composite
Color (pressure washer)red and white
Color (extractor)blue or red
Dimensions (pressure washer)57"w. x 41"d. x 58"h.
Dimensions (extractor)16"w x 32"h x 21"l
Weight (pressure washer)1000 lbs
Weight (extractor)90 lbs

Parts List

PARTS LIST

hard surface cleaner, hard surface cleaners

19" Diameter Motorized Spinner 1
25' Solution Hose (not shown) 1
14.5" Extraction Squeegee Wand 1
50' Vacuum Hose 1
50' Dump Hose 1
3' Durable Trigger Wand with 4 Nozzles 1
50' Steam Hose 1

Brochure

Go For Versatile, Gasoline-Powered Pressure Washer Systems

Cleaning experts in industrial settings understand the significance of using sophisticated gas pressure washer systems to deal with challenging maintenance applications. Only the best hard surface cleaning machines help users accomplish the kind of superior results they expect. Fortunately, leading suppliers now offer a stunning range of high-grade and technologically advanced steam pressure washers specifically designed with industrial applications in mind.

The XTreme Power® HSC 17500 GE from Daimer® is an incredibly versatile hard surface cleaner capable of functioning as several machines. These commercial pressure washers can be used to maintain multiple surfaces, given the pressure levels of 3000 psi, hot water temperatures of up to 210º F, and the powerful 19-inch spinner head. When you need to clean walls, you can easily use the optional 9-inch spinner or optional squeegee wand to accomplish outstanding results. These propane-heated gas pressure washers are each powered by an 18 HP gasoline engine. Unlike hard surface cleaning machines powered by electricity, this gas pressure washer is ideal for use in outdoor areas where electricity may not be easily available.

Pressure washers, such as the XTreme Power® HSC 17500 GE, have tri-mode capabilities, enabling users to utilize the cleaning action of cold water, wet steam and hot water for different applications. High flow rates of 5 gpm and steam temperatures of up to 330ºF make the hard surface cleaner ideal for removing tough dirt buildup from different surfaces. These hard surface cleaners are also great for handling water damage restoration. The powerful sludge extraction capabilities of these hard surface cleaners help extract sludge and water from small and large areas.
