ICE BlastICE BlastICE Blast
Daimer
USD
Daimer
Price: $10,845.00
This product cannot be ordered online.
Please call us at 1-800-471-7157.

Description

Price excludes freight.

Daimer's exclusive motorized spinner features 60% faster cleaning power and
70% better cleaner results than non-motorized spinner systems on the market!

hard floor cleaners, hard floor steam cleaners, hard surface floor cleaners, turbo force

This robust, versatile machine system is actually several machines in one :

1. Powerful Commercial Multi-Surface Portable 1500 PSI Heated Hard Surface Spinner Cleaning Machine. Exceptional spinner cleaning temperatures up to 210º F. Add an Optional 9" Spinner/Wand for Smaller Area Cleaning.

2. Commercial Steam Pressure Washer. 1500 PSI, up to 3 GPM. Pressure Washer Wand Included.

3. Commercial Wall Cleaning System. Using optional Squeegee Wand or optional 9" Spinner for Placement in Hands

4. Commercial Sludge Extractor. Powerful 30 GPM for Water Damage Restoration.

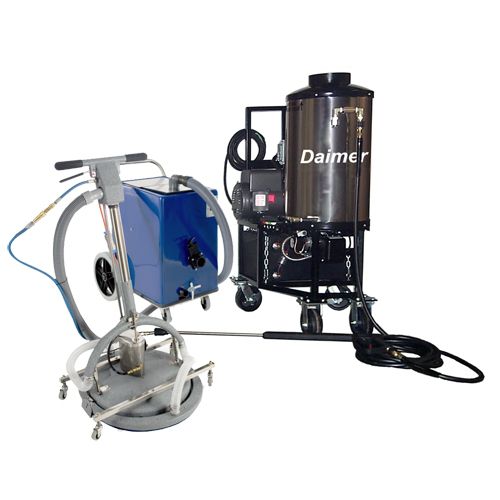

The XTreme Power® HSC 17820 is a heated hard surface cleaner for industrial commercial uses that combines the Super Max™ 12820 electric tri-mode pressure washer and the XTreme Power ® 11500 SE sludge extractor with Daimer's 19" spinner head, resulting in a mobile, outdoor hard surface cleaner with powerful extraction capabilities. This model differs from the 17800 with its higher pressure (1500 psi) and flow rate (3 GPM). This hard surface cleaner can produce spinner cleaning temperatures up to 210º F and steam temperatures up to 330º F.

The 17820 can easily remove oil, grease, dirt, and a host of other substance that can detract from the appearance of concrete, driveways, walkways, sidewalks, and other outdoor surfaces, making it a highly effective, versatile hard surface cleaning solution. The XTreme Power® 11500 SE's extraction power makes it ideal in removing debris laden sludge with solids up to ½" in diameter and in flood damage restoration. The Super Max™ 12820 tri-mode pressure washer is both mobile and trailer mountable. Additionally, both of these machines can be used individually. Combining these two machines makes the XTreme Power® HSC 17820 a highly effective hard surface cleaner, power washer, and sludge extractor ideal for those requiring multifaceted cleaning equipment.

Add an optional 9" spinner head configuration to quickly swap out the 19" spinner tool if you wish to clean surfaces for which the larger tool is inappropriate.

Product Specifications

Extractor System Warranty1 yearSpinner Housing Warranty3 years (limited)Heating Unit (Pressure Washer) Warranty1 yearSpinner System Warranty1 Year Parts & LaborWater Pump Warranty3 years (limited)
Pressure1500 psi
Flow Rate3 GPM
Temperature Optionscold, hot & wet steam (steam cannot be used with spinner head)
Temperature (Hot)180ºF - 210ºF
Temperature (Steam)up to 330ºF (not for use with spinner head)
Heating Methodno.1 or no. 2 heating oil; diesel; or kerosene
Propane TankN/A
Heater Exchange Coilheavy duty schedule 80 heating coil
Spinner Diameter19 inches
Spinner Length46 inches
Spinner RPM1000 rpm
Standard Power Method (pressure washer)electric: 220V-240V, single phase, 60 Hz
Optional Power Methods (pressure washer)(call for pricing) 220V-240V, single phase, 50 Hz; 220V-240V, three phase, 50 or 60 Hz; & 440V, three phase, 50 or 60 Hz
Motor Size (pressure washer)heavy-duty 3 HP - NEMA
Ignition Systemelectronic direct spark
Operating Timecontinuous use
Pump Drive Methoddirect drive
Continuous Water FeedYes. Connect hose from water line directly to pressure washer.
Recovery Tank Size10 gallons
Automatic DumpYes - Auto dump can be turned off if not required.
Dumping Capacity30 gallons/minute
Air Flow212 cfm (cubic feet/minute)
Water Lift147"
Motor (extractor)Two - 3 stage vacuum motors
Power (extractor)electric: 120V
Heater Response Timeconverts cold water to hot water in approximately 30 seconds
Chemical Infusionyes, high pressure injection
Vacuum Hose50' hose included
Dump Hose50' hose included
Steam Hose50' high pressure steam hose
Pressure Nozzles0º (blast), 15º, 25º, 40º, steam nozzles
Pressure Wanddurable 3' trigger wand with quick disconnect
Squeegee Wand14.5" extraction squeegee wand
Optional Wands12" squeegee wand with 4 jets; 18" squeegee wand with 6 internal jets; & 9" motorized spinner
Housing (pressure washer)stainless steel and powder-coated, high gloss, chip/chemical resistant
Housing (extractor)heavy duty fiber composite
Color (pressure washer)black and silver
Color (extractor)blue or red
Dimensions (pressure washer)25"w. x 32"d. x 42"h.
Dimensions (extractor)16"w x 32"h x 21"l
Weight (pressure washer)475 lbs
Weight (extractor)90 lbs

Parts List

PARTS LIST

hard surface cleaner, hard surface cleaners

19" Diameter Motorized Spinner
1
25' Solution Hose (not shown)
1
14.5" Extraction Squeegee Wand
1
50' Vacuum Hose
1
50' Dump Hose
1
3' Durable Trigger Wand with 4 Nozzles
1
50' Steam Hose
1

Brochure

The New-Age Floor Cleaner Machines For Efficient Cleaning!

If you expect to accomplish just more than floor maintenance with your floor cleaning equipment, then it is high time you learnt the benefits of using the latest versions from leading distributors. Here is a look at one powerful and complex floor washing system designed for industrial applications.

The XTreme Power® HSC 17820, available from Daimer®, is an advanced hard floor cleaner that scores high in terms of versatility. This floor cleaning equipment is an unbelievable combination of a multi-surface cleaner, power wash system, wall cleaner, and sludge extractor. As pressure washers, these machines possess tri-mode capabilities, pressure levels of 1500 psi, and flow rates of 3 gpm. The XTreme Power® HSC 17820 generates hot water at temperatures of up to 210ºF and steam at temperatures as high as 330ºF.

The construction of floor steam cleaners must be rugged enough to survive the challenging conditions in industrial environments. For this reason, tile grout cleaners, such as the XTreme Power® HSC 17820, are made of high-grade housing materials. While the extractors feature a housing of tough fiber composite, the steam pressure washers are housed in chip resistant stainless steel.

As multi-surface hard floor cleaners, the XTreme Power® HSC 17820 features a 19-inch spinner head that rotates at a rate of 1000 rpm to offer powerful cleaning capabilities. Simply replace this 19-inch spinner with the optional 9-inch spinner and the hard surface cleaner is ready to work as a commercial wall cleaning system. To cater to international cleaning applications, these hard surface cleaners are available with different optional power methods in addition to the standard power method of 220V-240V, single phase, 60 Hz.
