Daimer
125829461
USD
Daimer
Price Call to order
$10,946.00 1-800-471-7157

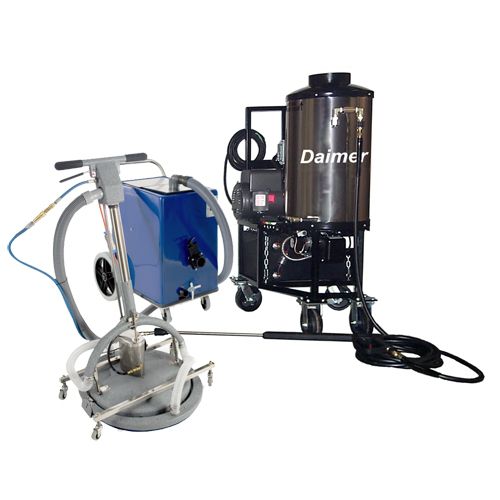

The XTreme Power® HSC 17840 is a heated industrial commercial spinner hard surface cleaner that combines the Super Max™ 12840 mobile, electric tri-mode pressure washer and the XTreme Power® 11500 SE sludge extractor with Daimer's 19" spinner head. The result is a versatile outdoor hard surface cleaner with higher flow rate (4 GPM) and pressure (2000 psi) than the 17800 and 17820 models, but the same effective extraction capabilities.

Have a question about this item?
Contact us and a sales representative would be glad to help!

Description

Price excludes freight.

Daimer's exclusive motorized spinner features 60% faster cleaning power and
70% better cleaner results than non-motorized spinner systems on the market!

hard floor cleaners, hard floor steam cleaners, hard surface floor cleaners, turbo force

This robust, versatile machine system is actually several machines in one :

1. Powerful Commercial Multi-Surface Portable 2000 PSI Heated Hard Surface Spinner Cleaning Machine. Exceptional spinner cleaning temperatures up to 210º F. Add an Optional 9" Spinner/Wand for Smaller Area Cleaning.

2. Commercial Steam Pressure Washer. 2000 PSI, up to 4 GPM. Pressure Washer Wand Included.

3. Commercial Wall Cleaning System. Using optional Squeegee Wand or optional 9" Spinner for Placement in Hands

4. Commercial Sludge Extractor. Powerful 30 GPM for Water Damage Restoration.

The XTreme Power® HSC 17840 is a heated industrial commercial spinner hard surface cleaner that combines the Super Max™ 12840 mobile, electric tri-mode pressure washer and the XTreme Power® 11500 SE sludge extractor with Daimer's 19" spinner head. The resulting multifaceted hard surface cleaner is an ideal mobile solution for removing oil, grease, dirt, and a host of other substances that detract from the appearance of concrete, driveways, sidewalks, walkways, and numerous other outdoor surfaces.

The XTreme Power® HSC 17840 has a powerfully higher pressure (2000 psi) and flow rate (4 GPM) than the 17820 , and still upholds the strong extraction capabilities common to all models. The spinner cleaning temperatures reach 210º F with the steam temperatures reaching 330º F. Additionally, the Super Max12840 can be used independently as a tri-mode pressure washer and the XTreme Power® 11500 SE can be used independently to remove debris laden sludge up to 1/2" in diameter with a dumping capacity of 30 GPM. This makes the XTreme Power® HSC 17840 the ideal, versatile machine with its abilities to work as a hard surface cleaner, tri-mode pressure washer, and sludge extraction. This flexibility also makes the 17840 the perfect tool for flood damage restoration. Please see the individual product pages for detailed specs regarding the Super Max™ 12840 and the XTreme Power® 11500 SE.

Add an optional 9" spinner head configuration to quickly swap out the 19" spinner tool if you wish to clean surfaces for which the larger tool is inappropriate.

Product Specifications

Extractor System Warranty1 yearSpinner Housing Warranty3 years (limited)Heating Unit (Pressure Washer) Warranty1 yearSpinner System Warranty1 Year Parts & LaborWater Pump Warranty3 years (limited)
Pressure2000 psi
Flow Rate4 GPM
Temperature Optionscold, hot & wet steam (steam cannot be used with spinner head)
Temperature (Hot)180ºF - 210ºF
Temperature (Steam)up to 330ºF (not for use with spinner head)
Heating Methodno.1 or no. 2 heating oil; diesel; or kerosene
Propane TankN/A
Heater Exchange Coilheavy duty schedule 80 heating coil
Spinner Diameter19 inches
Spinner Length46 inches
Spinner RPM1000 rpm
Standard Power Method (pressure washer)electric: 220V-240V, single phase, 60 Hz
Optional Power Methods (pressure washer)(call for pricing) 220V-240V, single phase, 50 Hz; 220V-240V, three phase, 50 or 60 Hz; & 440V, three phase, 50 or 60 Hz
Motor Size (pressure washer)heavy duty 5.0 HP - NEMA
Ignition Systemelectronic direct spark
Operating Timecontinuous use
Pump Drive Methoddirect drive
Continuous Water FeedYes. Connect hose from water line directly to pressure washer.
Recovery Tank Size10 gallons
Automatic DumpYes - Auto dump can be turned off if not required.
Dumping Capacity30 gallons/minute
Air Flow212 cfm (cubic feet/minute)
Water Lift147"
Motor (extractor)Two - 3 stage vacuum motors
Power (extractor)electric: 120V
Heater Response Timeconverts cold water to hot water in approximately 30 seconds
Chemical Infusionyes, high pressure injection
Vacuum Hose50' hose included
Dump Hose50' hose included
Steam Hose50' high pressure steam hose
Pressure Nozzles0º (blast), 15º, 25º, 40º, steam nozzles
Pressure Wanddurable 3' trigger wand with quick disconnect
Squeegee Wand14.5" extraction squeegee wand
Optional Wands12" squeegee wand with 4 jets; 18" squeegee wand with 6 internal jets; & 9" motorized spinner
Housing (pressure washer)stainless steel and powder-coated, high gloss, chip/chemical resistant
Housing (extractor)heavy duty fiber composite
Color (pressure washer)black and silver
Color (extractor)blue or red
Dimensions (pressure washer)25"w. x 32"d. x 42"h.
Dimensions (extractor)16"w x 32"h x 21"l
Weight (pressure washer)575 lbs
Weight (extractor)90 lbs

Parts List

PARTS LIST

hard surface cleaner, hard surface cleaners

19" Diameter Motorized Spinner 1
25' Solution Hose (not shown) 1
14.5" Extraction Squeegee Wand 1
50' Vacuum Hose 1
50' Dump Hose 1
3' Durable Trigger Wand with 4 Nozzles 1
50' Steam Hose 1

Brochure

One Floor Steamer: Multiple Uses

Cleaning requirements in industrial environments are often varied. While cleaning experts may sometimes need the power of hard floor cleaners for concrete maintenance, they may need the water extraction capabilities of sludge extractors at other times. It is not practical to buy a different hard surface cleaner system for each application. For this reason, you must check out the versatile floor cleaning machines available from leading brands.

The XTreme Power® HSC 17840, available from Daimer®, is an industrial version of a hard floor cleaner that scores high in terms of mobility, versatility, and cleaning power. Featuring pressure levels of 2000 psi and flow rates of 4 gpm, these tile grout cleaners are capable of eliminating dirt buildup, grease and oil deposits from hard surfaces, such as floors, walkways, driveways, and concrete. To ensure that oil and grease deposits are completely dissolved, these tri-mode steam pressure washers generate wet steam at temperatures as high as 330ºF.

Unlike conventional floor steam cleaners, the XTreme Power® HSC 17840 offers the functions of a sludge extractor with a dumping capacity of 30 gpm. As a result, these hard surface cleaners help extract sludge that contains debris of up to half an inch in diameter and are great for water damage restoration following floods.

Powered by a robust 5.0 HP NEMA engine, the XTreme Power® HSC 17840 features heavy-duty, schedule 80 heating coils that convert cold water into hot water at temperatures of up to 210ºF in just 30 seconds. These electric-powered pressure washers use diesel or kerosene for heating. To enable continuous operation for extended periods, these floor cleaning machines can be directly connected to a hose line.
