Description





Price excludes freight.
Free Skid Configuration for Trailer Mounting

View This Video - Discover Daimer's Absolutely

Outstanding Wet Steam Degreasing Capabilities

Loading the player…



pressure washer, pressure washers

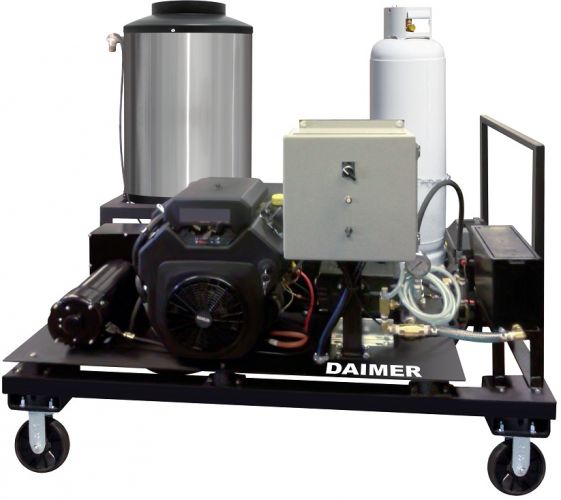

The Super Max™ 12400 PE is a tri-mode system that can be independently used as a cold water pressure washer, hot water pressure washer, or steam pressure washer. The machine offers complete autonomy of cords to a power source as in the case of an electrically powered washers.

The 12400 PE is powered by a 20 HP propane engine , and offers a flow rate of 4 GPM at a pressure level of 3000 psi. The system is ideal for demanding indoor as well as outdoor applications. Two gun operation is an available option on the 12400 PE. Additionally, the system is ideal for those customers that use propane regularly or simply prefer propane to gasoline.

Daimer offers pressure washers in a variety of power configurations for worldwide requirements. The following are available: 110-120V, 208V, 220-240V, 380V, 415V, 440-480V, and 575V; single and three phase; 50 or 60 Hz. Please contact us for pricing.

Product Specifications

Warranty1 year (limited)Water Pump Warranty5 years (limited)Motor/Engine Warranty2 years (limited)
Pressure3000 PSI
Flow Rate4 GPM
Temp. Optionscold, hot, wet steam
Steam Temp.up to 330ºF
Hot Water Temp.180ºF - 210ºF
Standard Power Methodpropane (LPG) engine (50lb empty tank included)
Optional Power MethodsN/A
Motor Sizeheavy duty 20.0 HP propane engine
Minimum Generator SizeN/A
Gasoline/Diesel Fuel CapacityN/A
Ignition Systemelectronic direct spark
Power CordsN/A
Heating Methodpropane (LPG)
Heating Fuel Capacity50 lb. empty tank included
Heater Exchange Coilheavy duty schedule 80 heating coil
Heater Response Timeconverts cold water to hot water in approximately 30 seconds
Operating Timecontinuous use
Pump Drive Methodshaft drive
Chemical Infusionyes, high pressure injection
Wand Includeddurable 3' trigger wand with quick disconnect
Nozzles Standard0º (blast), 15º, 25º, 40º, steam nozzles
Pressure Hose50' high pressure steam hose
Pressure Hose Optionsadditional/customizable lengths available
Dimensions57"w. x 41"d. x 58"h.
Weight1000 lbs
Housingsteel - powder-coated, high gloss, chip/chemical resistant
Colorred and white
Phosphatizing SystemN/A- see Super Max 12500 PE AF
Acid/Phosphate Chemical FeedN/A
Trailer Mountyes - when wheels are removed
Multi-Gun Operationoptional - call for pricing
Wall MountN/A
Wet Sandblasting Systemoptional - call for pricing
Canonical URLhttps://www.daimer.com/pressure-washers/super-max-12400pe.htm
Exclude From ConfiguratorYes
Applications

  • Agricultural and Farm Equipment Cleaning
  • Airports Steam Cleaners
  • Brick Cleaning
  • Bus Washing
  • Coils, Condensers Related Cleaning
  • Concrete Cleaning
  • Construction Equipment Cleaning
  • Conveyor Belt Cleaning - Non-Food/Beverage
  • Degreasing Industrial Equipment
  • Drum Cleaning
  • Equipment Cleaning - Non-Food/Beverage Industry
  • Farm Equipment Cleaning
  • Floor and Wall Cleaning - Foodservice Kitchens
  • Forklift Truck Cleaning
  • Heat Exchangers Cleaning
  • Heavy Equipment Cleaning
  • Hood Duct Cleaning - Foodservice Kitchens
  • Ice Dam Removal - Gutters
  • Industrial Equipment Degreasing
  • Kitchen Cleaning - Foodservice Cleaning Contractors
  • Kitchen Cleaning - Foodservice Operators
  • Machine Shop Equipment Degreasing
  • Metal Degreasing
  • Metal Working Equipment Cleaning
  • Oil Rig Platform Cleaning
  • Paint Removal (Small Areas)
  • Parking Lot Cleaning (Concrete)
  • Parts Washing
  • Rust Removal (Small Areas)
  • Shower Cleaning - Commercial
  • Sidewalk Cleaning (Concrete)
  • Supermarket Carts Cleaning Disinfection
  • Swimming Pool Tile Cleaning
  • Truck Washing
  • Walls Floors Degreasing
  • Wheelchair Cleaning

Parts List

PARTS LIST

Standard Parts / Quantity

3' Durable Trigger Wand with Quick Disconnect
1
0º (Blast) Nozzle (not shown)
1
15º Nozzle (not shown)
1
25º Nozzle (not shown)
1
40º Nozzle (not shown)
1
Steam Nozzle (not shown)
1
50' High Pressure Steam Hose (not shown)
1

Video

Applications

  • Agricultural and Farm Equipment Cleaning
  • Airports Steam Cleaners
  • Brick Cleaning
  • Bus Washing
  • Coils, Condensers Related Cleaning
  • Concrete Cleaning
  • Construction Equipment Cleaning
  • Conveyor Belt Cleaning - Non-Food/Beverage
  • Degreasing Industrial Equipment
  • Drum Cleaning
  • Equipment Cleaning - Non-Food/Beverage Industry
  • Farm Equipment Cleaning
  • Floor and Wall Cleaning - Foodservice Kitchens
  • Forklift Truck Cleaning
  • Heat Exchangers Cleaning
  • Heavy Equipment Cleaning
  • Hood Duct Cleaning - Foodservice Kitchens
  • Ice Dam Removal - Gutters
  • Industrial Equipment Degreasing
  • Kitchen Cleaning - Foodservice Cleaning Contractors
  • Kitchen Cleaning - Foodservice Operators
  • Machine Shop Equipment Degreasing
  • Metal Degreasing
  • Metal Working Equipment Cleaning
  • Oil Rig Platform Cleaning
  • Paint Removal (Small Areas)
  • Parking Lot Cleaning (Concrete)
  • Parts Washing
  • Rust Removal (Small Areas)
  • Shower Cleaning - Commercial
  • Sidewalk Cleaning (Concrete)
  • Supermarket Carts Cleaning Disinfection
  • Swimming Pool Tile Cleaning
  • Truck Washing
  • Walls Floors Degreasing
  • Wheelchair Cleaning

Truck Mount Pressure Washers Are A Great Asset For Outdoor Cleaning Jobs

Power and temperature are two indispensable features needed to meet the demands of challenging industrial and commercial cleaning applications. The Super Max™ line of multi-function truck mount pressure washers from Daimer® is fast emerging as the industry’s favorite because these machines look more than competent to meet these cleaning challenges effectively. Truck mount pressure washer machines from Daimer® are routinely used for a wide range of outdoor cleaning applications.

The Super Max™ 12400 PE is a powerful truck mount pressure washer designed for tough industrial cleaning jobs. The tri-mode cleaning system can be used as a cold water pressure washer, hot water pressure washer, or steam water pressure washer independently. As in case of electric powered pressure washer machines, this propane-powered machine too offers a complete autonomy of cords to a power source.

The powerful cleaning action of these popular truck mount pressure washers comes from their 20 HP propane engine. The high flow rate of 4 gpm at a fantastic pressure level of 3000 psi makes it the perfect hi-tech cleaning machine for all your indoor and outdoor cleaning applications. If you prefer propane to gasoline, the Super Max™ 12400 PE is just what you were looking for. With steam temperature capable of reaching as high as 330°F, these can be used as powerful steam pressure washing machines for advanced cleaning of industrial floors and equipment.

The Super Max™ 12400 PE machines can be used as trailer mounted pressure washers when their wheels are removed. These machines are excellent for fleet maintenance jobs due to their mobility. The 50 feet high pressure steam hose available with the machine adds to its cleaning power and convenience of handling.
