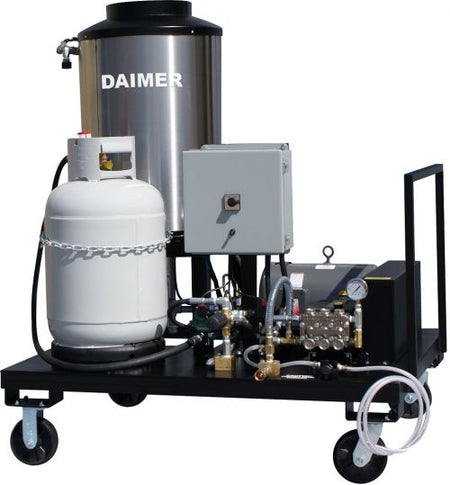

Daimer SUPER MAX 12200 SCW Steam Car Washer

Voltage	Heating Fuel	Price	Call to order
230V, single phase, 60Hz	Propane	$8,042.00	1-800-471-7157

LeasingApply NowPricing As Low As...	$239per month

The Super Max™ 12200 SCW is a powerful auto detailing system, which is powered by electricity and features propane heating system. The ruggedly built steam pressure washer is highly recommended by car wash experts as the perfect equipment for truck washing and bus cleaning.

To accomplish unmatched cleaning results, the pressure washer is empowered with pressure level of 2000 PSI, flow rates of 4 GPM, and steam temperatures as high as 330ºF.
High performance and reliability are other highlights of the Super Max™ 12200 SCW that come with a heavy-duty 5 HP NEMA engine.
In addition to the standard power methods of 220V-240V, single phase, 60 Hz, the auto detailing machine is also available with different optional power ratings.

Have a question about this item?
Contact us and a sales representative would be glad to help!

Description

Price excludes freight.
Free Skid Configuration for Trailer Mounting

View This Video - Discover Daimer's Absolutely

Outstanding Wet Steam Degreasing Capabilities

Loading the player…

source

The Super Max™ 12200 SCW is a ruggedly constructed, high performance pressure washer designed to tackle commercial auto detailing applications. The electric powered pressure washer uses propane for heating.

The power cleaner, featuring a flow rate of 4 GPM and pressure level of 2000 PSI, easily accomplishes superb cleaning results.
Extremely tough degreasing or cleaning applications can be managed by switching to the wet steam mode. It creates temperatures reaching a high of 330ºF. The powerful heater exchange coils help enhance productivity and efficiency by heating water in merely less than a minute.
To ensure maximum reliability in the long run, the machine is empowered with a rugged 5 HP NEMA engine, which is durable enough to withstand rough commercial cleaning applications.
The standard power method of the Super Max™ 12200 SCW is 220V-240V, single phase, 60 Hz. Global customers can also choose from optional power methods.

Product Specifications

Warranty1 year (limited)Water Pump Warranty5 years (limited)Motor/Engine Warranty2 years (limited)

Pressure	2000 psi
Flow Rate	4 GPM
Temp. Options	cold, hot, wet steam
Steam Temp.	up to 330ºF
Hot Water Temp.	180ºF - 210ºF
Standard Power Method	electric: 220V-240V, single phase, 60 Hz
Optional Power Methods	(call for pricing) 220V-240V, single phase, 50 Hz; 220V-240V three phase, 50 or 60 Hz; & 440V, three phase, 50 or 60 Hz
Motor Size	heavy duty 5.0 HP - NEMA
Minimum Generator Size	15000 watts
Gasoline/Diesel Fuel Capacity	N/A
Ignition System	electronic direct spark
Power Cords	1
Heating Method	propane
Heating Fuel Capacity	50 lb. empty tank included
Heater Exchange Coil	heavy duty schedule 80 heating coil
Heater Response Time	converts cold to hot water in approximately 30 seconds
Operating Time	continuous use
Pump Drive Method	shaft drive
Chemical Infusion	yes, high pressure injection
Wand Included	durable 3' trigger wand with quick disconnect
Nozzles Standard	0º (blast), 15º, 25º, 40º, steam nozzles
Pressure Hose	50' high pressure steam hose
Pressure Hose Options	additional/customizable lengths available
Dimensions	48"w. x 41"d. x 50"h.
Weight	900 lbs
Housing	steel - powder-coated, high gloss, chip/chemical resistant
Color	red and white
Phosphatizing System	N/A- see Super Max™ 12200 AF
Acid/Phosphate Chemical Feed	N/A
Trailer Mount	wheels removed - same price
Multi-Gun Operation	optional - call for pricing
Wall Mount	N/A
Wet Sandblasting System	optional - call for pricing

Parts List

PARTS LIST

Standard Parts / Quantity

3' Durable Trigger Wand with Quick Disconnect

0º (Blast) Nozzle (not shown)

15º Nozzle (not shown)

25º Nozzle (not shown)

40º Nozzle (not shown)

Steam Nozzle (not shown)

50' High Pressure Steam Hose (not shown)
