VoltageHeating FuelPrice Call to order
230V, three phase, 60HzPropane$14,284.00 1-800-471-7157
  • Pressure: 3000 psi
  • Flow Rate: 5 GPM
  • Power Method: Electric motor
  • Heating Method: Propane
  • Steam Temperatures: Up to 330ºF

Have a question about this item?
Contact us and a sales representative would be glad to help!

Description



Price excludes freight.
Free Skid Configuration for Trailer Mounting

View This Video - Discover Daimer's Absolutely

Outstanding Wet Steam Degreasing Capabilities

Loading the player…



truck mouint pressure washer, steam pressure washer

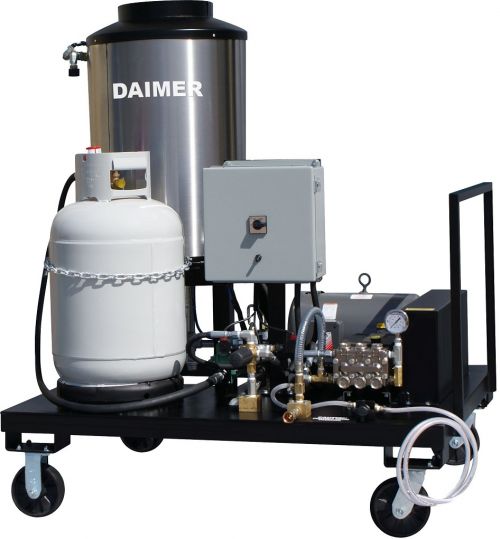

The Super Max™ 12300 tri-mode system can be used independently as a cold water pressure washer, hot water pressure washer, or steam pressure washer. This electric pressure washer with a propane heating system offers the same portability and versatility as the Super Max ™12200 (optional two gun operation and the ability to be used as a trailer mounted pressure washer) with a higher flow rate (5 GPM) and pressure (3000 psi) than the Super Max™ 12200.This model is ideal for those desiring the features of the 12200, but with additional power for more difficult applications.

Daimer offers pressure washers in a variety of power configurations for worldwide requirements. The following are available: 110-120V, 208V, 220-240V, 380V, 415V, 440-480V, and 575V; single and three phase; 50 or 60 Hz. Please contact us for pricing.

Product Specifications

Warranty1 year (limited)Water Pump Warranty5 years (limited)Motor/Engine Warranty2 years (limited)
Pressure3000 psi
Flow Rate5 GPM
Temp. Optionscold, hot, wet steam
Steam Temp.up to 330ºF
Hot Water Temp.180ºF - 210ºF
Standard Power Methodelectric: 220V-240V, three phase, 60 Hz
Optional Power Methods(call for pricing) 220V-240V three phase, 50 or 60 Hz; & 440V, three phase, 50 or 60 Hz
Motor Sizeheavy duty 10.0 HP - NEMA
Minimum Generator SizeContact Daimer
Gasoline/Diesel Fuel CapacityN/A
Ignition Systemelectronic direct spark
Power Cords1
Heating Methodpropane (LPG)
Heating Fuel Capacity50 lb. empty tank included
Heater Exchange Coilheavy duty schedule 80 heating coil
Heater Response Timeconverts cold to hold water in approximately 30 seconds
Operating Timecontinuous use
Pump Drive Methodshaft drive
Chemical Infusionyes, high pressure injection
Wand Includeddurable 3' trigger wand with quick disconnect
Nozzles Standard0º (blast), 15º, 25º, 40º, steam nozzles
Pressure Hose50' high pressure steam hose
Pressure Hose Optionsadditional/customizable lengths available
Dimensions48"w. x 41"d. x 58"h.
Weight900 lbs
Housingsteel - powder-coated, high gloss, chip/chemical resistant
Colorred and white
Phosphatizing SystemN/A- see Super Max 12300 AF
Acid/Phosphate Chemical FeedN/A
Trailer Mountwheels removed - same price
Multi-Gun Operationoptional - call for pricing
Wall MountN/A
Wet Sandblasting Systemoptional - call for pricing
Applications



  • Agricultural and Farm Equipment Cleaning
  • Airports Steam Cleaners
  • Brick Cleaning
  • Bus Washing
  • Coils, Condensers Related Cleaning
  • Concrete Cleaning
  • Construction Equipment Cleaning
  • Conveyor Belt Cleaning - Non-Food/Beverage
  • Degreasing Industrial Equipment
  • Drum Cleaning
  • Equipment Cleaning - Non-Food/Beverage Industry
  • Farm Equipment Cleaning
  • Floor and Wall Cleaning - Foodservice Kitchens
  • Forklift Truck Cleaning
  • Heat Exchangers Cleaning
  • Heavy Equipment Cleaning
  • Hood Duct Cleaning - Foodservice Kitchens
  • Ice Dam Removal - Gutters
  • Industrial Equipment Degreasing
  • Kitchen Cleaning - Foodservice Cleaning Contractors
  • Kitchen Cleaning - Foodservice Operators
  • Machine Shop Equipment Degreasing
  • Metal Degreasing
  • Metal Working Equipment Cleaning
  • Oil Rig Platform Cleaning
  • Paint Removal (Small Areas)
  • Parking Lot Cleaning (Concrete)
  • Parts Washing
  • Rust Removal (Small Areas)
  • Shower Cleaning - Commercial
  • Sidewalk Cleaning (Concrete)
  • Supermarket Carts Cleaning Disinfection
  • Swimming Pool Tile Cleaning
  • Truck Washing
  • Walls Floors Degreasing
  • Wheelchair Cleaning



Parts List

PARTS LIST

Standard Parts / Quantity

3' Durable Trigger Wand with Quick Disconnect 1
0º (Blast) Nozzle (not shown) 1
15º Nozzle (not shown) 1
25º Nozzle (not shown) 1
40º Nozzle (not shown) 1
Steam Nozzle (not shown) 1
50' High Pressure Steam Hose (not shown) 1

Video

Brochure

Applications



  • Agricultural and Farm Equipment Cleaning
  • Airports Steam Cleaners
  • Brick Cleaning
  • Bus Washing
  • Coils, Condensers Related Cleaning
  • Concrete Cleaning
  • Construction Equipment Cleaning
  • Conveyor Belt Cleaning - Non-Food/Beverage
  • Degreasing Industrial Equipment
  • Drum Cleaning
  • Equipment Cleaning - Non-Food/Beverage Industry
  • Farm Equipment Cleaning
  • Floor and Wall Cleaning - Foodservice Kitchens
  • Forklift Truck Cleaning
  • Heat Exchangers Cleaning
  • Heavy Equipment Cleaning
  • Hood Duct Cleaning - Foodservice Kitchens
  • Ice Dam Removal - Gutters
  • Industrial Equipment Degreasing
  • Kitchen Cleaning - Foodservice Cleaning Contractors
  • Kitchen Cleaning - Foodservice Operators
  • Machine Shop Equipment Degreasing
  • Metal Degreasing
  • Metal Working Equipment Cleaning
  • Oil Rig Platform Cleaning
  • Paint Removal (Small Areas)
  • Parking Lot Cleaning (Concrete)
  • Parts Washing
  • Rust Removal (Small Areas)
  • Shower Cleaning - Commercial
  • Sidewalk Cleaning (Concrete)
  • Supermarket Carts Cleaning Disinfection
  • Swimming Pool Tile Cleaning
  • Truck Washing
  • Walls Floors Degreasing
  • Wheelchair Cleaning



Choosing the Best Pressure Washers for Advanced Cleaning Solutions

The best pressure washers are ones which can be used for a variety of cleaning applications. Electric pressure washers get their power from an electric source, but may still require fuel to heat the water. This can often confuse people buying cleaning machines, making them wonder about which would be the best pressure washer for their specific cleaning requirements.

Daimer®, the leader in supplying advanced cleaning machines for a variety of cleaning applications, now offers one of the best pressure washers in their Super Max™ 12300 tri-mode system. These machines can be used as a cold water pressure machine, hot water pressure system, or a steam pressure machine.

Electric pressure washers from Daimer® come with a propane heating system. They offer better portability and can be used for various cleaning challenges. As high pressure washers with pressure output of 3000 psi and high flow rate of 5 gpm, they can blast away debris, dirt, and grime from any hard surface.

The best pressure washer when used as a steam cleaning machine delivers steam output reaching up to 330°F. These machines are ideal for melting oil and grease stains from industrial flooring. High pressure washers from Daimer® are known for their powerful cleaning action, consistent performance, and durability.
