Daimer
SM-12800-116DH-AST
USD
Daimer
VoltageHeating FuelPrice Call to order
120V, 60HzDiesel$8,765.00 1-800-471-7157

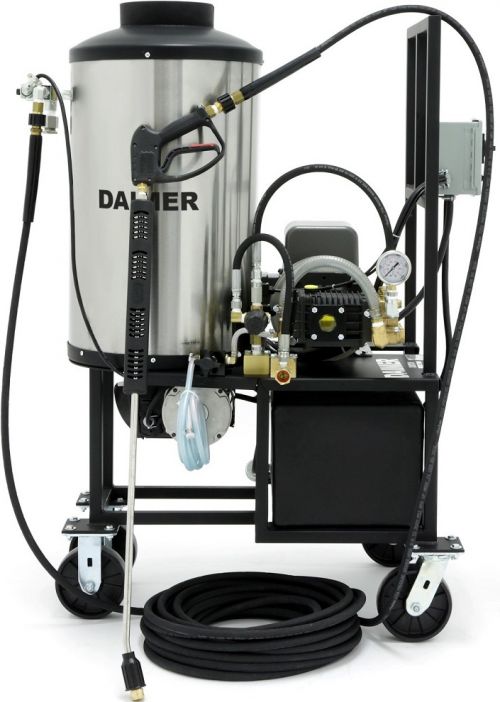

The Super Max™ 12800 AST® is a mobile, trailer mountable, commercial industrial, electric tri-mode steam pressure washer featuring Daimer's exclusive AST® (Automatic Shutoff Technology ). This functional tri-mode pressure washer machine can be used individually as a cold water pressure washer, hot water pressure washer, and steam pressure washer; offering a flow rate of 2 GPM at a pressure level of 1000 psi and high temperatures up to 330°F.

Have a question about this item?
Contact us and a sales representative would be glad to help!

Description





Price excludes freight.

View This Video - Discover Daimer's Absolutely

Outstanding Wet Steam Degreasing Capabilities

Loading the player…



truck mount pressure washer, steam pressure washer

The Super Max™ 12800 is a mobile, commercial/industrial, tri-mode electric pressure washer that can be used individually as a cold water pressure washer, hot water pressure washer, or steam pressure washer. This versatile electric pressure washer machine features the world's only, elite AST® (Automatic Shutoff Technology ). This exclusive, beneficial function reduces the wear on the pump and other components, thus extending the life of the 12800 AST®.

This multi-faceted pressure washer equipment is powered by a 1.5 HP NEMA engine, offering a flow rate of 2 GPM at a pressure level of 1000 psi; making the Super Max® 12800 AST® ideal for a variety of commercial/industrial applications requiring a durable, mobile, comprehensive electric pressure washer machine with moderate power. Additionally, the 12800 AST® offers users the option of choosing no. 1 or no. 2 heating oil, diesel, or kerosene heating. Adding to the versatility of these tri-mode pressure washer machines are their trailer mounting capabilities and the ability to be purchased with additional two gun operation.

What is AST® Technology?

AST® is a proprietary system that works as follows: When AST® is engaged, it shuts off the pump and motor after 30 seconds if the gun is not in use and water is not flowing through the system. When the pressure washer operator pulls the trigger again, the motor and pump go on. This feature is particularly useful for applications in which the pressure washer operator is using a long hose, say more than 25 feet, and it is not practical for them to go back and forth to the machine to turn it off during every break.

The pumps and motors in conventional electric pressure washers remain active whether or not water is flowing through the system. As a result the user has to keep walking back to the system to shut it off or risk damaging the motor and pump.

Daimer offers pressure washers in a variety of power configurations for worldwide requirements. The following are available: 110-120V, 208V, 220-240V, 380V, 415V, 440-480V, and 575V; single and three phase; 50 or 60 Hz. Please contact us for pricing.

Product Specifications

Warranty1 year (limited)Water Pump Warranty5 years (limited)Motor/Engine Warranty2 years (limited)
Pressure1000 psi
Flow Rate2 GPM
Temp. Optionscold, hot, wet steam
Steam Temp.up to 330ºF
Hot Water Temp.180ºF - 210ºF
Standard Power Methodelectric: 110V-20V, single phase, 60 Hz
Optional Power Methods(call for pricing) 110V-120V, single phase, 50 Hz; 220V-240V, single phase, 50 or 60 Hz; 220V-240V three phase, 50 or 60 Hz; & 440V, three phase, 50 or 60 Hz
Motor Sizeheavy duty 1.5 HP - NEMA
Minimum Generator Size5000 watts
Gasoline/Diesel Fuel CapacityN/A
Ignition Systemelectronic direct spark
Power Cords1
Heating Methodno.1 or no. 2 heating oil; diesel; or kerosene
Heating Fuel Capacity9 gallons
Heater Exchange Coilheavy duty schedule 80 heating coil
Heater Response Timeconverts cold water to hot water in approximately 30 seconds
Operating Timecontinuous use
Pump Drive Methoddirect drive
Chemical Infusionyes, high pressure injection
Wand Includeddurable 3' trigger wand with quick disconnect
Nozzles Standard0º (blast), 15º, 25º, 40º, steam nozzles
Pressure Hose50' high pressure steam hose
Pressure Hose Optionsadditional/customizable lengths available
Dimensions25"w. x 32"d. x 42"h.
Weight450 lbs
Housingstainless steel and powder-coated, high gloss, chip/chemical resistant
Colorblack and silver
Phosphatizing SystemN/A- see Super Max 12800 AF
Acid/Phosphate Chemical FeedN/A
Trailer Mountyes - when wheels are removed
Multi-Gun Operationoptional - call for pricing
Wall MountN/A
Wet Sandblasting Systemoptional - call for pricing

Parts List

PARTS LIST

Standard Parts / Quantity

3' Durable Trigger Wand with Quick Disconnect 1
0º (Blast) Nozzle (not shown) 1
15º Nozzle (not shown) 1
25º Nozzle (not shown) 1
40º Nozzle (not shown) 1
Steam Nozzle (not shown) 1
50' High Pressure Steam Hose (not shown) 1

Video

Brochure

Experience the Incredible Power of Pressure Wash Systems

If your maintenance professionals are having a hard time maintaining industrial premises well, then it is high time you introduced them to the incredible cleaning action of industrial pressure washers. Traditional cleaning methods involve eliminating dust and other loose particulate matter from surfaces before using chemicals to dissolve tough dirt buildup. The surfaces will then be scrubbed to completely remove the deposits. The chemicals and other debris will then be washed away with water from a hose line. Obviously, the entire process demands a plenty of time and tremendous effort. For this reason, it will be a great idea to switch to advanced hard surface cleaners, such as high power washers.

The Super Max™ series of pressure washer equipment available from Daimer® are renowned for their durability, efficiency, and ease of operation. For instance, the Super Max™ 12800AST is a high-powered pressure washer notable for its high pressure levels, flow rates, and unique technologies. Pressure levels of 1000 psi and flow rates of 2 gpm endow these hard surface cleaners with unmatched cleaning efficiency.

Tri-mode capabilities of electric pressure washers, such as the Super Max™ 12800AST, enable users to experience the benefits of wet steam, cold water, and hot water pressure washers. To easily dissolve the toughest dirt buildup on different surfaces, these gas pressure washers eject hot water at temperatures ranging from 180ºF to 210ºF and steam at temperatures of up to 330ºF. Powered by a heavy-duty 1.5 HP - NEMA engine, this trailer mounted pressure washer also features two-gun configurations, a 50 feet high pressure steam hose, and a durable 3 feet trigger wand with quick disconnect for added efficiency.
