VoltageHeating FuelPrice Call to order
230V, single phase, 60HzNo.1 or No.2 Heating Oil$6,775.00 1-800-471-7157

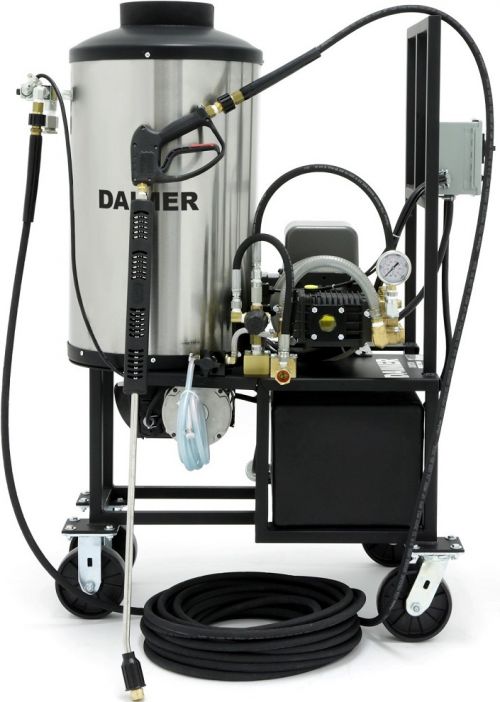

The Super Max™ 12840 AF is an industrial/commercial electric pressure washer capable of being used independently as a cold or hot water pressure washer. With hot water temperatures reaching 180°F, pressure levels reaching 2000 psi, and a flow rate of 4 GPM this pressure washer equipment is the ideal versatile solution for demanding industrial applications. Adding to its versatility is the powerful phosphatizing system for the pre-treating of metal surfaces that comes standard with the 12840 AF.

Have a question about this item?
Contact us and a sales representative would be glad to help!



Price excludes freight.

View This Video - Discover Daimer's Absolutely

Outstanding Wet Steam Degreasing Capabilities

Loading the player…

truck mount pressure washer, steam pressure washer

The Super Max12840 AF is an industrial electric pressure washer machine that can be used independently as a cold water or hot water pressure washer and offers a higher flow rate (4 GPM) and pressure (2000 psi) than the 12820 electric powered pressure washer. The 12840 AF is powered by a 5.0 HP NEMA electric engine (230V, single phase, 60Hz is standard with other worldwide power options available-call for pricing).

Adding to the power and versatility of this powerful pressure washer machine is the included phosphatizing system. Using downstream injection, this system can pre-treat metal surfaces to prevent rust and corrosion and to prepare these surfaces for the application of paint primer or powder coating. Daimer uses only the highest quality stainless steel components to ensure the durability of this rugged pressure washer equipment.

The included stainless steel dual lance wand features a one trigger gun and two tubes, one with a high-pressure nozzle and the other with a low-pressure nozzle. The crossover valve controls the flow of water through the nozzle, but not through both at the same time.

This industrial electric pressure washer can also be ordered with either no.1 or no. 2 heating oil, diesel, or kerosene heat. Additional options include the ability to be ordered with 2-gun operation and wheeled configuration for added mobility. This model is ideal for those applications and customers that would benefit from greater performance than that offered by the 12820 AF.

Daimer offers pressure washers in a variety of power configurations for worldwide requirements. The following are available: 110-120V, 208V, 220-240V, 380V, 415V, 440-480V, and 575V; single and three phase; 50 or 60 Hz. Please contact us for pricing.


Product Specifications

Warranty1 year (limited)Water Pump Warranty5 years (limited)Motor/Engine Warranty2 years (limited)
Pressure2000 psi
Flow Rate4 GPM
Temp. Optionscold, hot
Steam Temp.N/A
Hot Water Temp.up to 180ºF
Standard Power Methodelectric: 220V-240V, single phase, 60 Hz
Optional Power Methods(call for pricing) 220V-240V, single phase, 50 Hz; 220V-240V three phase, 50 or 60 Hz; & 440V, three phase, 50 or 60 Hz
Motor Sizeheavy duty 5.0 HP - NEMA
Minimum Generator Size15000 watts
Gasoline/Diesel Fuel CapacityN/A
Ignition Systemelectronic direct spark
Power Cords1
Heating Methodno.1 or no. 2 heating oil; diesel; or kerosene
Heating Fuel Capacity9 gallons
Heater Exchange Coilheavy duty schedule 80 heating coil
Heater Response Timeconverts cold water to hot water in approximately 30 seconds
Operating Timecontinuous use
Pump Drive Methoddirect drive
Chemical Infusionyes, high pressure injection
Wand Includeddual lance wand
Nozzles Standard0º (blast), 15º, 25º, 40º nozzles
Pressure Hose50' high pressure hose
Pressure Hose Optionsadditional/customizable lengths available
Dimensions25"w. x 32"d. x 42"h.
Weight575 lbs
Housingstainless steel and powder-coated, high gloss, chip/chemical resistant
Colorblack and silver
Phosphatizing SystemYes
Acid/Phosphate Chemical Feeddownstream stainless steel injector with chemical proportioning adjustment, mounted at the outlet of heating coil
Trailer Mountwheels removed - same price
Multi-Gun Operationoptional - call for pricing
Wall MountN/A
Wet Sandblasting Systemoptional - call for pricing



Road Maintenance Made Easy With Power Washer Systems

The maintenance of streets, roads, public buildings, sidewalks, and parking lots is one of the most important responsibilities of government agencies. However, the job is not an easy one. To effectively maintain vast areas of roads, public grounds, and parking lots, cleaning professionals must definitely be equipped with advanced cleaning machines, such as industrial pressure washers.

Road cleanup involves elimination of large amounts of dust, dirt, grease, and mud from roads, sidewalks, driveways, and parking areas. Commercial pressure washers eject highly pressurized hot water or cold water that helps blast off the toughest dirt buildup quickly. Using gas pressure washers takes lesser time and effort spent on road maintenance.

Pressure washer equipment that would be perfect for road maintenance applications include the Super Max™12840 AF from Daimer®. Such best electric pressure washers are capable of generating cold water or hot water at pressure levels of 2000 psi and flow rates of 4 gpm. Powered by a 5.0 HP - NEMA engine, these hot water pressure washers come with heavy-duty, schedule 80 heating coils that can convert cold water to hot water at temperatures of up to 180ºF in just 30 seconds. The hot water ejected by this pressure washer equipment helps dissolve grease, oil, and other tough deposits on roads.

Heated by diesel or kerosene, pressure washer machines, such as the Super Max™12840 AF, come with standard power option of 230V, single phase, 60Hz. However, there are other power options available for export requirements. These pressure washers also feature a powerful phosphatizing system. Optional features available with these pressure washers include wheeled configuration and two-gun operation.
