Daimer
SM-12860-216DH-AST
USD
Daimer
VoltageHeating FuelPrice Call to order
230V, three phase, 60HzDiesel$14,195.00 1-800-471-7157

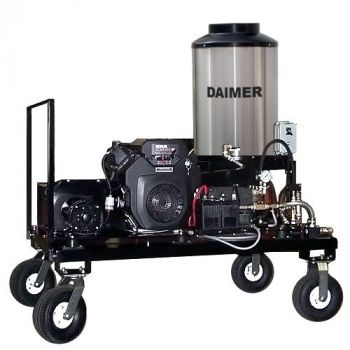

The Super Max™ 12860 AST® ultra-powerful, oil-fired, industrial, tri-mode electric pressure washer offers the highest flow rate (5 GPM) and pressure level (3000 psi) of the AST® pressure washer series, and featuring the same highly-beneficial, Daimer exclusive AST® (Automatic Shutoff Technology®). This versatile tri-mode pressure washer machine can be used individually as a cold water pressure washer, hot water pressure washer, and steam pressure washer with temperatures as high as 330°F.

Have a question about this item?
Contact us and a sales representative would be glad to help!

Description



Price excludes freight.
Free Skid Configuration for Trailer Mounting

View This Video - Discover Daimer's Absolutely

Outstanding Wet Steam Degreasing Capabilities

Loading the player…

commercial pressure washer, industrial pressure washer

pressure washer, pressure washers

The Super Max™ 12860 AST® ultra-powerful, oil heated fired, industrial, tri-mode electric pressure washer offers the highest flow rate (5 GPM) and pressure (3000 psi) in the 12000 AST® pressure washer series, and features the world's only, elite AST® (Automatic Shutoff Technology®). This highly beneficial function reduces the wear and tear on the pump and other components and extends the life of the 12860 AST®.

Powered by a robust 10 HP NEMA engine, this tri-mode pressure washer machine combines power with versatility, as it can be used independently as a cold water pressure washer, hot water pressure washer, and steam pressure washer. The 12860 AST® provides customers with the opportunity to choose either no.1 or no. 2 heating oil, diesel, or kerosene heating. This pressure washer machine can also be purchased with optional two gun operation equipment. Also available as trailer mountable pressure washer equipment, the Super Max™ 12860 AST® is the ultimate mobile solution for industrial facilities requiring an ultra-powerful, portable pressure washer for a wide array of demanding applications.

What is AST® Technology?

AST® is a proprietary system that works as follows: When AST® is engaged, it shuts off the pump and motor after 30 seconds if the gun is not in use and water is not flowing through the system. When the pressure washer operator pulls the trigger again, the motor and pump go on. This feature is particularly useful for applications in which the pressure washer operator is using a long hose, say more than 25 feet, and it is not practical for them to go back and forth to the machine to turn it off during every break.

The pumps and motors in conventional electric pressure washers remain active whether or not water is flowing through the system. As a result the user has to keep walking back to the system to shut it off or risk damaging the motor and pump.

Daimer offers pressure washers in a variety of power configurations for worldwide requirements. The following are available: 110-120V, 208V, 220-240V, 380V, 415V, 440-480V, and 575V; single and three phase; 50 or 60 Hz. Please contact us for pricing.

Product Specifications

Warranty1 year (limited)Water Pump Warranty5 years (limited)Motor/Engine Warranty2 years (limited)
Pressure3000 PSI
Flow Rate5 GPM
Temp. Optionscold, hot, wet steam
Steam Temp.up to 330ºF
Hot Water Temp.180ºF - 210ºF
Standard Power Methodelectric: 220V-240V, three phase, 60 Hz
Optional Power Methods(call for pricing) 220V-240V three phase, 50 or 60 Hz; & 440V, three phase, 50 or 60 Hz
Motor Sizeheavy duty 10.0 HP - NEMA
Minimum Generator SizeContact Daimer
Gasoline/Diesel Fuel CapacityN/A
Ignition Systemelectronic direct spark
Power Cords1
Heating Methodno.1 or no. 2 heating oil; diesel; or kerosene
Heating Fuel Capacity9 gallons
Heater Exchange Coilheavy duty schedule 80 heating coil
Heater Response Timeconverts cold water to hot water in approximately 30 seconds
Operating Timecontinuous use
Pump Drive Methodbelt drive
Chemical Infusionyes, high pressure injection
Wand Includeddurable 3' trigger wand with quick disconnect
Nozzles Standard0º (blast), 15º, 25º, 40º, steam nozzles
Pressure Hose50' high pressure steam hose
Pressure Hose Optionsadditional/customizable lengths available
Dimensions41"w. x 48"d. x 58"h.
Weight880 lbs
Housingstainless steel and powder-coated, high gloss, chip/chemical resistant
Colorblack and silver
Phosphatizing SystemN/A- see Super Max 12860 AF
Acid/Phosphate Chemical FeedN/A
Trailer Mountwheels removed - same price
Multi-Gun Operationoptional - call for pricing
Wall MountN/A
Wet Sandblasting Systemoptional - call for pricing

Parts List

PARTS LIST

Standard Parts / Quantity

3' Durable Trigger Wand with Quick Disconnect 1
0º (Blast) Nozzle (not shown) 1
15º Nozzle (not shown) 1
25º Nozzle (not shown) 1
40º Nozzle (not shown) 1
Steam Nozzle (not shown) 1
50' High Pressure Steam Hose (not shown) 1

Video

Brochure

Ultra Powerful Pressure Wash Systems for Industrial Maintenance

Reputed suppliers, every now and then, keep launching new pressure washers empowered with the most advanced cleaning technologies. All these unique technologies have been developed carefully after studying the cleaning requirements in industrial and commercial settings. As a result, these innovative functions considerably enhance cleaning results, simplify the most challenging applications, and offer a host of other benefits, such as extending the life of electric pressure washers.

The Super Max™ 12860 AST® from Daimer® is a powerful, electric-powered, fuel-heated and mobile pressure washer offering the right aspects needed for efficient industrial maintenance. These gas powered pressure washers offer high pressure levels of 3000 psi and high flow rates of 5 gpm. These new pressure washers are also equipped with the unique automatic shut down technology. When water stops flowing through the system and the trigger gun is not used for over 30 seconds, this technology automatically shuts off the motor and pump of the mobile pressure washer to prevent overheating of its components.

These tri-mode electric power washers offer the cleaning functions of steam, cold water, and hot water power washers. Powered by a heavy-duty 10.0 HP NEMA engine and featuring powerful heating coils, commercial pressure washers, such as the Super Max™ 12860 AST®, help convert cold water to hot water in about 30 seconds. These industrial pressure washers are also available in trailer mountable configurations.

To sum up, the Super Max™ 12860 AST® is perfect for those industrial applications requiring mobile and powerful pressure washer machines capable of handling a wide range of challenging applications.
