(Clone) SM-12860-216DH
VoltageHeating FuelPrice Call to order
230V, three phase, 60HzDiesel$13,657.00 1-800-471-7157

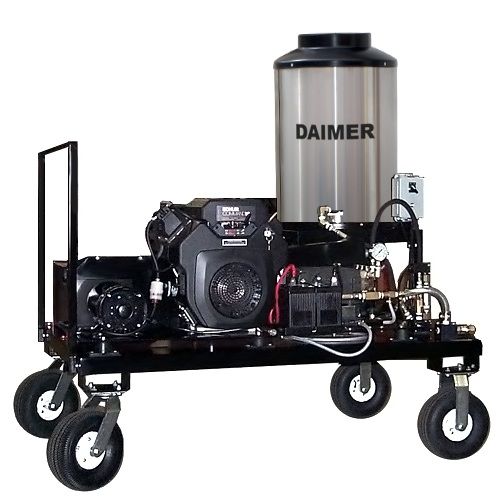

The Super Max12860 WS is one of Daimer's most powerful electric wet sandblaster pressure washers with a high pressure level (3000 psi) and flow rate (5 GPM), offering functionality as a cold water, hot water, and steam pressure washer for virtually any industrial or commercial application. The pressure washer machine reaches steam temperatures as high as 330°F. Adding to the extreme versatility and power of the 12860 WS is the included wet sandblasting system that goes beyond the capabilities of a normal pressure washer and can actually remove a layer of material from a surface.

Have a question about this item?
Contact us and a sales representative would be glad to help!



Price excludes freight.
Free Skid Configuration for Trailer Mounting

View This Video - Discover Daimer's Absolutely

Outstanding Wet Steam Degreasing Capabilities

Loading the player…


commercial pressure washer, industrial pressure washer

The Super Max12860 WS is one of Daimer's most powerful electric wet sand blaster pressure washers that boasts a high pressure of 3000 psi and a flow rate of 5 GPM for extreme cleaning power in virtually any industrial or commercial wet sand blaster pressure washer application. The 12860 WS can function independently as a cold water, hot water, or steam pressure water with steam temperatures up to 330ºF.

The Super Max™ 12860 WS, like all Super Max® WS models, comes standard with Daimer's unique and powerful wet sand blaster system the goes beyond the contaminant removing power of normal pressure washers and actually removes rust, corrosion, paint layers or heavy deposits from a variety of metal surfaces, revealing shiny bare metal. For use as a wet sand blaster, this pressure washer must be used in cold water mode. Daimer's wet sandblaster machines feature a 1 1/2" spray pattern, ideal for spot removal of corrosion, rust, and other materials from metal surfaces.

Daimer's wet sandblasting system can be used with a range of sand grit sizes and media, including baking soda and small plastic pellets. The metal sand point draws the sand grit directly from the container into the system where the 15' flexible sand pickup tube carries the sand to the special venturi head that mixes the sand with the high-pressure water. The resulting mixture exits the machine through the special round nozzle. Additionally, the head has a proportioning valve that can be used to adjust the flow of sand and water.

Made of the highest quality components, the Super Max™ 12860 WS wet sand blaster pressure washer is highly functional and flexible for a variety of applications. Adding to this versatility, the 12860 WS is a mobile pressure washer that can be purchased with optional trailer mounting or two gun operation configurations.

Daimer offers pressure washers in a variety of power configurations for worldwide requirements. The following are available: 110-120V, 208V, 220-240V, 380V, 415V, 440-480V, and 575V; single and three phase; 50 or 60 Hz. Please contact us for pricing.

Product Specifications

Warranty1 year (limited)Water Pump Warranty5 years (limited)Motor/Engine Warranty2 years (limited)
Pressure3000 PSI
Flow Rate5 GPM
Temp. Optionscold, hot, wet steam
Steam Temp.up to 330ºF
Hot Water Temp.180ºF - 210ºF
Standard Power Methodelectric: 220V-240V, three phase, 60 Hz
Optional Power Methods(call for pricing) 220V-240V three phase, 50 or 60 Hz; & 440V, three phase, 50 or 60 Hz
Motor Sizeheavy duty 10.0 HP - NEMA
Minimum Generator SizeContact Daimer
Gasoline/Diesel Fuel CapacityN/A
Ignition Systemelectronic direct spark
Power Cords1
Heating Methodno.1 or no. 2 heating oil; diesel; or kerosene
Heating Fuel Capacity9 gallons
Heater Exchange Coilheavy duty schedule 80 heating coil
Heater Response Timeconverts cold water to hot water in approximately 30 seconds
Operating Timecontinuous use
Pump Drive Methodbelt drive
Chemical Infusionyes, high pressure injection
Wand Includeddurable 3' trigger wand with quick disconnect
Nozzles Standard0º (blast), 15º, 25º, 40º, steam nozzles
Pressure Hose50' high pressure steam hose
Pressure Hose Optionsadditional/customizable lengths available
Dimensions41"w. x 48"d. x 58"h.
Weight880 lbs
Housingstainless steel and powder-coated, high gloss, chip/chemical resistant
Colorblack and silver
Phosphatizing SystemN/A- see Super Max 12860 AF
Acid/Phosphate Chemical FeedN/A
Trailer Mountwheels removed - same price
Multi-Gun Operationoptional - call for pricing
Wall MountN/A
Wet Sandblasting Systemyes

Parts List


Standard Parts / Quantity

3' Durable Trigger Wand with Quick Disconnect 1
0º (Blast) Nozzle (not shown) 1
15º Nozzle (not shown) 1
25º Nozzle (not shown) 1
40º Nozzle (not shown) 1
Steam Nozzle (not shown) 1
Venturi Nozzle (not shown) 1
50' High Pressure Steam Hose (not shown) 1
Sand Tube (not shown) 1
Pick Up Probe (not shown) 1



Road Maintenance: Now Easy With Power Cleaner Systems

Most people remain unaware about the time and effort that cleaning experts spend on keeping the roads, highways, and streets clean. Roads cover vast areas and cannot be cleaned using traditional techniques. The kind of commercial power washers chosen for maintaining roads must ideally help users maintain large areas efficiently without demanding too much time or effort. The pressure washer machines must be empowered with high pressure levels and flow rates.

If you are on the lookout for powerful industrial pressure washers for road maintenance, the Super Max™ 12860 WS available from Daimer® will be a perfect choice. To ensure excellent cleaning power, these advance electric pressure washers feature flow rates of 5 gpm and pressure levels of 3000 psi. Tri-mode capabilities enable these gas pressure washers to generate wet steam, hot water, or cold water as per your particular requirements.

To help eliminate grease deposits and dried mud from large outdoor surfaces, pressure washers equipment, such as the Super Max™ 12860 WS, eject wet steam at temperatures of up to 330ºF. Powered by 10.0 HP NEMA engine and heated by kerosene or diesel, these hot water pressure washers generate hot water at temperatures in the range 180ºF - 210ºF.

Another key aspect of these pressure washers is the wet sandblasting function. By combining sand with pressurized water, the wet sandblaster function of these pressure washers creates an amazing force that effectively spot cleans rust and other deposits from surfaces. Remember that the wet sandblasting function of the pressure washers equipment only works in the cold water mode.
