Description

View This Video - Discover Daimer's Absolutely

Outstanding Wet Steam Degreasing Capabilities

Loading the player…



Daimer Video pressure washer, pressure washers

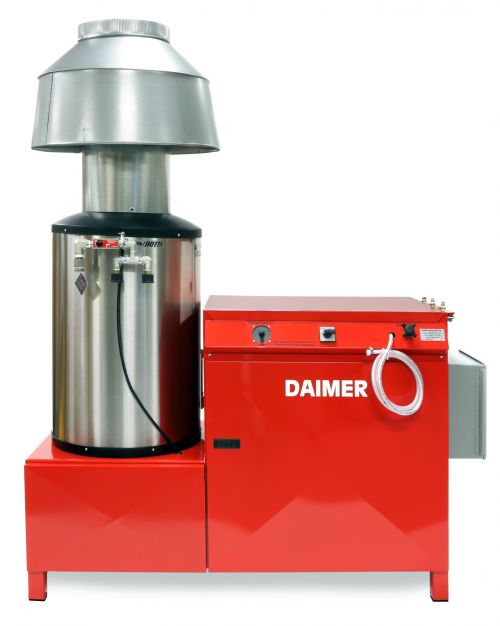

The Super Max™ 15550 is a stationary, tri-mode electric pressure washer offering steam temperatures up to 165ºC and hot water temperatures up to 98.9ºC, like the 15250 and 15450. The Super Max 15550 also offers the same high pressure injection, for the addition of cleaning chemicals, as other 15000 series models. The Super Max 15550, however, offers a flow rate of 15.1 LPM at a pressure level of 1000 psi (67 bar). This model is ideal for those requiring the permanent addition of a pressure washer offering a mid-range pressure, but a flow rate higher than the 7.6 l/m flow rate available with the Super Max 15250. Heating options are the same as other 15000 series models (no.1 or no. 2 heating oil; diesel; kerosene; propane; and natural gas) and available options include: two gun operation.

Daimer offers pressure washers in a variety of power configurations for worldwide requirements. The following are available: 110-120V, 208V, 220-240V, 380V, 415V, 440-480V, and 575V; single and three phase; 50 or 60 Hz. Please contact us for pricing.

Product Specifications

Warranty1 year (limited)Water Pump Warranty5 years (limited)Motor/Engine Warranty2 years (limited)
Pressure1000 psi (67 bar)
Flow Rate4 GPM
Temp. Optionscold, hot, wet steam
Steam Temp.up to 165ºC
Hot Water Temp.82.2ºC - 98.9ºC
Standard Power Methodelectric: 220V-240, single phase, 50 Hz
Optional Power Methods(call for pricing) 220V-240V, single phase, 60 Hz; 220V-240V three phase, 50 or 60 Hz; & 440V, three phase, 50 or 60 Hz
Motor Sizeheavy-duty 3 HP - NEMA
Minimum Generator SizeN/A
Gasoline/Diesel Fuel CapacityN/A
Ignition Systemelectronic direct spark
Power Cords1
Heating Methodno.1 or no. 2 heating oil; diesel; kerosene; natural gas (requires natural gas line); or propane (customer provides vapor withdrawal cylinder)
Heating Fuel Capacity34 liters (heating oil, kerosene, or diesel)
Heater Exchange Coilheavy duty schedule 80 heating coil
Heater Response Timeconverts cold water to hot water in approximately 30 seconds
Operating Timecontinuous use
Pump Drive Methoddirect drive
Chemical Infusionyes, high pressure injection
Wand Includeddurable 91.4cm trigger wand with quick disconnect
Nozzles Standard0º (blast), 15º, 25º, 40º, steam nozzles
Pressure Hose50' high pressure steam hose
Pressure Hose Optionsadditional/customizable lengths available
Dimensions132 cm x 58.5 cm x 127 cm
Weight458.1 kg
Housingpowder-coated steel, high gloss, chip/chemical resistant
Colorred and white
Phosphatizing SystemN/A- see Super Max 15500 AF
Acid/Phosphate Chemical FeedN/A
Trailer MountN/A
Multi-Gun Operationoptional - call for pricing
Wall MountN/A
Wet Sandblasting Systemoptional - call for pricing

Parts List

PARTS LIST

Standard Parts / Quantity

91.4cm Durable Trigger Wand with Quick Disconnect
1
0º (Blast) Nozzle (not shown)
1
15º Nozzle (not shown)
1
25º Nozzle (not shown)
1
40º Nozzle (not shown)
1
Steam Nozzle (not shown)
1
15.2m High Pressure Steam Hose (not shown)
1

Video

Brochure

Choosing Power Cleaner Equipment with the Right Pressure Levels

Prior to purchasing high pressure washers for use in industrial settings, you must carefully evaluate the kind of cleaning jobs in the area and understand the right pressure levels required to manage those jobs. The routine cleaning applications can be easily handled with an electric pressure washer featuring average pressure levels. However, to manage extremely demanding tasks, such as cleaning dirty or stained concrete surfaces, you may need to purchase power cleaner machines with high pressure levels.

There are many cleaning applications in industrial settings that do not demand high pressure levels and can be satisfactorily accomplished with pressure washing machines featuring mid-range pressure levels. The Super Max™ 15550 available from Daimer® is one such electric pressure washer with average pressure levels. These tri-mode, commercial pressure washers with stationary configurations offer the benefits of hot water, cold water and steam pressure washers. The machine ejects wet steam at temperatures of up to 165ºC and hot water at temperatures as high as 98.9ºC.

Powered by a 3.0 HP NEMA engine, the Super Max™ 15550 is capable of attaining flow rates of 4 gpm and mid-range pressure levels of 1000 psi. This hot water pressure washer comes with multiple heating options. You can use fuels, such as propane, natural gas, kerosene or diesel, to heat these high pressure washers. The high pressure injection function in these gas pressure washers enables users to add cleaning chemicals and boost the cleaning action of the hot water pressure washer. If you need to improve the productivity, remember that the machine comes with optional two-gun operations that allow two operators to use the power wash system simultaneously.
