VoltagePrice Call to order
230V, single phase, 60Hz$9,343.00 1-800-471-7157

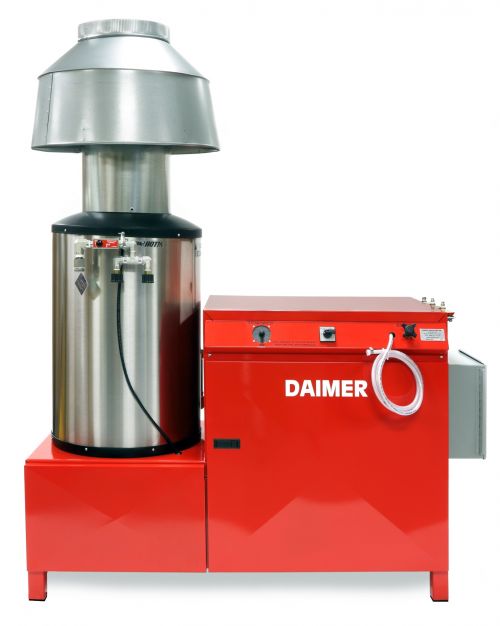

The Super Max™ 15700 AF is a powerful industrial, stationary, electric pressure washer that features Daimer's phosphatizing system. This system uses downstream injection for the pre-treatment of metal surfaces, which makes the system easier to protect against corrosive attack.

Additionally, all components used (downstream injector, dual lance wand, fittings and parts) feature the highest class of stainless steel for greater durability and longevity, making it ideal for any industrial facility requiring a permanent, long lasting phosphatizing pressure washer system. Additionally this pressure washer machine, which is capable of being used as a cold water and hot water (180°F) pressure washer, features a high flow rate (5 GPM) and pressure (1500 psi).

Have a question about this item?
Contact us and a sales representative would be glad to help!


Price excludes freight.

View This Video - Discover Daimer's Absolutely

Outstanding Wet Steam Degreasing Capabilities

Loading the player…

pressure washer, pressure washers

The Super Max™15700 AF is a stationary, electric pressure washer that builds upon the features of the 15500 AF. The same heating options are available as other models (natural gas or propane), as well as the ability to use this machine as a cold water or hot water pressure washer. However, the 15700 AF offers a higher flow rate (5 GPM) and pressure (1500 psi) than the 15500 AF.

Like all other 15000 AF series models, the 15700 AF comes with Daimer's phosphatizing system which uses downstream injection to pre-treat metal surfaces to prevent rust and corrosion or to prepare the surfaces for the application of paint primer or powder coating. With this method the chemicals only contact Daimer's high quality stainless steel injector, high-pressure hose, trigger gun, wand and nozzle, which are all easy to protect against corrosive attack. Adding to the 15700 AF's versatility, the dual lance wand features a high-pressure nozzle and a low-pressure nozzle at the end of either of the side-by-side tubes. The crossover valve controls the flow of water through either nozzle, not both at the same time.

The 15700 AF can be purchased with optional two gun operation. This model is ideal for commercial/industrial applications that require the permanent addition of a powerful tri-mode electric pressure washer and that have power requirements beyond the 15500 AF and a powerful phosphatizing system.

Daimer offers pressure washers in a variety of power configurations for worldwide requirements. The following are available: 110-120V, 208V, 220-240V, 380V, 415V, 440-480V, and 575V; single and three phase; 50 or 60 Hz. Please contact us for pricing.

Product Specifications

Warranty1 year (limited)Water Pump Warranty5 years (limited)Motor/Engine Warranty2 years (limited)
Pressure1500 psi
Flow Rate5 GPM
Temp. Optionscold, hot
Steam Temp.N/A
Hot Water Temp.up to 180ºF
Standard Power Methodelectric: 220V-240V, single phase, 60 Hz
Optional Power Methods(call for pricing) 220V-240V, single phase, 50 Hz; 230V three phase, 50 or 60 Hz; & 440V, three phase, 50 or 60 Hz
Motor Sizeheavy duty 5.0 HP - NEMA
Minimum Generator SizeN/A
Gasoline/Diesel Fuel CapacityN/A
Ignition Systemelectronic direct spark
Power Cords1
Heating Methodnatural gas (requires natural gas line); or propane (customer provides vapor withdrawal cylinder) OPTIONAL natural gas or propane (OPTIONAL no.1 or no. 2 heating oil; diesel or kerosene - CALL FOR PRICING)
Heating Fuel Capacity9 gallons for OPTIONAL (heating oil, kerosene, or diesel)
Heater Exchange Coilheavy duty schedule 80 heating coil
Heater Response Timeconverts cold water to hot water in approximately 30 seconds
Operating Timecontinuous use
Pump Drive Methoddirect drive
Chemical Infusionyes, high pressure injection
Wand Includeddual lance wand
Nozzles Standard0º (blast), 15º, 25º, 40º nozzles
Pressure Hose50' high pressure hose
Pressure Hose Optionsadditional/customizable lengths available
Dimensions52"w. x 23"d. x 50"h.
Weight1025 lbs
Housingsteel - powder-coated, high gloss, chip/chemical resistant
Colorred and white
Phosphatizing SystemYes
Acid/Phosphate Chemical Feeddownstream stainless steel injector with chemical proportioning adjustment, mounted at the outlet of heating coil
Trailer MountN/A
Multi-Gun Operationoptional - call for pricing
Wall MountN/A
Wet Sandblasting Systemoptional - call for pricing

Parts List


Standard Parts / Quantity

Dual Lance Wand with crossover valve
0º (Blast) Nozzle (not shown)
15º Nozzle (not shown)
25º Nozzle (not shown)
40º Nozzle (not shown)
50' High Pressure Hose (not shown)



Industrial Degreasing Capabilities of Power Washing Systems

Industrial settings, such as automobile assembling units, food processing plants, and oil refineries accumulate lots of greasy deposits. The floors, walls, machinery, and other surfaces in these areas feature grease and oil in considerable amounts. The maintenance professionals in these settings are expected to decrease the surfaces on a daily basis. However, this is not an easy job, considering the hard-to-remove nature of grease. For this reason, you must try the cleaning action of heated pressure washers.

Cold water-based power washer systems are not appropriate for heavy-duty degreasing, since cold water simply hardens the grease into clumps instead of washing away the deposits. Alternatively, the hot water ejected by heated versions of power washers instantly dissolves the grease and washes it away, leaving the surface absolutely clean. So, if degreasing is one of the tasks you find bothersome, simply leave it to heated commercial pressure washers, such as the Super Max™15700 AF from Daimer®.

Powered by a 5.0 HP NEMA engine and featuring stationary configurations, the Super Max™15700 AF is a unique pressure washer that offers you the benefits of both cold water and hot water power washer. Heated by natural gas, propane, kerosene, or diesel, these industrial pressure washers generate hot water at temperatures of up to 180ºF. The high temperatures combined with pressure levels of 1500 psi and flow rates of 5 gpm make these commercial pressure washers capable of handling industrial degreasing operations. Such industrial pressure washers are also equipped with reliable phosphatizing functions capable of pre-treating metal surfaces for the application of paint.
