Daimer
(Clone) SM-15800-216DH
USD
Daimer
VoltagePrice Call to order
230V, single phase, 60Hz$9,532.00 1-800-471-7157

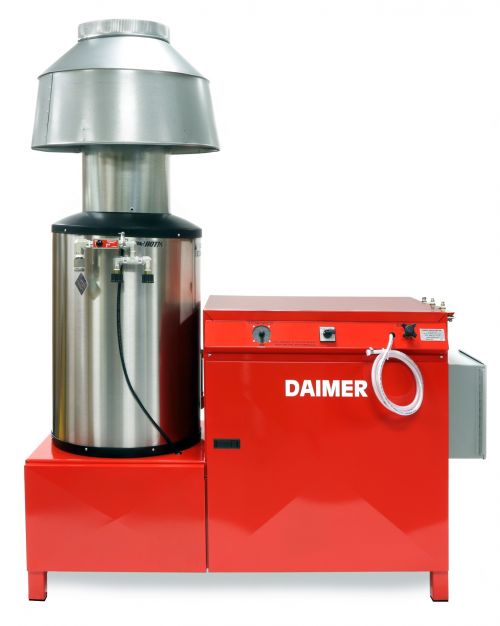

The Super Max™ 15800 WS is a stationary, industrial electric wet sandblaster pressure washer with the functionality to allow the machine to be operated independently as a cold water, hot water (210°F), and steam pressure washer with temperatures up to 330ºF. Combined with Daimer's wet sand blaster system, this pressure washer machine offers immense sandblasting capabilities with a high pressure (2000 psi) and flow rate (4 GPM).

Have a question about this item?
Contact us and a sales representative would be glad to help!

Description


Price excludes freight.

View This Video - Discover Daimer's Absolutely

Outstanding Wet Steam Degreasing Capabilities

Loading the player…



Daimer Videos pressure washes News

The Super Max™ 15800 WS is a powerful stationary, industrial, electric wet sand blaster pressure washer that offers the functionality to work independently as a cold water, hot water, or steam pressure washer with high steam temperatures up to 330ºF. With a high pressure of 2000 psi and flow rate of 4 GPM, this pressure washer machine is the ideal solution for industrial applications requiring a permanent powerful pressure wash addition with immense wet sandblasting capabilities and that would benefit from the optional two gun operation.

The included wet sand blaster system allows the Super Max® 15800 WS to remove rust, corrosion, paint layers or heavy deposits from a variety of metal surfaces, returning the surfaces to shiny bare metal. Wet sandblasting is a much safer method of sandblasting and does not require breathing protection, as compressed air sandblasting does. Daimer's wet sandblaster machines feature a 1 1/2" spray pattern, ideal for spot removal of corrosion, rust, and other materials from metal surfaces.

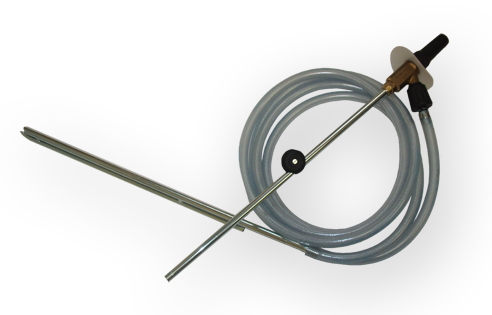

The wet sand blaster kit uses a metal sand point to draw the sand directly from the container into the 15' flexible pickup tube that sucks the sand up into the special venturi head where it is mixed with high-pressure water. This high-pressure water and sand mixture exits the pressure washer through the special round nozzle. Additionally, the flow of sand and water can be adjusted using the proportioning valve on the head. This wet sand blaster pressure washer can be used with a range of sand grit sizes and media, like baking soda and small plastic pellets.

For use as a wet sand blaster, this pressure washer must be used in cold water mode.

Daimer offers pressure washers in a variety of power configurations for worldwide requirements. The following are available: 110-120V, 208V, 220-240V, 380V, 415V, 440-480V, and 575V; single and three phase; 50 or 60 Hz. Please contact us for pricing.

Product Specifications

Warranty1 year (limited)Water Pump Warranty5 years (limited)Motor/Engine Warranty2 years (limited)
Pressure2000 psi
Flow Rate4 GPM
Temp. Optionscold, hot, wet steam
Steam Temp.up to 330ºF
Hot Water Temp.180ºF - 210ºF
Standard Power Methodelectric: 220V-240V, single phase, 60 Hz
Optional Power Methods(call for pricing) 220V-240V, single phase, 50 Hz; 220V-240V three phase, 50 or 60 Hz; & 440V, three phase, 50 or 60 Hz
Motor Sizeheavy duty 5.0 HP - NEMA
Minimum Generator SizeN/A
Gasoline/Diesel Fuel CapacityN/A
Ignition Systemelectronic direct spark
Power Cords1
Heating Methodnatural gas (requires natural gas line); or propane (customer provides vapor withdrawal cylinder) OPTIONAL natural gas or propane (OPTIONAL no.1 or no. 2 heating oil; diesel or kerosene - CALL FOR PRICING)
Heating Fuel Capacity9 gallons for OPTIONAL (heating oil, kerosene, or diesel)
Heater Exchange Coilheavy duty schedule 80 heating coil
Heater Response Timeconverts cold water to hot water in approximately 30 seconds
Operating Timecontinuous use
Pump Drive Methoddirect drive
Chemical Infusionyes, high pressure injection
Wand Includeddurable 3' trigger wand with quick disconnect
Nozzles Standard0º (blast), 15º, 25º, 40º, steam nozzles
Pressure Hose50' high pressure steam hose
Pressure Hose Optionsadditional/customizable lengths available
Dimensions52"w. x 23"d. x 50"h.
Weight1025 lbs
Housingpowder-coated steel, high gloss, chip/chemical resistant
Colorred and white
Phosphatizing SystemN/A- see Super Max 15800 AF
Acid/Phosphate Chemical FeedN/A
Trailer MountN/A
Multi-Gun Operationoptional - call for pricing
Wall MountN/A
Wet Sandblasting Systemyes

Parts List

PARTS LIST

Standard Parts / Quantity

3' Durable Trigger Wand with Quick Disconnect 1
0º (Blast) Nozzle (not shown) 1
15º Nozzle (not shown) 1
25º Nozzle (not shown) 1
40º Nozzle (not shown) 1
Steam Nozzle (not shown) 1
Venturi Nozzle (not shown) 1
50' High Pressure Steam Hose (not shown) 1
Sand Tube (not shown) 1
Pick Up Probe (not shown) 1

Video

Brochure

Power Washing Systems for Maintaining Construction Sites

If work at a construction site must proceed as per schedule, the equipment used at the site must be clean and fully operational. Generally, people hire cleaning professionals to manage the maintenance of construction equipment. However, such cleaning services can cost a considerable amount. Therefore, it will be practical to consider purchasing advanced machines, such as industrial pressure washers, to maintain construction equipment.

Using commercial pressure washers keeps the heavy equipment used in construction sites free of dirt, mud, and grease. This protects the machines from rusting and wearing away. In the long run, the superior cleaning action of the gas pressure washers helps extend the lifespan of the machines and ensures that the equipment continue to function in great condition for years.

Although the high pressure levels of a pressure washer machine will help blast away dirt buildup from construction equipment, certain applications may demand the use of hot water or steam. For instance, when it comes to degreasing an excavator, cold water pressure washers will not be of great help. You must use hot water power washers, to effectively dissolve oil and grease particles.

The Super Max™ 15800 WS from Daimer® is a wet sandblaster pressure washer featuring a pressure level of 2000 psi and flow rate of 4 gpm. The tri-mode, electric pressure washer generates hot water at temperatures ranging from 180ºF to 210ºF and steam at temperatures of up to 330ºF, to help manage the toughest cleaning applications in constriction sites. Equipped with a heavy duty 5.0 HP - NEMA motor, the wet sandblaster pressure washer uses a mixture of sand and pressurized water in the cold water mode to remove rust and heavy deposits from metal surfaces. These pressure washers also come with optional two-gun operations.
