Daimer
SM-8780-436-AST
USD
Daimer
VoltagePrice Call to order
440V, three phase, 60Hz$7,138.00 1-800-471-7157

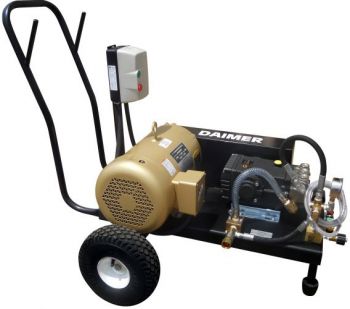

The Super Max™ 8780 AST® is a portable, electric cold water pressure washer for demanding industrial and commercial applications requiring a higher pressure, as the 8780 AST® features high pressure of 4000 psi with a lower flow rate (4 GPM) and can accept hot water up to 180°F. The most functional feature of this cold water pressure washer machine is Daimer's one-of-a-kind, exclusive AST® (Automatic Shutoff Technology®).

Have a question about this item?
Contact us and a sales representative would be glad to help!

Description


Price excludes freight.

pressure washer, pressure washers

The Super Max™ 8780 AST® is an ultra-powerful, portable, electric cold water pressure washer featuring Daimer's exclusive AST® (Automatic Shutoff Technology®). AST® extends the life of the 8780 AST® by reducing the wear and tear on the pump and other components.

Driven by a highly powerful 15 HP NEMA engine, this rugged cold water pressure washer offers extreme pressure of 4000 psi with a lower flow rate of 4 GPM. These powerful pressure washer machines can be purchased with an optional wet sandblasting system and/or two gun operation. The Super Max™ 8780 AST® is ideal for commercial and industrial applications requiring a portable cold water pressure washer with high pressure and powerful capabilities, but with a lower flow rate for less water consumption than the 8750 AST®.

What is AST® Technology?

AST® is a proprietary system that works as follows: When AST® is engaged, it shuts off the pump and motor after 30 seconds if the gun is not in use and water is not flowing through the system. When the pressure washer operator pulls the trigger again, the motor and pump go on. This feature is particularly useful for applications in which the pressure washer operator is using a long hose, say more than 25 feet, and it is not practical for them to go back and forth to the machine to turn it off during every break.

The pumps and motors in conventional electric pressure washers remain active whether or not water is flowing through the system. As a result the user has to keep walking back to the system to shut it off or risk damaging the motor and pump.

Daimer offers pressure washers in a variety of power configurations for worldwide requirements. The following are available: 110-120V, 208V, 220-240V, 380V, 415V, 440-480V, and 575V; single and three phase; 50 or 60 Hz. Please contact us for pricing.

Product Specifications

Warranty1 year (limited)Water Pump Warranty5 years (limited)Motor/Engine Warranty2 years (limited)
Pressure4000 psi
Flow Rate4 GPM
Temp. Optionscold water
Steam Temp.N/A
Hot Water Temp.Optional support up to 180°F. Call for more information.
Standard Power Methodelectric: 440V, three phase, 60 Hz
Optional Power Methods(call for pricing) 220V-240V, three phase, 50 Hz; 440V, three phase, 50 or 60 Hz
Motor Sizeheavy duty 15.0 HP - NEMA
Minimum Generator SizeContact Daimer
Gasoline/Diesel Fuel CapacityN/A
Ignition SystemN/A
Power Cords1
Heating MethodN/A
Heating Fuel CapacityN/A
Heater Exchange CoilN/A
Heater Response TimeN/A
Operating Timecontinuous use
Pump Drive Methoddirect drive
Chemical Infusionyes - low pressure injection
Wand Includeddurable 3' trigger wand with quick disconnect
Nozzles Standard0º (blast), 15º, 25º, 40º
Pressure Hose25' high pressure hydraulic hose
Pressure Hose Optionsadditional/customizable lengths available
Dimensions36"w. x 48"d. x 43"h. w/o handle
Weight450 lbs
Housingpowder-coated steel, high gloss, chip/chemical resistant
Colorblack
Phosphatizing SystemN/A
Acid/Phosphate Chemical FeedN/A
Trailer Mountyes - when wheels are removed
Multi-Gun Operationoptional - call for pricing
Wall Mountyes - when wheels are removed
Wet Sandblasting Systemoptional - call for pricing

Parts List

PARTS LIST

Standard Parts / Quantity

3' Durable Trigger Wand with Quick Disconnect 1
0º (Blast) Nozzle (not shown) 1
15º Nozzle (not shown) 1
25º Nozzle (not shown) 1
40º Nozzle (not shown) 1
25' High Pressure Hydraulic Hose (not shown) 1

Brochure

Cold Water Power Wash Systems For Industrial Settings

There are a lot of heavy-duty maintenance applications in industrial settings that do not need the power of hot water pressure washers and can be satisfactorily tackled with the help of cold water-based industrial pressure washers. High pressure levels, high flow rates, and the inclusion of unique technologies endow the cold water-based gas pressure washers with extremely effective cleaning power.

The Super Max™ 8780 AST® from Daimer® is an exceptionally powerful and portable pressure washing equipment that utilizes the power of highly pressurized cold water, to offer superior cleaning results. Powered by a robust 15 HP NEMA engine, these pressure washing machines are capable of attaining flow rates of 4 gpm and pressure levels of 4000 psi. Housed in solid, powder-coated and chip-resistant steel, these electric pressure washers are durable enough to survive the rough use in industrial settings.

The auto shut off function is one notable feature in commercial pressure washers, such as the Super Max™ 8780 AST®. This function automatically shuts down the motor and pump of the pressure washing equipment, if the trigger gun is not used for more than 30 seconds and water ceases to flow through the system. As a result, the components are protected from the damaging effects of overheating.

If you are on the lookout for powerful and portable cold water pressure washers with high pressure levels and proven cleaning capabilities, then the Super Max™ 8780 AST® is perfect for your needs. These pressure washers are also available with optional wet sandblasting features and double-gun configurations.
