Daimer
VoltageHeating FuelPrice Call to order
440V, three phase, 50HzElectric$9,496.00 1-800-471-7157

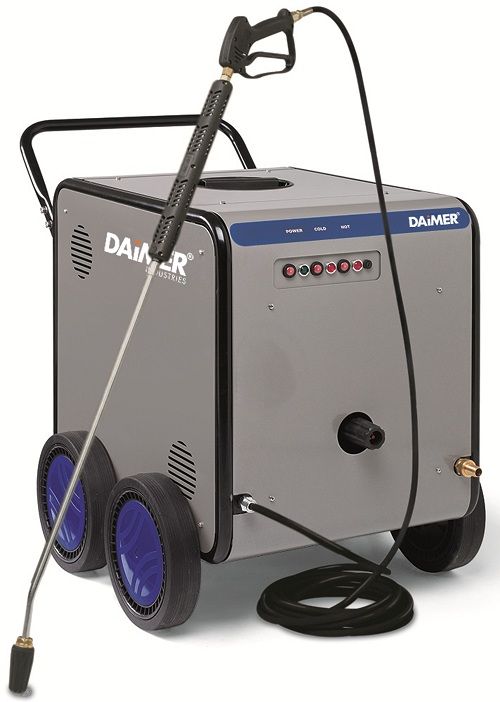

With a pressure level of 1880 psi (130 bar) and a flow rate of 3.8 LPM, the Vapor-Flo® 7775 is an electric pressure washer designed for tough commercial and industrial cleaning tasks. This machine is both powered and heated by a heavy duty 440V three phase electric motor and features hot and cold temperature options. Maximum temperature levels reach up to 96.1°C in 20 seconds. Setting itself apart from the 7700, the Vapor-Flo® 7775 offers beneficial top-access to the water tank.

Have a question about this item?
Contact us and a sales representative would be glad to help!

Description


Freight not included.

View This Video - Discover Daimer's Absolutely

Outstanding Wet Steam Degreasing Capabilities

Loading the player…



Free Daimer AST Technology

The Vapor-Flo® 7775 is an all electric pressure washer featuring the same cold and hot water functionality as the 7600 series with a higher maximum temperature of 96.1°C, achieved in only 20 seconds with the rugged, stainless steel heater exchange coils. This 50 Hz machine runs on a heavy duty 2.0 HP, 440V three phase motor to reach pressure levels of 1880 psi (130 bar) and flow rate 3.8 LPM.

A steel powder coated casing ensures protection against chipping and chemical corrosion. For greater functionality, this system enables operators to access the water tank from the top of the machine.

Operators may consider enhancing the cleaning power of these pressure washers through the use of Eco-Green® chemicals, via the machine's siphon type standard/foam lance chemical injection. An all electric machine offers benefits including quiet operation, easy clean up, and cost effectiveness over fuel powered machines. Options include adjustable pressure, assorted power methods, and custom hose lengths.

Daimer offers pressure washers in a variety of power configurations for worldwide requirements. The following are available: 110-120V, 208V, 220-240V, 380V, 400V, 415V, 440V, 480V, and 600V; single and three phase; 50 or 60 Hz. Please contact us for pricing.

Product Specifications

Warranty1 year (limited)Water Pump Warranty1 year (limited)Motor/Engine Warranty1 year (limited)
Pressure1880 psi (130 bar)
Flow Rate3.8 LPM
Temp. OptionsCold, hot
Steam Temp.N/A
Hot Water Temp.96.1°C
Standard Power Method440V, three phase, 50Hz
Optional Power Methods400V, three phase, 60Hz / 480V, three phase 60 Hz
Motor SizeHeavy Duty 2.0 HP
Minimum Generator SizeContact Daimer
Gasoline/Diesel Fuel CapacityN/A
Ignition SystemN/A
Power Cords1
Heating MethodElectric - 20 kW
Heating Fuel CapacityN/A
Heater Exchange CoilHigh pressure - stainless steel
Heater Response TimeConverts cold to hot water - approx. 20 secs
Operating TimeContinuous use
Pump Drive MethodDirect drive
Chemical InfusionYes - siphon type standard/foam lance injection
Wand IncludedDurable 76.2cm trigger wand with quick disconnect
Nozzles Standard15° stainless steel pressure nozzle with incorporated filter
Pressure Hose9.8m high pressure, double layered hose
Pressure Hose OptionsAdditional/customizable lengths available
Dimensions63.5 cm w. X 88.9 cm d. X 81.3 cm h.
Weight83.9 kg
HousingSteel - powder-coated, chip/chemical resistant
ColorGray
Phosphatizing SystemN/A
Acid/Phosphate Chemical FeedN/A
Trailer MountN/A
Multi-Gun OperationN/A
Wall MountYes
Wet Sandblasting SystemN/A
