(Clone) 125834722
VoltagePrice Call to order
N/A - Diesel Engine$20,428.00 1-800-471-7157

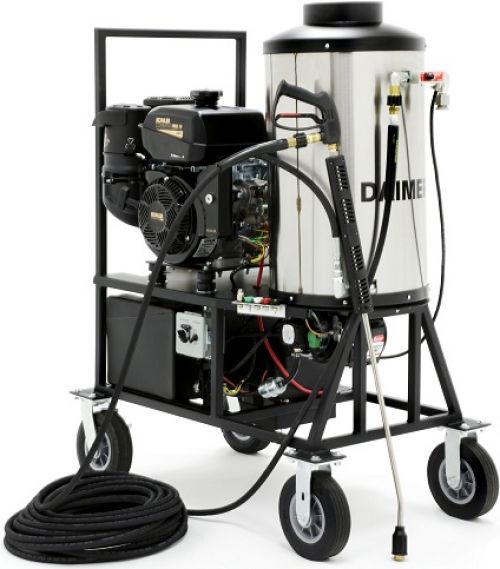

The Super Max™ 10970 SCW is an exceptionally powerful, multi-purpose steam pressure washer powered and heated using diesel. The pressure cleaner that uses diesel for heating is widely utilized by auto detailing professionals to manage applications, such as bus washing, truck cleaning, and forklift truck washing.

  • To simplify cleaning tasks and redefine cleaning results, the pressure washer features a flow rate of 4 GPM, pressure level of 2500 PSI, and temperatures as high as 330ºF.

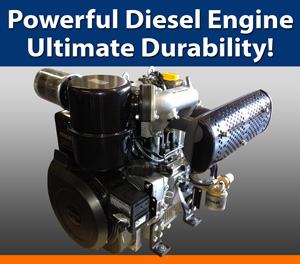

  • The heavy-duty 9.8 HP air cooled diesel engine maximizes cleaning efficiency. Powder-coated and chip-resistant stainless steel housing adds to the durability of the pressure washer.

Have a question about this item?
Contact us and a sales representative would be glad to help!


Price excludes freight.

View This Video - Discover Daimer's Absolutely

Outstanding Wet Steam Degreasing Capabilities

Loading the player…


Highly Durable Mobile, Diesel Powered,

  Diesel Fired 2000 PSI Steam Pressure Washer

commercial pressure washer, industrial pressure washer, hot water pressure washer  Diesel Engine

  • The Super Max™ 10970 SCW is a rugged, reliable, and powerful pressure washer designed for commercial auto detailing applications, such as maintaining trucks, buses, and forklifts. The diesel powered pressure cleaner uses diesel for heating as well.

Primary Specifications

  • Pressure: 2500 psi
  • Flow Rate: 4 GPM
  • Multiple Temperatures: Wet steam, hot water, and cold water pressure washer
  • Steam Temperatures: Safe, yet super powerful temperatures up to 330ºF, the industry's highest temperature.
  • Ultra Fast Heating: Converts cold water to hot water or wet steam within approximately 30 seconds.
  • Power Method: 9.8 HP air cooled diesel engine with 2 gallon chamber.
    • Glow plug technology for special applications where spark plugs are inappropriate
  • Heating Method: Oil (Diesel) with 9 gallon chamber
  • Chemical Injection: Upstream chemical feed.
  • Includes the identical innovative 12 volt technology as the 10880 SCW model.

The Super Max™ 10970 SCW is also equipped with glow plug technology for high performance and efficiency. Trailer mountable configurations make the pressure washer the perfect choice for fleet maintenance applications.

Product Specifications

Warranty1 year (limited)Water Pump Warranty5 years (limited)Motor/Engine Warranty2 years (limited)
Pressure2500 psi
Flow Rate4 GPM
Temp. Optionscold, hot, wet steam
Steam Temp.up to 330ºF
Hot Water Temp.180ºF - 210ºF
Standard Power Methoddiesel engine
Optional Power MethodsN/A
Motor Sizeheavy duty 9.8 HP air cooled diesel engine
Minimum Generator SizeN/A
Gasoline/Diesel Fuel Capacity2 gallon tank
Ignition Systemhigh efficiency / low amp 12V
Power CordsN/A
Heating Methodno.1 or no. 2 heating oil; diesel; or kerosene
Heating Fuel Capacity9 gallon tank
Heater Exchange Coilheavy duty schedule 80 heating coil
Heater Response Timeconverts cold water to hot water in approximately 30 seconds
Operating Timecontinuous
Pump Drive Methoddirect drive
Chemical Infusionyes, high pressure injection
Wand Includeddurable 3' trigger wand with quick disconnect
Nozzles Standard0º (blast), 15º, 25º, 40º, steam nozzles
Pressure Hose50' high pressure steam hose
Pressure Hose Optionsadditional/customizable lengths available
Dimensions24"w. x 42"d. x 50"h.
Weight475 lbs
Housingstainless steel and powder-coated, high gloss, chip/chemical resistant
Colorblack and silver
Phosphatizing SystemN/A
Acid/Phosphate Chemical FeedN/A
Trailer Mountwheels removed - same price
Multi-Gun Operationoptional - call for pricing
Wall MountN/A
Wet Sandblasting SystemN/A
