Daimer
(Clone) SM-12500-PE
USD
Daimer
VoltageHeating FuelPrice Call to order
N/A - Propane EnginePropane$13,438.00 1-800-471-7157

The Super Max™ 12500 PE SCW is a steam auto wash machine, which uses propane for both powering and heating.

  • The Super Max™ 12500 PE SCW generates a pressure level of 3000 PSI, flow rate of 5 GPM, hot water temperatures of 210ºF, and steam temperatures of 330ºF for exceptional cleaning results.
  • The heat exchanger coils of the machine change cold water to hot in merely less than a minute.
  • The machine delivers high power, due to the heavy duty 20.0 HP propane engine, which is robust and durable.
  • Users can buy the machine with optional multi-gun operation and wet sandblasting system.

Have a question about this item?
Contact us and a sales representative would be glad to help!

Description





Price excludes freight.

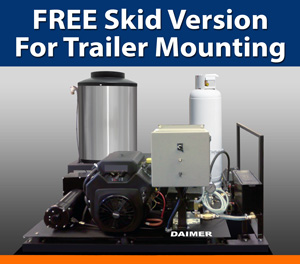

Free Skid Configuration for Trailer Mounting

View This Video - Discover Daimer's Absolutely

Outstanding Wet Steam Degreasing Capabilities

Loading the player…




The Super Max™ 12500 PE SCW is a propane powered and heated steam car detailing machine, which offers unsurpassed cleaning with its superior features and advanced technologies.

  pressure washer, pressure washers

  • The versatile automobile detailing equipment's pressure level reaches 3000 PSI at a flow rate of 5 GPM, resulting in high cleaning power.
  • In addition to the hot water temperature of up to 210ºF, the Super Max™ 12500 PE SCW creates steam temperature as hot as 330ºF, which is the highest offered in the industry.
  • High temperatures, which help dissolve even the most-difficult-to-eliminate deposits, are reached within 30 seconds, as the 12500 PE SCW comes equipped with heavy duty heater exchange coils.
  • The pressure washer gets its power from the 20.0 HP propane engine, which is durable enough to withstand demanding commercial and industrial automobile detailing applications.
  • Multi-gun operation and wet sandblasting system are some of the optional features available with the machine.

Product Specifications

Warranty1 year (limited)Water Pump Warranty5 years (limited)Motor/Engine Warranty2 years (limited)
Pressure3000 PSI
Flow Rate5 GPM
Temp. Optionscold, hot, wet steam
Steam Temp.up to 330ºF
Hot Water Temp.180ºF - 210ºF
Standard Power Methodpropane (LPG) engine (50lb empty tank included)
Optional Power MethodsN/A
Motor Sizeheavy duty 20.0 HP propane engine
Minimum Generator SizeN/A
Gasoline/Diesel Fuel CapacityN/A
Ignition Systemelectronic direct spark
Power CordsN/A
Heating Methodpropane (LPG)
Heating Fuel Capacity50 lb. empty tank included
Heater Exchange Coilheavy duty schedule 80 heating coil
Heater Response Timeconverts cold water to hot water in approximately 30 seconds
Operating Timecontinuous use
Pump Drive Methodshaft drive
Chemical Infusionyes, high pressure injection
Wand Includeddurable 3' trigger wand with quick disconnect
Nozzles Standard0º (blast), 15º, 25º, 40º, steam nozzles
Pressure Hose50' high pressure steam hose
Pressure Hose Optionsadditional/customizable lengths available
Dimensions57"w. x 41"d. x 58"h.
Weight1000 lbs
Housingsteel - powder-coated, high gloss, chip/chemical resistant
Colorred and white
Phosphatizing SystemN/A- see Super Max 12500 PE AF
Acid/Phosphate Chemical FeedN/A
Trailer Mountyes - when wheels are removed
Multi-Gun Operationoptional - call for pricing
Wall MountN/A
Wet Sandblasting Systemoptional - call for pricing

Parts List

PARTS LIST

Standard Parts / Quantity

3' Durable Trigger Wand with Quick Disconnect
1
0º (Blast) Nozzle (not shown)
1
15º Nozzle (not shown)
1
25º Nozzle (not shown)
1
40º Nozzle (not shown)
1
Steam Nozzle (not shown)
1
50' High Pressure Steam Hose (not shown)
1
