Daimer
(Clone) SM-12880-DE
USD
Daimer
VoltageHeating FuelPrice Call to order
N/A - Diesel Engineno.1 or no. 2 heating oil; diesel; or kerosene$17,694.00 1-800-471-7157

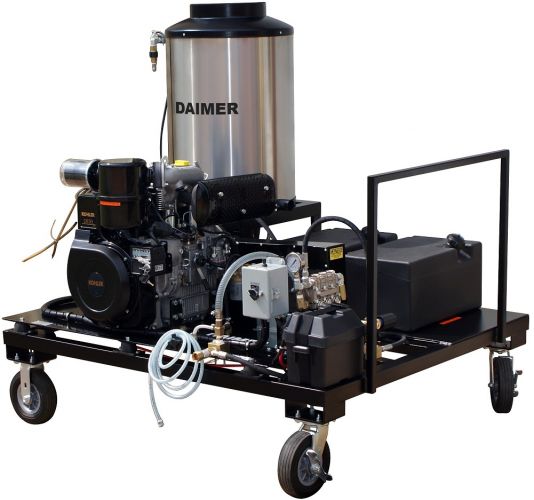

The Super Max™ 12880 DE SCW is a diesel powered and heated steam pressure washer that offers outstanding power for handling commercial auto detailing applications.

  • Owing to the pressure level of 3000 PSI, flow rate of 5 GPM, hot water temperature of as much as 210ºF and steam temperature of up to 330ºF, the steam auto wash equipment can eliminate almost any type of deposit from vehicles' exteriors.
  • The heavy duty 18.8 HP diesel engine of the machine delivers excellent cleaning power.
  • The machine is ideal for outdoor cleaning applications, however, with its 50' high pressure steam hose, whose length is adjustable, auto detailing businesses can use it indoors by keeping the machine outdoors.

Have a question about this item?
Contact us and a sales representative would be glad to help!

Description





Price excludes freight.
Free Skid Configuration for Trailer Mounting

View This Video - Discover Daimer's Absolutely

Outstanding Wet Steam Degreasing Capabilities

Loading the player…



truck mount pressure washer, commercial pressure washer

The Super Max™ 12880 DE SCW is a steam automobile cleaning system, which is powered and heated by diesel. The equipment is ideal for outdoor use, but long hoses enable the cleaning process indoors when the machine is kept outdoors.

  • The Super Max™ 12880 DE SCW's performance surpasses that of other brands' machines, given its advanced features and technologies, pressure level of 3000 PSI, flow rate of 5 GPM, hot water temperature ranging between 180ºF and 210ºF, and steam temperatures as hot as 330ºF.
  • High temperatures, attained within nearly 30 seconds, dissolve almost all kinds of buildup from the exteriors of vehicles. The machine comes equipped with heavy duty heater exchange coils.
  • The Super Max™ 12880 DE SCW includes a heavy duty 18.8 HP diesel engine, which is durable and made from high quality materials.
  • The trailer mountable machine is also available with optional features, including multi gun and wet sandblasting system.

pressure washer, pressure washers

Daimer offers pressure washers in a variety of power configurations for worldwide requirements. The following are available: 110-120V, 208V, 220-240V, 380V, 415V, 440-480V, and 575V; single and three phase; 50 or 60 Hz. Please contact us for pricing.



Product Specifications

Warranty1 year (limited)Water Pump Warranty5 years (limited)Motor/Engine Warranty2 years (limited)
Pressure3000 psi
Flow Rate5 GPM
Temp. Optionscold, hot, wet steam
Steam Temp.up to 330ºF
Hot Water Temp.180ºF - 210ºF
Standard Power Methoddiesel engine
Optional Power MethodsN/A
Motor Sizeheavy duty 18.8 HP diesel engine
Minimum Generator SizeN/A
Gasoline/Diesel Fuel Capacity9 gallon tank
Ignition Systemelectronic direct spark
Power CordsN/A
Heating Methodno.1 or no. 2 heating oil; diesel; or kerosene
Heating Fuel Capacity9 gallons
Heater Exchange Coilheavy duty schedule 80 heating coil
Heater Response Timeconverts cold water to hot water in approximately 30 seconds
Operating Timecontinuous use
Pump Drive Methodbelt drive
Chemical Infusionyes, high pressure injection
Wand Includeddurable 3' trigger wand with quick disconnect
Nozzles Standard0º (blast), 15º, 25º, 40º, steam nozzles
Pressure Hose50' high pressure steam hose
Pressure Hose Optionsadditional/customizable lengths available
Dimensions41"w. x 57"d. x 58"h.
Weight1450 lbs
Housingstainless steel and powder-coated, high gloss, chip/chemical resistant
Colorblack and silver
Phosphatizing Systemoptional - call for pricing
Acid/Phosphate Chemical FeedN/A
Trailer Mountwheels removed - same price
Multi-Gun Operationoptional - call for pricing
Wall MountN/A
Wet Sandblasting Systemoptional - call for pricing
Applications



  • Agricultural and Farm Equipment Cleaning
  • Airports Steam Cleaners
  • Brick Cleaning
  • Bus Washing
  • Coils, Condensers Related Cleaning
  • Concrete Cleaning
  • Construction Equipment Cleaning
  • Conveyor Belt Cleaning - Non-Food/Beverage
  • Degreasing Industrial Equipment
  • Drum Cleaning
  • Equipment Cleaning - Non-Food/Beverage Industry
  • Farm Equipment Cleaning
  • Floor and Wall Cleaning - Foodservice Kitchens
  • Forklift Truck Cleaning
  • Heat Exchangers Cleaning
  • Heavy Equipment Cleaning
  • Hood Duct Cleaning - Foodservice Kitchens
  • Ice Dam Removal - Gutters
  • Industrial Equipment Degreasing
  • Kitchen Cleaning - Foodservice Cleaning Contractors
  • Kitchen Cleaning - Foodservice Operators
  • Machine Shop Equipment Degreasing
  • Metal Degreasing
  • Metal Working Equipment Cleaning
  • Oil Rig Platform Cleaning
  • Paint Removal (Small Areas)
  • Parking Lot Cleaning (Concrete)
  • Parts Washing
  • Rust Removal (Small Areas)
  • Shower Cleaning - Commercial
  • Sidewalk Cleaning (Concrete)
  • Supermarket Carts Cleaning Disinfection
  • Swimming Pool Tile Cleaning
  • Truck Washing
  • Walls Floors Degreasing
  • Wheelchair Cleaning



Parts List

PARTS LIST

Standard Parts / Quantity

3' Durable Trigger Wand with Quick Disconnect
1
0º (Blast) Nozzle (not shown)
1
15º Nozzle (not shown)
1
25º Nozzle (not shown)
1
40º Nozzle (not shown)
1
Steam Nozzle (not shown)
1
50' High Pressure Steam Hose (not shown)
1

Video

Brochure

Applications



  • Agricultural and Farm Equipment Cleaning
  • Airports Steam Cleaners
  • Brick Cleaning
  • Bus Washing
  • Coils, Condensers Related Cleaning
  • Concrete Cleaning
  • Construction Equipment Cleaning
  • Conveyor Belt Cleaning - Non-Food/Beverage
  • Degreasing Industrial Equipment
  • Drum Cleaning
  • Equipment Cleaning - Non-Food/Beverage Industry
  • Farm Equipment Cleaning
  • Floor and Wall Cleaning - Foodservice Kitchens
  • Forklift Truck Cleaning
  • Heat Exchangers Cleaning
  • Heavy Equipment Cleaning
  • Hood Duct Cleaning - Foodservice Kitchens
  • Ice Dam Removal - Gutters
  • Industrial Equipment Degreasing
  • Kitchen Cleaning - Foodservice Cleaning Contractors
  • Kitchen Cleaning - Foodservice Operators
  • Machine Shop Equipment Degreasing
  • Metal Degreasing
  • Metal Working Equipment Cleaning
  • Oil Rig Platform Cleaning
  • Paint Removal (Small Areas)
  • Parking Lot Cleaning (Concrete)
  • Parts Washing
  • Rust Removal (Small Areas)
  • Shower Cleaning - Commercial
  • Sidewalk Cleaning (Concrete)
  • Supermarket Carts Cleaning Disinfection
  • Swimming Pool Tile Cleaning
  • Truck Washing
  • Walls Floors Degreasing
  • Wheelchair Cleaning



More on Diesel-Powered Pressure Wash Systems

To tackle the heavy-duty maintenance applications in commercial and industrial settings, you must be empowered with powerful and technologically advanced cleaning machines, such as diesel pressure washers. Leading distributors now offer advanced versions of diesel pressure washers featuring the most innovative cleaning technologies and capabilities.

Daimer® brings you the Super Max™ 12880 DE, an industrial version of a pressure washer that is powered by a heavy duty 25.2 HP diesel engine. This tri-mode pressure washer has temperature options of cold, hot and wet steam. It can generate hot water temperature of up to 210ºF and steam temperature of nearly 330°F. Such industrial pressure washers from Daimer® feature pressure levels of 3000 psi and flow rates of 5 gpm.

Unlike conventional pressure washers that feature low-quality housing, high-grade commercial pressure washers, such as the Super Max™ 12880 DE, come with powder-coated, stainless steel housing. The high-gloss housing of these pressure washers is chemical and chip resistant. Given the heavy duty schedule 80 heating coils, such commercial pressure washers can convert cold water into hot water in just 30 seconds.

If you are interested in purchasing diesel pressure washers or industrial pressure washers for heavy-duty cleaning jobs, then Super Max™ 12880 DE is a great choice.
