Product Name

Super Max 8750 WS

Promotion Till 02/07/12
MSRP: $8,110.00
Special Price: $5,515.00
Made in the USA
This product cannot be ordered online.
Please call us.
Commercial / Industrial Grade

Description

Price excludes freight.

pressure washer, pressure washers

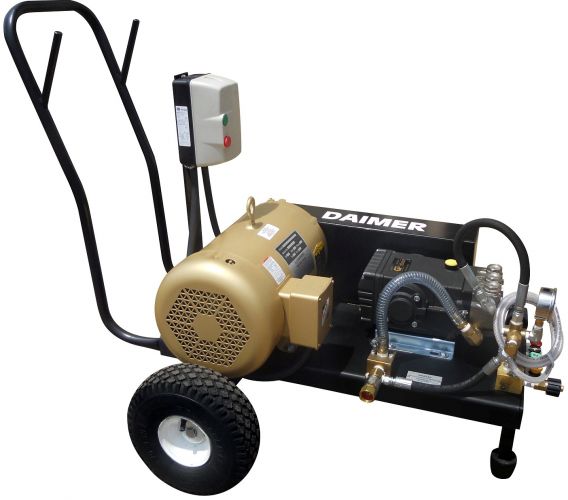

The Super Max8750 WS is a powerful, portable and trailer mountable, electric cold water wet sand blaster pressure washer that features Daimer's exclusive wet sand blaster system for the quick and effective removal of rust, corrosion, paint layers, heavy deposits and other substance from a number of surfaces. By removing layers from the surface, this system can restore them to shiny bare metal. Adding to this capability is the high pressure (3000 psi) and flow rate (5 GPM).

The wet sand blaster system is comprised of only the highest quality components, including: the special venturi head, 15' flexible sand pickup tube and metal sand point. The sand point draws sand into the system directly from the container. The pickup tube carries the sand into the special venturi head where it is mixed with high-pressured water. This mixture exits the system through the special round nozzle and is forced across a surface at high speeds to achieve the desired sandblasting effective. With a specially designed 1 1/2" width spray pattern, Daimer's wet sand blaster machines work best for spot removal of corrosion, rust, and other materials from metal surfaces.

The head contains a proportioning valve to control and adjust the sand flow (water/sand ratio). For added versatility, this system can be used with a range of sand grit sizes and medias, including baking soda and small plastic pellets.

The Super Max™ 8750 WS wet sand blaster pressure washer can be purchased with optional two gun operation for added versatility.

Daimer offers pressure washers in a variety of power configurations for worldwide requirements. The following are available: 110-120V, 208V, 220-240V, 380V, 415V, 440-480V, and 575V; single and three phase; 50 or 60 Hz. Please contact us for pricing.

Product Specifications

Warranty1 year (limited)Water Pump Warranty5 years (limited)Motor/Engine Warranty2 years (limited)
Pressure3000 psi
Flow Rate5 GPM
Temp. Optionscold water
Steam Temp.N/A
Hot Water Temp.Optional support up to 180°F. Call for more information.
Standard Power Methodelectric: 220V-240V, three phase, 60 Hz
Optional Power Methods(call for pricing) 220V-240V, three phase, 50 Hz; & 440V, three phase, 50 or 60 Hz
Motor Sizeheavy duty 10.0 HP - NEMA
Minimum Generator SizeContact Daimer
Gasoline/Diesel Fuel CapacityN/A
Ignition SystemN/A
Power Cords1
Heating MethodN/A
Heating Fuel CapacityN/A
Heater Exchange CoilN/A
Heater Response TimeN/A
Operating Timecontinuous use
Pump Drive Methoddirect drive
Chemical Infusionyes - low pressure injection
Wand Includeddurable 3' trigger wand with quick disconnect
Nozzles Standard0º (blast), 15º, 25º, 40º
Pressure Hose25' high pressure hydraulic hose
Pressure Hose Optionsadditional/customizable lengths available
Dimensions19"w. x 41"d. x 43"h. w/o handle
Weight350 lbs
Housingpowder-coated steel, high gloss, chip/chemical resistant
Colorblack
Phosphatizing SystemN/A
Acid/Phosphate Chemical FeedN/A
Trailer Mountyes - when wheels are removed
Multi-Gun Operationoptional - call for pricing
Wall Mountyes - when wheels are removed
Wet Sandblasting Systemyes

Parts List

PARTS LIST

Standard Parts / Quantity

3' Durable Trigger Wand with Quick Disconnect 1
0º (Blast) Nozzle (not shown) 1
15º Nozzle (not shown) 1
25º Nozzle (not shown) 1
40º Nozzle (not shown) 1
Venturi Nozzle (not shown) 1
25' High Pressure Hydraulic Hose (not shown) 1
Sand Tube (not shown) 1
Pick Up Probe (not shown) 1
