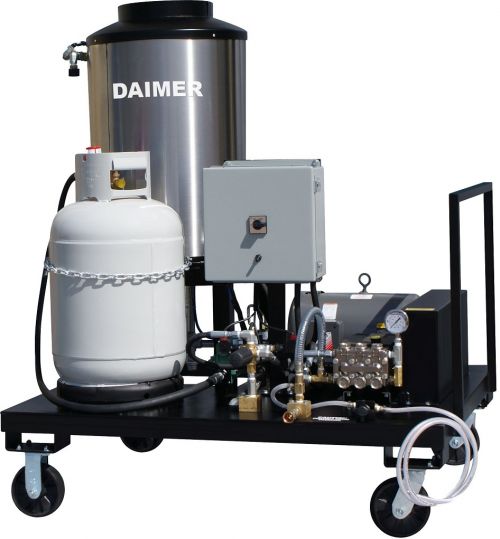

Super Max 12200 Pressure Washer
- The Super Max™ 12200 is an outstanding and versatile truck mounted pressure washer offering higher pressure and flow rate than some of the other Daimer portable industrial machines. Higher pressure and flow rates require a larger machine for the more sizable motor and other components.
- Pressure: 2000 psi
- Flow Rate: 4 GPM
- Power Method: Electric motor
- Heating Method: Propane
- Steam Temperatures: Up to 330ºF
Have a question about this item? Contact us and a sales representative would be glad to help!
Price excludes freight.
Free Skid Configuration for Trailer Mounting
View This Video - Discover Daimer's Absolutely
Outstanding Wet Steam Degreasing Capabilities
The Super Max™ 12200 is a powerful electric propane fired pressure washer with a rugged propane heating system. This tri-mode system can operate independently as a cold pressure washer, hot water pressure washer, or steam pressure washer. With a flow rate of 4 gallons per minute (GPM) at a pressure of 2000 psi, this portable machine is a powerful tool for industrial applications. Optional two gun operation and the ability to use the 12200 as a trailer mounted pressure washer add to the versatility of this tri-mode model. High pressure chemical injection allows users to add cleaning chemicals to enhance the cleaning power of this system. This electric propane fired pressure washer model is ideal for those applications requiring a robust machine that can be used continuously and that would benefit from the high flow rate and pressure offered.
Daimer offers pressure washers in a variety of power configurations for worldwide requirements. The following are available: 110-120V, 208V, 220-240V, 380V, 415V, 440-480V, and 575V; single and three phase; 50 or 60 Hz. Please contact us for pricing.
| System grade | Commercial / Industrial Grade |
| Promotion text on top | Special Limited-Time Promotional Prices Effective Through |
| Pressure | 2000 psi |
| Flow rate | 4 GPM |
| Temp options | cold, hot, wet steam |
| Steam temp | up to 330ºF |
| Hot water temp | 180ºF - 210ºF |
| Standard power method | electric: 220V-240V, single phase, 60 Hz |
| Optional power methods | (call for pricing) 220V-240V, single phase, 50 Hz; 220V-240V three phase, 50 or 60 Hz; & 440V, three phase, 50 or 60 Hz |
| Motor size | heavy duty 5.0 HP - NEMA |
| Minimum generator size | 15000 watts |
| Power cords | 1 |
| Heating method | Propane Burner |
| Heating fuel capacity | 50 lb. empty tank included |
| Heater exchange coil | heavy duty schedule 80 heating coil |
| Heater response time | converts cold to hot water in approximately 30 seconds |
| Operating time | continuous use |
| Pump drive method | shaft drive |
| Chemical infusion | yes, high pressure injection |
| Wand included | durable 3' trigger wand with quick disconnect |
| Nozzles standard | 0º (blast), 15º, 25º, 40º, steam nozzles |
| Pressure hose | 50' high pressure steam hose |
| Pressure hose options | additional/customizable lengths available |
| Dimensions | 48"w. x 41"d. x 50"h. |
| Weight | 900 lbs |
| Housing | steel - powder-coated, high gloss, chip/chemical resistant |
| Color | red and white |
| Warranty | 1 year (limited) |
| Water pump warranty | 5 years (limited) |
| Motorengine warranty | 2 years (limited) |
| Ignition system | electronic direct spark |
| Phosphatizing system | N/A- see Super Max™ 12200 AF |
| Acidphosphate chemical feed | N/A |
| Trailer mount | wheels removed - same price |
| Multi gun operation | optional - call for pricing |
| Wall mount | N/A |
| Wet sandblasting system | optional - call for pricing |
Applications
name="Applications" no-in-invoice="true">- Agricultural and Farm Equipment Cleaning
- Airports Steam Cleaners
- Brick Cleaning
- Bus Washing
- Coils, Condensers Related Cleaning
- Concrete Cleaning
- Construction Equipment Cleaning
- Conveyor Belt Cleaning - Non-Food/Beverage
- Degreasing Industrial Equipment
- Drum Cleaning
- Equipment Cleaning - Non-Food/Beverage Industry
- Farm Equipment Cleaning
- Floor and Wall Cleaning - Foodservice Kitchens
- Forklift Truck Cleaning
- Heat Exchangers Cleaning
- Heavy Equipment Cleaning
- Hood Duct Cleaning - Foodservice Kitchens
- Ice Dam Removal - Gutters
- Industrial Equipment Degreasing
- Kitchen Cleaning - Foodservice Cleaning Contractors
- Kitchen Cleaning - Foodservice Operators
- Machine Shop Equipment Degreasing
- Metal Degreasing
- Metal Working Equipment Cleaning
- Oil Rig Platform Cleaning
- Paint Removal (Small Areas)
- Parking Lot Cleaning (Concrete)
- Parts Washing
- Rust Removal (Small Areas)
- Shower Cleaning - Commercial
- Sidewalk Cleaning (Concrete)
- Supermarket Carts Cleaning Disinfection
- Swimming Pool Tile Cleaning
- Truck Washing
- Walls Floors Degreasing
- Wheelchair Cleaning
PARTS LIST
Standard Parts / Quantity
| 3' Durable Trigger Wand with Quick Disconnect | 1 |
| 0º (Blast) Nozzle (not shown) | 1 |
| 15º Nozzle (not shown) | 1 |
| 25º Nozzle (not shown) | 1 |
| 40º Nozzle (not shown) | 1 |
| Steam Nozzle (not shown) | 1 |
| 50' High Pressure Steam Hose (not shown) | 1 |
