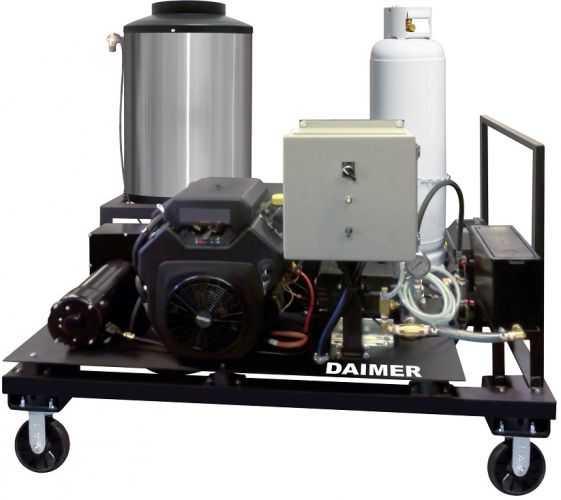

Super Max 12400 PE Pressure Washer
The Super Max™ 12400 PE is a 100% propane commercial pressure cleaner.
- The unit offers a pressure level of 3000 PSI, a flow rate of 4 GPM, and steam temperatures of as much as 330°F.
- The powerful cleaning action comes from its heavy duty, electric start 20.0 HP propane engine.
- The more eco-safe system is ideal for various cleaning tasks both inside and outside.
Have a question about this item? Contact us and a sales representative would be glad to help!
Price excludes freight.
Free Skid Configuration for Trailer Mounting
View This Video - Discover Daimer's Absolutely
Outstanding Wet Steam Degreasing Capabilities
The Super Max™ 12400 PE is a tri-mode system that can be independently used as a cold water pressure washer, hot water pressure washer, or steam pressure washer. The machine offers complete autonomy of cords to a power source as in the case of an electrically powered washers.
The 12400 PE is powered by a 20 HP propane engine , and offers a flow rate of 4 GPM at a pressure level of 3000 psi. The system is ideal for demanding indoor as well as outdoor applications. Two gun operation is an available option on the 12400 PE. Additionally, the system is ideal for those customers that use propane regularly or simply prefer propane to gasoline.
Daimer offers pressure washers in a variety of power configurations for worldwide requirements. The following are available: 110-120V, 208V, 220-240V, 380V, 415V, 440-480V, and 575V; single and three phase; 50 or 60 Hz. Please contact us for pricing.
| System grade | Commercial / Industrial Grade |
| Promotion text on top | Special Limited-Time Promotional Prices Effective Through |
| Pressure | 3000 PSI |
| Flow rate | 4 GPM |
| Temp options | cold, hot, wet steam |
| Steam temp | up to 330ºF |
| Hot water temp | 180ºF - 210ºF |
| Standard power method | propane (LPG) engine (50lb empty tank included) |
| Optional power methods | N/A |
| Motor size | heavy duty 20.0 HP propane engine |
| Minimum generator size | N/A |
| Power cords | N/A |
| Heating method | Propane |
| Heating fuel capacity | 50 lb. empty tank included |
| Heater exchange coil | heavy duty schedule 80 heating coil |
| Heater response time | converts cold water to hot water in approximately 30 seconds |
| Operating time | continuous use |
| Pump drive method | shaft drive |
| Chemical infusion | yes, high pressure injection |
| Wand included | durable 3' trigger wand with quick disconnect |
| Nozzles standard | 0º (blast), 15º, 25º, 40º, steam nozzles |
| Pressure hose | 50' high pressure steam hose |
| Pressure hose options | additional/customizable lengths available |
| Dimensions | 57"w. x 41"d. x 58"h. |
| Weight | 1000 lbs |
| Housing | steel - powder-coated, high gloss, chip/chemical resistant |
| Color | red and white |
| Warranty | 1 year (limited) |
| Water pump warranty | 5 years (limited) |
| Motorengine warranty | 2 years (limited) |
| Ignition system | electronic direct spark |
| Phosphatizing system | N/A- see Super Max 12500 PE AF |
| Acidphosphate chemical feed | N/A |
| Trailer mount | yes - when wheels are removed |
| Multi gun operation | optional - call for pricing |
| Wall mount | N/A |
| Wet sandblasting system | optional - call for pricing |
Applications
- Agricultural and Farm Equipment Cleaning
- Airports Steam Cleaners
- Brick Cleaning
- Bus Washing
- Coils, Condensers Related Cleaning
- Concrete Cleaning
- Construction Equipment Cleaning
- Conveyor Belt Cleaning - Non-Food/Beverage
- Degreasing Industrial Equipment
- Drum Cleaning
- Equipment Cleaning - Non-Food/Beverage Industry
- Farm Equipment Cleaning
- Floor and Wall Cleaning - Foodservice Kitchens
- Forklift Truck Cleaning
- Heat Exchangers Cleaning
- Heavy Equipment Cleaning
- Hood Duct Cleaning - Foodservice Kitchens
- Ice Dam Removal - Gutters
- Industrial Equipment Degreasing
- Kitchen Cleaning - Foodservice Cleaning Contractors
- Kitchen Cleaning - Foodservice Operators
- Machine Shop Equipment Degreasing
- Metal Degreasing
- Metal Working Equipment Cleaning
- Oil Rig Platform Cleaning
- Paint Removal (Small Areas)
- Parking Lot Cleaning (Concrete)
- Parts Washing
- Rust Removal (Small Areas)
- Shower Cleaning - Commercial
- Sidewalk Cleaning (Concrete)
- Supermarket Carts Cleaning Disinfection
- Swimming Pool Tile Cleaning
- Truck Washing
- Walls Floors Degreasing
- Wheelchair Cleaning
PARTS LIST
Standard Parts / Quantity
| 3' Durable Trigger Wand with Quick Disconnect | 1 |
| 0º (Blast) Nozzle (not shown) | 1 |
| 15º Nozzle (not shown) | 1 |
| 25º Nozzle (not shown) | 1 |
| 40º Nozzle (not shown) | 1 |
| Steam Nozzle (not shown) | 1 |
| 50' High Pressure Steam Hose (not shown) | 1 |
