Super Max 12885 DE

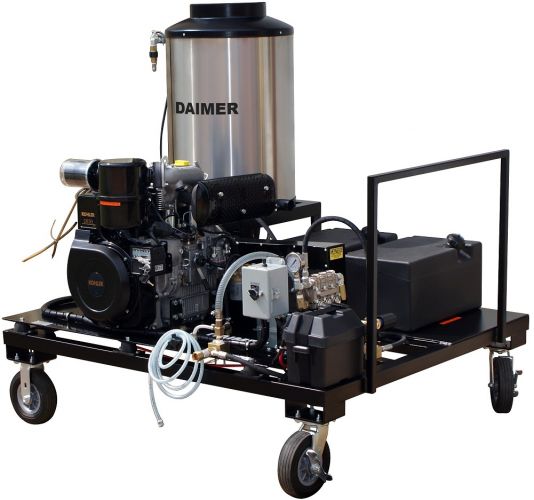

The Super Max™ 12885 DE is a powerful 100% diesel pressure washer.
- The 12885 DE has a pressure level of 4000 PSI and a 5 GPM flow rate. The unit offers steam temperatures of up to 330°F and hot water temperatures of up to 210°F.
- The multi-functional machine is powered by a heavy duty 25.2 HP diesel engine, which is rugged and can withstand the rigors of industrial cleaning.
Have a question about this item? Contact us and a sales representative would be glad to help!
Price excludes freight.
View This Video - Discover Daimer's Absolutely
Outstanding Wet Steam Degreasing Capabilities
Expanding on the immense power and diesel functionality of the 12880 DE, the Super Max™ 12885 DE is Daimer's most powerful diesel pressure washer offering an astoundingly high pressure level of 4000 psi and a flow rate of 5 GPM.
Versatility stems from variable temperature options, including: cold water (room temperature), hot water (up to 210°F), and steam (up to 330°F). Other options include various heating methods, optional multi-user support, and more.
Powered by diesel, this system is ideal for outdoor applications where electricity may not be available. The diesel option is designed for those who prefer diesel to gasoline. To use this machine for indoor applications, place the system outdoors or in an exhaust-friendly environment and use long hoses to reach the application. Daimer's Long Hose Technology ensures optimal power even when using hoses up to 300 ft. in length.
Daimer offers pressure washers in a variety of power configurations for worldwide requirements. The following are available: 110-120V, 208V, 220-240V, 380V, 415V, 440-480V, and 575V; single and three phase; 50 or 60 Hz. Please contact us for pricing.
| System grade | Commercial / Industrial Grade |
| Promotion text on top | Special Limited-Time Promotional Prices Effective Through |
| Pressure | 4000 PSI |
| Flow rate | 5 GPM |
| Temp options | cold, hot, wet steam |
| Steam temp | up to 330ºF |
| Hot water temp | 180ºF - 210ºF |
| Standard power method | diesel engine |
| Optional power methods | N/A |
| Motor size | heavy duty 25.2 HP diesel engine |
| Minimum generator size | N/A |
| Power cords | N/A |
| Heating method | Diesel |
| Heating fuel capacity | 9 gallons |
| Heater exchange coil | heavy duty schedule 80 heating coil |
| Heater response time | converts cold water to hot water in approximately 30 seconds |
| Operating time | continuous use |
| Pump drive method | belt drive |
| Chemical infusion | yes, high pressure injection |
| Wand included | durable 3' trigger wand with quick disconnect |
| Nozzles standard | 0º (blast), 15º, 25º, 40º, steam nozzles |
| Pressure hose | 50' high pressure steam hose |
| Pressure hose options | additional/customizable lengths available |
| Dimensions | 41"w. x 57"d. x 58"h. |
| Weight | 950 lbs |
| Housing | stainless steel and powder-coated, high gloss, chip/chemical resistant |
| Color | black and silver |
| Warranty | 1 year (limited) |
| Water pump warranty | 5 years (limited) |
| Motorengine warranty | 2 years (limited) |
| Ignition system | electronic direct spark |
| Phosphatizing system | optional - call for pricing |
| Acidphosphate chemical feed | N/A |
| Trailer mount | wheels removed - same price |
| Multi gun operation | optional - call for pricing |
| Wall mount | N/A |
| Wet sandblasting system | optional - call for pricing |
Applications
PARTS LIST
Standard Parts / Quantity
| 3' Durable Trigger Wand with Quick Disconnect | 1 |
| 0º (Blast) Nozzle (not shown) | 1 |
| 15º Nozzle (not shown) | 1 |
| 25º Nozzle (not shown) | 1 |
| 40º Nozzle (not shown) | 1 |
| Steam Nozzle (not shown) | 1 |
| 50' High Pressure Steam Hose (not shown) | 1 |
