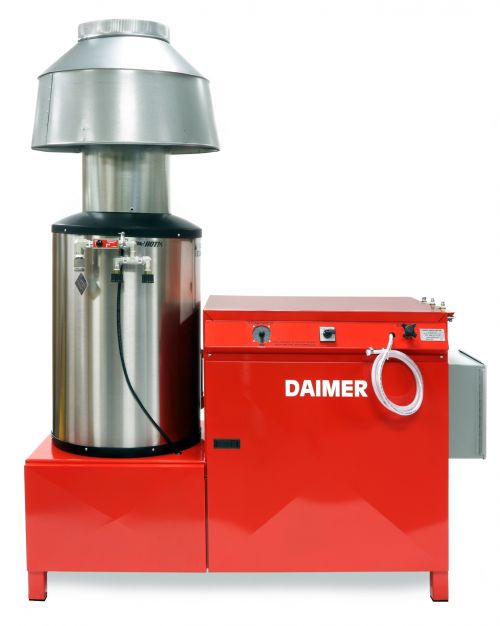

Super Max 15400 Pressure Washer
The Super Max™ 15400 is a stationary, electric powered tri-mode steam natural gas, propane, oil heated pressure washer that offers the same selectable heating options (heating oil, diesel, kerosene, natural gas, or propane) and the same steam and hot water temperatures (as high as 330°F) as the 15200. However, the Super Max™ 15400 offers a higher flow rate (3 GPM) and lower pressure level (700 psi) than the 15200, making this model ideal for those applications requiring the addition of a pressure washer, but at a lower pressure for less robust cleaning.
Have a question about this item? Contact us and a sales representative would be glad to help!
Price excludes freight.
View This Video - Discover Daimer's Absolutely
Outstanding Wet Steam Degreasing Capabilities
The Super Max™ 15400 is a stationary, tri-mode electric Steam Natural Gas, Propane, Oil Heated Pressure Washer that offers cold water, hot water, and steam pressure washing with steam temperatures up to 330º F. Like the 15200, the 15400 is an electrically powered unit available with: no.1 or no. 2 heating oil, diesel, kerosene, natural gas, or propane heating. The 15400, however, offers a higher flow rate (3 GPM) and lower pressure (700psi) than the 15200 and is ideal for industrial/commercial applications that would benefit from the addition of a permanent pressure washing system, but that need a lower pressure than that offered by the 15200. Available options include: two gun operation.
Daimer offers pressure washers in a variety of power configurations for worldwide requirements. The following are available: 110-120V, 208V, 220-240V, 380V, 415V, 440-480V, and 575V; single and three phase; 50 or 60 Hz. Please contact us for pricing.
| System grade | Commercial / Industrial Grade |
| Promotion text on top | Special Limited-Time Promotional Prices Effective Through |
| Pressure | 700 PSI |
| Flow rate | 3 GPM |
| Temp options | cold, hot, wet steam |
| Steam temp | up to 330ºF |
| Hot water temp | 180ºF - 210ºF |
| Standard power method | electric: 110V-120V, single phase, 60 Hz |
| Optional power methods | (call for pricing) 110V-120V, single phase, 50 Hz; 220V-240V, single phase, 50 or 60 Hz; 220V-240V three phase, 50 or 60 Hz; & 440V, three phase, 50 or 60 Hz |
| Motor size | heavy duty 2.0 HP - NEMA |
| Minimum generator size | N/A |
| Power cords | 1 |
| Heating method | Oil / diesel / kerosene / natural gas / propane (selectable) |
| Heating fuel capacity | 9 gallons (heating oil, kerosene, or diesel) |
| Heater exchange coil | heavy duty schedule 80 Heating Coil |
| Heater response time | converts cold water to hot water in approximately 30 seconds |
| Operating time | continuous use |
| Pump drive method | direct drive |
| Chemical infusion | yes, high pressure injection |
| Wand included | durable 3' trigger wand with quick disconnect |
| Nozzles standard | 0º (blast), 15º, 25º, 40º, steam nozzles |
| Pressure hose | 25' high pressure steam hose |
| Pressure hose options | additional/customizable lengths available |
| Dimensions | 52"w. x 23"d. x 50"h. |
| Weight | 950 lbs |
| Housing | powder-coated steel, high gloss, chip/chemical resistant |
| Color | red and white |
| Warranty | 1 year (limited)` |
| Water pump warranty | 3 years (limited) |
| Motorengine warranty | 2 years (limited) |
| Ignition system | electronic direct spark |
| Phosphatizing system | N/A- see Super Max 15400 AF |
| Acidphosphate chemical feed | N/A |
| Trailer mount | N/A |
| Multi gun operation | optional - call for pricing |
| Wall mount | N/A |
| Wet sandblasting system | optional - call for pricing |
Applications
PARTS LIST
Standard Parts / Quantity
| 3' Durable Trigger Wand with Quick Disconnect | 1 |
| 0º (Blast) Nozzle (not shown) | 1 |
| 15º Nozzle (not shown) | 1 |
| 25º Nozzle (not shown) | 1 |
| 40º Nozzle (not shown) | 1 |
| Steam Nozzle (not shown) | 1 |
| 50' High Pressure Steam Hose (not shown) | 1 |
