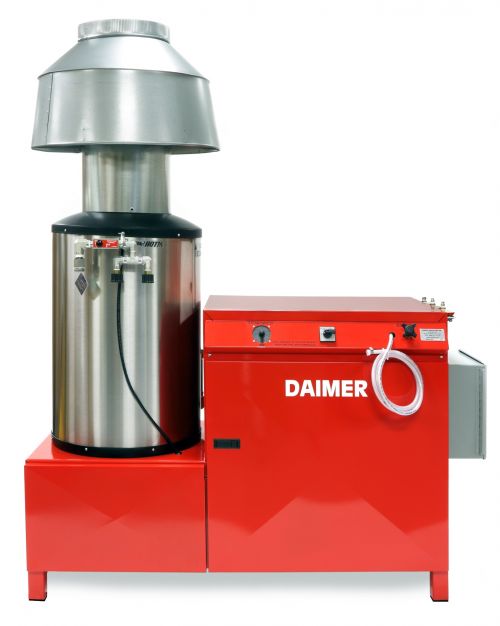

Super Max 15800 Pressure Washer
The Super Max™ 15800 is a stationary, tri-mode electric pressure washer that offers the same available cold water, hot water (210°F), and steam (330°F) temperature options as other 15000 series models with a flow rate of 4 GPM at a pressure of 2000 psi. Like other 15000 series pressure washers, Super Max 15800 can be purchased with two gun operation.
Have a question about this item? Contact us and a sales representative would be glad to help!
Price excludes freight.
View This Video - Discover Daimer's Absolutely
Outstanding Wet Steam Degreasing Capabilities
The Super Max™ 15800 is a stationary, tri-mode electric pressure washer that offers a lower flow rate (4 GPM) but higher pressure (2000 psi) than the 15700. The same heating options as other 15000 series models (no. 1 or no. 2 heating oil, diesel, kerosene, natural gas, and propane) are available on the 15800. The Super Max™ 15800 can also purchased with two gun operation. This model is ideal for those commercial/industrial applications that would benefit from having multiple operators, are involved in metallic powder coating, and/or require sandblasting capability and those that require more power than offered on the 15700.
Daimer offers pressure washers in a variety of power configurations for worldwide requirements. The following are available: 110-120V, 208V, 220-240V, 380V, 415V, 440-480V, and 575V; single and three phase; 50 or 60 Hz. Please contact us for pricing.
| System grade | Commercial / Industrial Grade |
| Promotion text on top | Special Limited-Time Promotional Prices Effective Through |
| Pressure | 2000 PSI |
| Flow rate | 4 GPM |
| Temp options | cold, hot, wet steam |
| Steam temp | up to 330ºF |
| Hot water temp | 180ºF - 210ºF |
| Standard power method | electric: 220V-240V, single phase, 60 Hz |
| Optional power methods | (call for pricing) 220V-240V, single phase, 50 Hz; 220V-240V three phase, 50 or 60 Hz; & 440V, three phase, 50 or 60 Hz |
| Motor size | heavy duty 5.0 HP - NEMA |
| Minimum generator size | N/A |
| Power cords | 1 |
| Heating method | Oil / diesel / kerosene / natural gas / propane (selectable) |
| Heating fuel capacity | 9 gallons for OPTIONAL (heating oil, kerosene, or diesel) |
| Heater exchange coil | heavy duty schedule 80 heating coil |
| Heater response time | converts cold water to hot water in approximately 30 seconds |
| Operating time | continuous use |
| Pump drive method | direct drive |
| Chemical infusion | yes, high pressure injection |
| Wand included | durable 3' trigger wand with quick disconnect |
| Nozzles standard | 0º (blast), 15º, 25º, 40º, steam nozzles |
| Pressure hose | 50' high pressure steam hose |
| Pressure hose options | additional/customizable lengths available |
| Dimensions | 52"w. x 23"d. x 50"h. |
| Weight | 1025 lbs |
| Housing | powder-coated steel, high gloss, chip/chemical resistant |
| Color | red and white |
| Warranty | 1 year (limited) |
| Water pump warranty | 5 years (limited) |
| Motorengine warranty | 2 years (limited) |
| Ignition system | electronic direct spark |
| Phosphatizing system | N/A- see Super Max 15800 AF |
| Acidphosphate chemical feed | N/A |
| Trailer mount | N/A |
| Multi gun operation | optional - call for pricing |
| Wall mount | N/A |
| Wet sandblasting system | optional - call for pricing |
Applications
PARTS LIST
Standard Parts / Quantity
| 3' Durable Trigger Wand with Quick Disconnect | 1 |
| 0º (Blast) Nozzle (not shown) | 1 |
| 15º Nozzle (not shown) | 1 |
| 25º Nozzle (not shown) | 1 |
| 40º Nozzle (not shown) | 1 |
| Steam Nozzle (not shown) | 1 |
| 50' High Pressure Steam Hose (not shown) | 1 |
