Super Max 20000

SKU: 125835516
(0)
$67,845.00

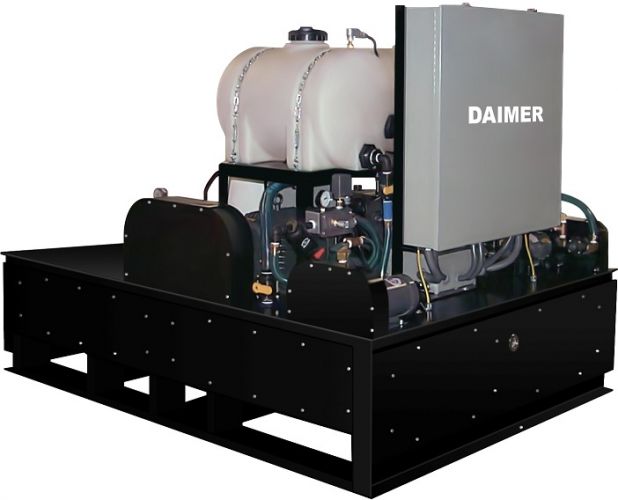

The Super Max™ 20000 is an electric cold pressure washer machine and comes with three remote control stations, allowing simultaneous use of the machine by three operators.

  • The powerful cleaner system offers a high pressure level of 6500 PSI and a flow rate of 8 GPM.
  • The motor is a heavy duty 40.0 HP TEFC Premium Efficient NEMA.
  • The machine uses the standard 460V, three phase, 60 Hz powering method.

Have a question about this item? Contact us and a sales representative would be glad to help!

Price excludes freight.

Ultra Rugged, High Pressure, High Flow

Cold Water Pressure Washer

  • The Super Max™ 20000 is one of the most powerful industrial cold water pressure washer machines offered by Daimer.
  • This high powered cold water pressure washer is driven by a heavy duty 40 H.P. TEFC Premium Efficient NEMA engine
  • 6500 psi at a flow rate of 8 GPM.
  • The systems can be configured to customers' specific needs and consists of three remote control stations, which allows up to three users to simultaneously use the pressure washer machine, with a wall mounted NEMA 4 enclosure.
  • Water Booster Pump: 1.5 HP closed loop centrifugal
  • Guns: 7250 PSI trigger gun and 50 foot, 10,000 PSI rated high pressure hoses
  • Automatic Shutoff Technology™ (AST™) included
  • Frame: Skid platform with corrosion resistant powder coated finish
  • Dimensions: Approximately 90" length x 72" width (we can customized frame sizes if required)
  • Weight: 1725 lbs.
  • An optional wet sandblasting system only adds to the wonderful functionality of this powerful machine. The Super Max™ 20000 industrial cold pressure washer is ideal for extra large cleaning jobs, industrial plants, power plants, or manufacturing facilities with the most demanding pressure washing needs. The high flow rate and pressure combined with multi-user capability make this cold water pressure washer machine the ultimate solution for the most difficult cold water pressure washing applications.

Daimer offers pressure washers in a variety of power configurations for worldwide requirements. The following are available for this model: 380V, 415V, 440-480V, and 575V; three phase; 50 or 60 Hz. Please contact us for pricing.

Warranty 1 year (limited) Water Pump Warranty 5 years (limited) Motor/Engine Warranty 2 years (limited)
System grade Commercial / Industrial Grade
Promotion text on top Special Limited-Time Promotional Prices Effective Through
Pressure 6500 PSI
Flow rate 8 GPM
Temp options cold water
Steam temp N/A
Hot water temp Optional support up to 180°F. Call for more information.
Standard power method 460V, three phase, 60 Hz
Optional power methods N/A
Motor size heavy duty 40 H.P. TEFC motor
Minimum generator size N/A
Power cords 1
Heating method Not Heated
Heating fuel capacity N/A
Heater exchange coil N/A
Heater response time N/A
Operating time continuous use
Pump drive method belt drive
Chemical infusion optional - call
Wand included three durable 3' trigger wands with quick disconnect
Nozzles standard 0º (blast), 15º, 25º, 40º
Pressure hose three 50' high pressure hydraulic hoses (one for each wand)
Pressure hose options additional/customizable lengths available
Dimensions variable - depending upon configuration
Weight 2000 lbs
Housing powder coated carbon steel frame
Color black
Warranty 1 year (limited)
Water pump warranty 5 years (limited)
Motorengine warranty 2 years (limited)
Ignition system N/A
Phosphatizing system N/A
Acidphosphate chemical feed N/A
Trailer mount N/A
Multi gun operation three gun operation standard
Wall mount wall mounted NEMA 4 enclosure
Wet sandblasting system optional - call for pricing
Applications


PARTS LIST

Standard Parts / Quantity

3' Durable Trigger Wand with Quick Disconnect 3
0º (Blast) Nozzle 3
15º Nozzle 3
25º Nozzle 3
40º Nozzle 3
Steam Nozzle 3
50' High Pressure Steam Hose 3
