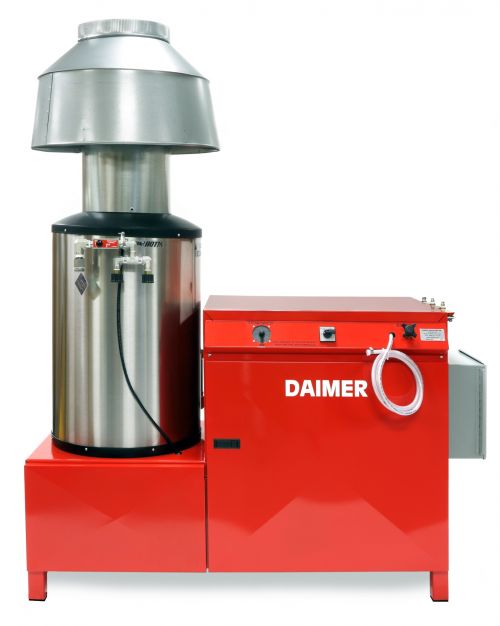

The Super Max™ 15800 is a stationary, tri-mode electric pressure washer that offers a lower flow rate (4 GPM) but higher pressure (2000 psi) than the 15700. The same heating options as other 15000 series models (no. 1 or no. 2 heating oil, diesel, kerosene, natural gas, and propane) are available on the 15800. The Super Max™ 15800 can also purchased with two gun operation. This model is ideal for those commercial/industrial applications that would benefit from having multiple
operators, are involved in metallic powder coating, and/or require sandblasting capability and those that require more power than offered on the 15700.
Daimer offers pressure washers in a variety of power configurations for worldwide requirements. The following are available: 110-120V, 208V, 220-240V, 380V, 415V, 440-480V, and 575V; single and three phase; 50 or 60 Hz. Please contact us for pricing.
Product Specifications
Warranty1 year (limited)Water Pump Warranty5 years (limited)Motor/Engine Warranty2 years (limited)
Pressure
2000 psi
Flow Rate
4 GPM
Temp. Options
cold, hot, wet steam
Steam Temp.
up to 330ºF
Hot Water Temp.
180ºF - 210ºF
Standard Power Method
electric: 220V-240V, single phase, 60 Hz
Optional Power Methods
(call for pricing) 220V-240V, single phase, 50 Hz; 220V-240V three phase, 50 or 60 Hz; & 440V, three phase, 50 or 60 Hz
Motor Size
heavy duty 5.0 HP - NEMA
Minimum Generator Size
N/A
Gasoline/Diesel Fuel Capacity
N/A
Ignition System
electronic direct spark
Power Cords
1
Heating Method
no.1 or no. 2 heating oil; diesel; kerosene; natural gas (requires natural gas line); or propane (customer provides vapor withdrawal cylinder)
Heating Fuel Capacity
9 gallons (heating oil, kerosene, or diesel)
Heater Exchange Coil
heavy duty schedule 80 heating coil
Heater Response Time
converts cold water to hot water in approximately 30 seconds
Operating Time
continuous use
Pump Drive Method
direct drive
Chemical Infusion
yes, high pressure injection
Wand Included
durable 3' trigger wand with quick disconnect
Nozzles Standard
0º (blast), 15º, 25º, 40º, steam nozzles
Pressure Hose
50' high pressure steam hose
Pressure Hose Options
additional/customizable lengths available
Dimensions
52"w. x 23"d. x 50"h.
Weight
1025 lbs
Housing
powder-coated steel, high gloss, chip/chemical resistant
