Daimer
SM-15700-216DH
USD
Daimer
VoltageHeating FuelPrice Call to order
230V, single phase, 60HzNatural Gas OR Propane$8,693.00 1-800-471-7157

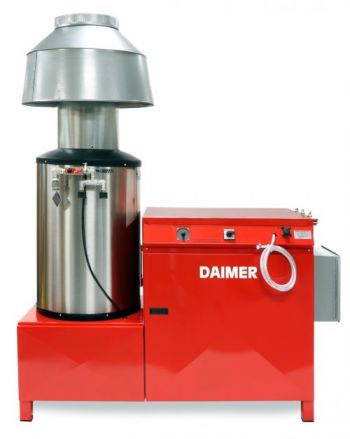

The Super Max™ 15700 is a stationary, tri-mode electric pressure washer with steam temperatures up to 330°F and a flow rate of 5 GPM at a pressure of 1500 psi. Available options for the Super Max 15700 pressure washers include two gun operation.

Have a question about this item?
Contact us and a sales representative would be glad to help!

Description

Price excludes freight.

View This Video - Discover Daimer's Absolutely

Outstanding Wet Steam Degreasing Capabilities

Loading the player…

pressure washer, pressure washers

The Super Max™ 15700 is a stationary, tri-mode electric pressure washer that builds upon the features of the 15500. The same heating options are available as other models (no.1 or no.2 heating oil, diesel, kerosene, natural gas, or propane), as well as the ability to use this machine as a cold water, hot water, or steam pressure washer. However, the 15700 offers a higher flow rate (5 GPM) and pressure (1500 psi) than the 15500. Like all 15000 series models, the 15700 can be purchased with optional two gun operation. This model is ideal for commercial/industrial applications that require the permanent addition of a powerful tri-mode electric pressure washer and that have power requirements beyond the 15500.

Daimer offers pressure washers in a variety of power configurations for worldwide requirements. The following are available: 110-120V, 208V, 220-240V, 380V, 415V, 440-480V, and 575V; single and three phase; 50 or 60 Hz. Please contact us for pricing.

Product Specifications

Warranty1 year (limited)Water Pump Warranty5 years (limited)Motor/Engine Warranty2 years (limited)
Pressure1500 psi
Flow Rate5 GPM
Temp. Optionscold, hot, wet steam
Steam Temp.up to 330ºF
Hot Water Temp.180ºF - 210ºF
Standard Power Methodelectric: 220V-240V, single phase, 60 Hz
Optional Power Methods(call for pricing) 220V-240V, single phase, 50 Hz; 220V-240V three phase, 50 or 60 Hz; & 440V, three phase, 50 or 60 Hz
Motor Sizeheavy duty 5.0 HP - NEMA
Minimum Generator SizeN/A
Gasoline/Diesel Fuel CapacityN/A
Ignition Systemelectronic direct spark
Power Cords1
Heating Methodnatural gas (requires natural gas line); or propane (customer provides vapor withdrawal cylinder) (OPTIONAL no.1 or no. 2 heating oil; diesel or kerosene - CALL FOR PRICING)
Heating Fuel Capacity9 gallons for OPTIONAL (heating oil, kerosene, or diesel)
Heater Exchange Coilheavy duty schedule 80 heating coil
Heater Response Timeconverts cold water to hot water in approximately 30 seconds
Operating Timecontinuous use
Pump Drive Methoddirect drive
Chemical Infusionyes, high pressure injection
Wand Includeddurable 3' trigger wand with quick disconnect
Nozzles Standard0º (blast), 15º, 25º, 40º, steam nozzles
Pressure Hose50' high pressure steam hose
Pressure Hose Optionsadditional/customizable lengths available
Dimensions52"w. x 23"d. x 50"h.
Weight1025 lbs
Housingsteel - powder-coated, high gloss, chip/chemical resistant
Colorred and white
Phosphatizing SystemN/A- see Super Max 15700 AF
Acid/Phosphate Chemical FeedN/A
Trailer MountN/A
Multi-Gun Operationoptional - call for pricing
Wall MountN/A
Wet Sandblasting Systemoptional - call for pricing
Applications

  • Agricultural and Farm Equpment Cleaning
  • Airports Steam Cleaners
  • Brick Cleaning
  • Bus Washing
  • Coils, Condensers Related Cleaning
  • Concrete Cleaning
  • Construction Equipment Cleaning
  • Conveyor Belt Cleaning - Non-Food/Beverage
  • Degreasing Industrial Equipment
  • Drum Cleaning
  • Equipment Cleaning - Non-Food/Beverage Industry
  • Farm Equipment Cleaning
  • Floor and Wall Cleaning - Foodservice Kitchens
  • Forklift Truck Cleaning
  • Heat Exchangers Cleaning
  • Heavy Equipment Cleaning
  • Hood Duct Cleaning - Foodservice Kitchens
  • Ice Dam Removal - Gutters
  • Industrial Equipment Degreasing
  • Kitchen Cleaning - Foodservice Cleaning Contractors
  • Kitchen Cleaning - Foodservice Operators
  • Machine Shop Equipment Degreasing
  • Metal Degreasing
  • Metal Working Equipment Cleaning
  • Oil Rig Platform Cleaning
  • Paint Removal (Small Areas)
  • Parking Lot Cleaning (Concrete)
  • Parts Washing
  • Rust Removal (Small Areas)
  • Shower Cleaning - Commercial
  • Sidewalk Cleaning (Concrete)
  • Supermarket Carts Cleaning Disinfection
  • Swimming Pool Tile Cleaning
  • Truck Washing
  • Walls Floors Degreasing
  • Wheelchair Cleaning

Parts List

PARTS LIST

Standard Parts / Quantity

3' Durable Trigger Wand with Quick Disconnect 1
0º (Blast) Nozzle (not shown) 1
15º Nozzle (not shown) 1
25º Nozzle (not shown) 1
40º Nozzle (not shown) 1
Steam Nozzle (not shown) 1
50' High Pressure Steam Hose (not shown) 1

Video

Brochure

Applications

  • Agricultural and Farm Equpment Cleaning
  • Airports Steam Cleaners
  • Brick Cleaning
  • Bus Washing
  • Coils, Condensers Related Cleaning
  • Concrete Cleaning
  • Construction Equipment Cleaning
  • Conveyor Belt Cleaning - Non-Food/Beverage
  • Degreasing Industrial Equipment
  • Drum Cleaning
  • Equipment Cleaning - Non-Food/Beverage Industry
  • Farm Equipment Cleaning
  • Floor and Wall Cleaning - Foodservice Kitchens
  • Forklift Truck Cleaning
  • Heat Exchangers Cleaning
  • Heavy Equipment Cleaning
  • Hood Duct Cleaning - Foodservice Kitchens
  • Ice Dam Removal - Gutters
  • Industrial Equipment Degreasing
  • Kitchen Cleaning - Foodservice Cleaning Contractors
  • Kitchen Cleaning - Foodservice Operators
  • Machine Shop Equipment Degreasing
  • Metal Degreasing
  • Metal Working Equipment Cleaning
  • Oil Rig Platform Cleaning
  • Paint Removal (Small Areas)
  • Parking Lot Cleaning (Concrete)
  • Parts Washing
  • Rust Removal (Small Areas)
  • Shower Cleaning - Commercial
  • Sidewalk Cleaning (Concrete)
  • Supermarket Carts Cleaning Disinfection
  • Swimming Pool Tile Cleaning
  • Truck Washing
  • Walls Floors Degreasing
  • Wheelchair Cleaning

Use of New-Gen Power Cleaning Systems For Industrial Maintenance

The huge volume of dust, dirt, and grime accumulated by commercial and industrial settings call for advanced cleaning technologies, such as the ones offered by pressure washers, especially industrial pressure washers. The latest pressure washing machines available from leading suppliers now feature everything you could probably wish for. Some of the features include rugged construction, quality components, tri-mode functions, double-gun operation, and high pressure levels.

The Super Max™ 15700 is an electric pressure washer from Daimer® with triple-mode capabilities. This pressure washer generates wet steam at temperatures of up to 330ºF and hot water at temperatures ranging from 180ºF to 210ºF. Powered by a heavy-duty 5.0 HP NEMA engine, this pressure washing machine attains pressure levels of 1500 psi and flow rates of 5 gpm.

Conventional pressure washer machines come with low-grade housing made from aluminum or poor quality plastic. As a result, the housing of these pressure washers is less durable and wears away easily. On the other hand, the best electric pressure washers, such as the Super Max™ 15700, come with steel housings. Consequently, this electric pressure washer is durable enough to withstand the demanding applications in industrial settings. The high gloss housing of these pressure cleaner systems is chip and chemical resistant.

In addition to the stationary configurations, pressure washer machines and commercial pressure washers, such as the Super Max™ 15700, are also empowered with an optional two gun operation. The schedule 80 heating coils help this pressure washing machine to convert cold water into hot water in approximately 30 seconds. For enhanced cleaning action, this pressure washer comes with steam nozzles and a trigger wand.
