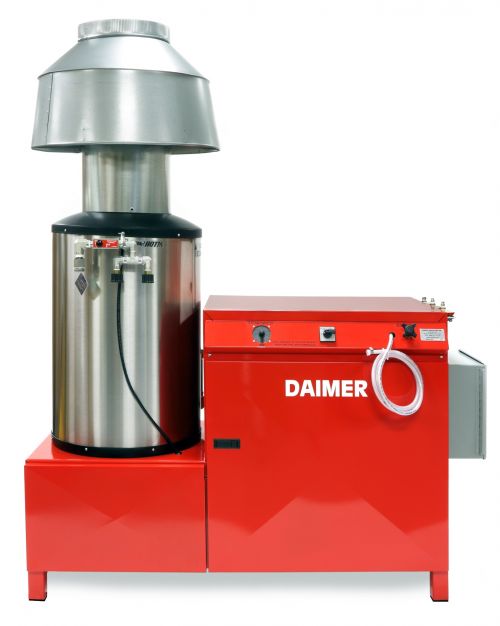

Super Max 15700 Pressure Washer
The Super Max™ 15700 is a stationary, tri-mode electric pressure washer with steam temperatures up to 330°F and a flow rate of 5 GPM at a pressure of 1500 psi. Available options for the Super Max 15700 pressure washers include two gun operation.
Have a question about this item? Contact us and a sales representative would be glad to help!
Price excludes freight.
View This Video - Discover Daimer's Absolutely
Outstanding Wet Steam Degreasing Capabilities
The Super Max™ 15700 is a stationary, tri-mode electric pressure washer that builds upon the features of the 15500. The same heating options are available as other models (no.1 or no.2 heating oil, diesel, kerosene, natural gas, or propane), as well as the ability to use this machine as a cold water, hot water, or steam pressure washer. However, the 15700 offers a higher flow rate (5 GPM) and pressure (1500 psi) than the 15500. Like all 15000 series models, the 15700 can be purchased with optional two gun operation. This model is ideal for commercial/industrial applications that require the permanent addition of a powerful tri-mode electric pressure washer and that have power requirements beyond the 15500.
Daimer offers pressure washers in a variety of power configurations for worldwide requirements. The following are available: 110-120V, 208V, 220-240V, 380V, 415V, 440-480V, and 575V; single and three phase; 50 or 60 Hz. Please contact us for pricing.
| System grade | Commercial / Industrial Grade |
| Promotion text on top | Special Limited-Time Promotional Prices Effective Through |
| Pressure | 1500 SPI |
| Flow rate | 5 GPM |
| Temp options | cold, hot, wet steam |
| Steam temp | up to 330ºF |
| Hot water temp | 180ºF - 210ºF |
| Standard power method | electric: 220V-240V, single phase, 60 Hz |
| Optional power methods | (call for pricing) 220V-240V, single phase, 50 Hz; 220V-240V three phase, 50 or 60 Hz; & 440V, three phase, 50 or 60 Hz |
| Motor size | heavy duty 5.0 HP - NEMA |
| Minimum generator size | N/A |
| Power cords | 1 |
| Heating method | Oil / diesel / kerosene / natural gas / propane (selectable) |
| Heating fuel capacity | 9 gallons for OPTIONAL (heating oil, kerosene, or diesel) |
| Heater exchange coil | heavy duty schedule 80 heating coil |
| Heater response time | converts cold water to hot water in approximately 30 seconds |
| Operating time | continuous use |
| Pump drive method | direct drive |
| Chemical infusion | yes, high pressure injection |
| Wand included | durable 3' trigger wand with quick disconnect |
| Nozzles standard | 0º (blast), 15º, 25º, 40º, steam nozzles |
| Pressure hose | 50' high pressure steam hose |
| Pressure hose options | additional/customizable lengths available |
| Dimensions | 52"w. x 23"d. x 50"h. |
| Weight | 1025 lbs |
| Housing | steel - powder-coated, high gloss, chip/chemical resistant |
| Color | red and white |
| Warranty | 1 year (limited) |
| Water pump warranty | 5 years (limited) |
| Motorengine warranty | 2 years (limited) |
| Ignition system | electronic direct spark |
| Phosphatizing system | N/A- see Super Max 15700 AF |
| Acidphosphate chemical feed | N/A |
| Trailer mount | N/A |
| Multi gun operation | optional - call for pricing |
| Wall mount | N/A |
| Wet sandblasting system | optional - call for pricing |
Applications
name="Applications" no-in-invoice="true">- Agricultural and Farm Equpment Cleaning
- Airports Steam Cleaners
- Brick Cleaning
- Bus Washing
- Coils, Condensers Related Cleaning
- Concrete Cleaning
- Construction Equipment Cleaning
- Conveyor Belt Cleaning - Non-Food/Beverage
- Degreasing Industrial Equipment
- Drum Cleaning
- Equipment Cleaning - Non-Food/Beverage Industry
- Farm Equipment Cleaning
- Floor and Wall Cleaning - Foodservice Kitchens
- Forklift Truck Cleaning
- Heat Exchangers Cleaning
- Heavy Equipment Cleaning
- Hood Duct Cleaning - Foodservice Kitchens
- Ice Dam Removal - Gutters
- Industrial Equipment Degreasing
- Kitchen Cleaning - Foodservice Cleaning Contractors
- Kitchen Cleaning - Foodservice Operators
- Machine Shop Equipment Degreasing
- Metal Degreasing
- Metal Working Equipment Cleaning
- Oil Rig Platform Cleaning
- Paint Removal (Small Areas)
- Parking Lot Cleaning (Concrete)
- Parts Washing
- Rust Removal (Small Areas)
- Shower Cleaning - Commercial
- Sidewalk Cleaning (Concrete)
- Supermarket Carts Cleaning Disinfection
- Swimming Pool Tile Cleaning
- Truck Washing
- Walls Floors Degreasing
- Wheelchair Cleaning
PARTS LIST
Standard Parts / Quantity
| 3' Durable Trigger Wand with Quick Disconnect | 1 |
| 0º (Blast) Nozzle (not shown) | 1 |
| 15º Nozzle (not shown) | 1 |
| 25º Nozzle (not shown) | 1 |
| 40º Nozzle (not shown) | 1 |
| Steam Nozzle (not shown) | 1 |
| 50' High Pressure Steam Hose (not shown) | 1 |
