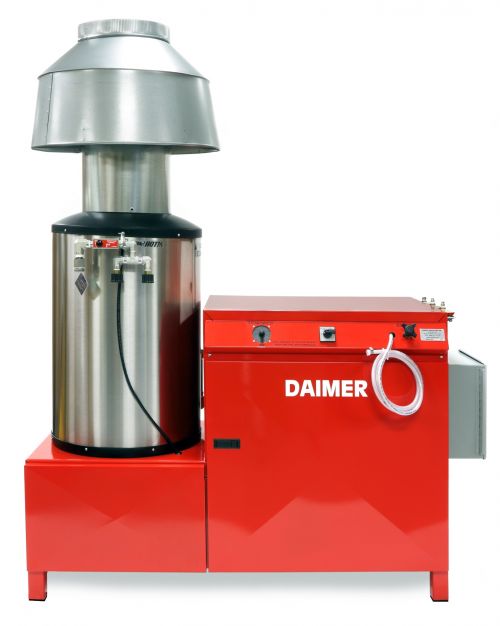

Super Max 15500 Pressure Washer
The Super Max™ 15500 is a stationary, tri-mode pressure washer offering the same cold water, hot water (210°F), and steam (330°F) pressure washing options, and available heating options as other 15000 series models, but with a flow rate of 4 GPM at a pressure of 1000 psi. This pressure washer is ideal for applications that would benefit from a higher flow rate, but require a mid range pressure.
Have a question about this item? Contact us and a sales representative would be glad to help!
Price excludes freight.
View This Video - Discover Daimer's Absolutely
Outstanding Wet Steam Degreasing Capabilities
The Super Max™ 15500 is a stationary, tri-mode electric pressure washer offering steam temperatures up to 330º F and hot water temperatures up to 210º F, like the 15200 and 15400. The Super Max 15500 also offers the same high pressure injection, for the addition of cleaning chemicals, as other 15000 series models. The Super Max 15500, however, offers a flow rate of 4 GPM at a pressure of 1000 psi. This model is ideal for those requiring the permanent addition of a pressure washer offering a mid-range pressure, but a flow rate higher than the 2 GPM flow rate available with the Super Max™ 15200. Heating options are the same as other 15000 series models (propane and natural gas) and available options include: two gun operation.
Daimer offers pressure washers in a variety of power configurations for worldwide requirements. The following are available: 110-120V, 208V, 220-240V, 380V, 415V, 440-480V, and 575V; single and three phase; 50 or 60 Hz. Please contact us for pricing.
| System grade | Commercial / Industrial Grade |
| Promotion text on top | Special Limited-Time Promotional Prices Effective Through |
| Pressure | 1000 PSI |
| Flow rate | 4 GPM |
| Temp options | cold, hot, wet steam |
| Steam temp | up to 330ºF |
| Hot water temp | 180ºF - 210ºF |
| Standard power method | electric: 220V-240V, single phase, 60 Hz |
| Optional power methods | (call for pricing) 220V-240V, single phase, 50 Hz; 220V-240V three phase, 50 or 60 Hz; & 440V, three phase, 50 or 60 Hz |
| Motor size | heavy-duty 3 HP - NEMA |
| Minimum generator size | N/A |
| Power cords | 1 |
| Heating method | Oil / diesel / kerosene / natural gas / propane (selectable) |
| Heating fuel capacity | 9 gallons for OPTIONAL (heating oil, kerosene, or diesel) |
| Heater exchange coil | heavy duty schedule 80 heating coil |
| Heater response time | converts cold water to hot water in approximately 30 seconds |
| Operating time | continuous use |
| Pump drive method | direct drive |
| Chemical infusion | yes, high pressure injection |
| Wand included | durable 3' trigger wand with quick disconnect |
| Nozzles standard | 0º (blast), 15º, 25º, 40º, steam nozzles |
| Pressure hose | 50' high pressure steam hose |
| Pressure hose options | additional/customizable lengths available |
| Dimensions | 52"w. x 23"d. x 50"h. |
| Weight | 1010 lbs |
| Housing | powder-coated steel, high gloss, chip/chemical resistant |
| Color | red and white |
| Warranty | 1 year (limited) |
| Water pump warranty | 5 years (limited) |
| Motorengine warranty | 2 years (limited) |
| Ignition system | electronic direct spark |
| Phosphatizing system | N/A- see Super Max 15500 AF |
| Acidphosphate chemical feed | N/A |
| Trailer mount | N/A |
| Multi gun operation | optional - call for pricing |
| Wall mount | N/A |
| Wet sandblasting system | optional - call for pricing |
Applications
name="Applications" no-in-invoice="true">- Agricultural and Farm Equpment Cleaning
- Airports Steam Cleaners
- Brick Cleaning
- Bus Washing
- Coils, Condensers Related Cleaning
- Concrete Cleaning
- Construction Equipment Cleaning
- Conveyor Belt Cleaning - Non-Food/Beverage
- Degreasing Industrial Equipment
- Drum Cleaning
- Equipment Cleaning - Non-Food/Beverage Industry
- Farm Equipment Cleaning
- Floor and Wall Cleaning - Foodservice Kitchens
- Forklift Truck Cleaning
- Heat Exchangers Cleaning
- Heavy Equipment Cleaning
- Hood Duct Cleaning - Foodservice Kitchens
- Ice Dam Removal - Gutters
- Industrial Equipment Degreasing
- Kitchen Cleaning - Foodservice Cleaning Contractors
- Kitchen Cleaning - Foodservice Operators
- Machine Shop Equipment Degreasing
- Metal Degreasing
- Metal Working Equipment Cleaning
- Oil Rig Platform Cleaning
- Paint Removal (Small Areas)
- Parking Lot Cleaning (Concrete)
- Parts Washing
- Rust Removal (Small Areas)
- Shower Cleaning - Commercial
- Sidewalk Cleaning (Concrete)
- Supermarket Carts Cleaning Disinfection
- Swimming Pool Tile Cleaning
- Truck Washing
- Walls Floors Degreasing
- Wheelchair Cleaning
PARTS LIST
Standard Parts / Quantity
| 3' Durable Trigger Wand with Quick Disconnect | 1 |
| 0º (Blast) Nozzle (not shown) | 1 |
| 15º Nozzle (not shown) | 1 |
| 25º Nozzle (not shown) | 1 |
| 40º Nozzle (not shown) | 1 |
| Steam Nozzle (not shown) | 1 |
| 50' High Pressure Steam Hose (not shown) | 1 |
