Price Call to order
$12,082.00 1-800-471-7157

The XTreme Power® HSC 16200 is a heated, commercial industrial hard surface cleaner that combines the versatile Super Max™ 12200 propane fired, electric tri-mode pressure washer and the XTreme Power® 11500 SE sludge extractor with Daimer's 9" motorized spinner head, resulting in a powerful indoor hard surface cleaning machine. Similar to the XTreme Power® HSC 14250 and 14500 in its extraction capabilities and output of high steam temperatures reaching 330º F, its combination with the Super Max™ 12200 allows for higher pressure (2000 psi) and a flow rate of 4 GPM.

Have a question about this item?
Contact us and a sales representative would be glad to help!


Price excludes freight.

Daimer's exclusive motorized spinner features 60% faster cleaning power and
70% better cleaner results than non-motorized spinner systems on the market!

hard floor cleaners, hard floor steam cleaners, hard surface floor cleaners, turbo force

This robust, versatile machine system is actually several machines in one :

1. Powerful Commercial Multi-Surface Portable 2000 PSI Heated Hard Surface Spinner Cleaning Machine. Exceptional spinner cleaning temperatures up to 210º F. Add an Optional 19" Spinner/Wand for Larger Area Cleaning.

2. Commercial Steam Pressure Washer. 2000 PSI, up to 4 GPM. Pressure Washer Wand Included.

3. Commercial Wall Cleaning System. Using the removable 9" Spinner for Placement or Squeegee Wand in Hands

4. Commercial Sludge Extractor. Powerful 30 GPM for Water Damage Restoration.

The XTreme Power HSC® 16200 is a unique, heated commercial industrial hard surface cleaner that combines Daimer's Super Max™ 12200 propane fired, electric tri-mode pressure washer and the XTreme Power® 11500 SE sludge extractor with our 9" motorized spinner head, resulting in a powerful and versatile indoor hard surface cleaning machine. The spinner included can be used with hot water temperatures up to 210º F. Additionally, this heated hard surface cleaner features a rubber guard to keep water flow contained under the spinner. This combined with the extraction capabilities makes this hard surface cleaning machine ideal for tackling multiple applications, like tile and grout cleaning, marble cleaning, stone cleaning; removing and stripping wax buildup on VCT and vinyl flooring; cleaning rubber floors and other even and uneven hard surface that other hard surface cleaners cannot.

The Super Max™ 12200 tri-mode pressure washer provides high steam temperatures of up to 330º F. The blades on the 9" spinner head rotate at 1000 rpm while firing water at surfaces at a pressure of 2000 psi with a flow rate of 4 GPM. The 9" spinner head can also be removed from the wand and applied to walls for advanced wall cleaning in restrooms and other similar applications. Alternatively, the Super Max™ 12200 can be used as a tri-mode pressure washer and the XTreme Power® 11500 SE sludge extractor can be used other small or large water/debris sludge removal jobs. Please see the product pages for the Super Max™ 12200 and the XTreme Power® 11500 SE sludge extractor for the specs about these cleaning machine models.

Add an optional 19" spinner head configuration to quickly swap out the 9" spinner tool if you wish to clean larger surfaces for virtually any outdoor application.

Product Specifications

Extractor System Warranty1 yearSpinner Housing Warranty3 years (limited)Heating Unit (Pressure Washer) Warranty1 yearSpinner System Warranty1 Year Parts & LaborWater Pump Warranty3 years (limited)
Pressure2000 psi
Flow Rate4 GPM
Temperature Optionscold, hot & wet steam (steam cannot be used with spinner head)
Temperature (Hot)180ºF - 210ºF
Temperature (Steam)up to 330ºF (not for use with spinner head)
Heating MethodPropane
Propane Tank50 lb. empty tank included
Heater Exchange Coilheavy duty schedule 80 heating coil
Spinner Diameter9 inches
Spinner Length46 inches
Spinner RPM1000 rpm
Standard Power Method (pressure washer)electric: 220V-240V, single phase, 60 Hz
Optional Power Methods (pressure washer)(call for pricing) 220V-240V, single phase, 50 Hz; 220V-240V three phase, 50 or 60 Hz; & 440V, three phase, 50 or 60 Hz
Motor Size (pressure washer)heavy duty 5.0 HP - NEMA
Ignition Systemelectronic direct spark
Operating Timecontinuous use
Pump Drive Methodshaft drive
Continuous Water FeedYes. Connect hose from water line directly to pressure washer.
Recovery Tank Size10 gallons
Automatic DumpYes - Auto dump can be turned off if not required.
Dumping Capacity30 gallons/minute
Air Flow212 cfm (cubic feet/minute)
Water Lift143"
Motor (extractor)Two - 3 stage vacuum motors
Power (extractor)electric: 120V
Heater Response Timeconverts cold water to hot water in approximately 30 seconds
Chemical Infusionyes, high pressure injection
Vacuum Hose50' hose included
Dump Hose50' hose included
Steam Hose50' high pressure steam hose
Pressure Nozzles0º (blast), 15º, 25º, 40º, steam nozzles
Pressure Wanddurable 3' trigger wand with quick disconnect
Squeegee Wand14.5" extraction squeegee wand
Optional Wands12" squeegee wand with 4 internal jets; 18" squeegee wand with 6 internal jets; & 9" motorized spinner
Housing (pressure washer)steel - powder-coated, high gloss, chip/chemical resistant
Housing (extractor)heavy duty fiber composite
Color (pressure washer)red and white
Color (extractor)blue or red
Dimensions (pressure washer)48"w. x 41"d. x 50"h.
Dimensions (extractor)16"w x 32"h x 21"l
Weight (pressure washer)900 lbs
Weight (extractor)90 lbs

Parts List


hard surface cleaner, hard surface cleaners

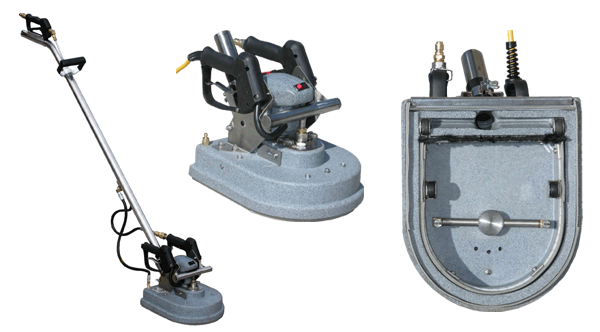

9" Diameter Motorized Spinner 1
25' Solution Hose (not shown) 1
14.5" Extraction Squeegee Wand 1
50' Vacuum Hose 1
50' Dump Hose 1
3' Durable Trigger Wand with 4 Nozzles 1
50' Steam Hose 1


Switch To Advanced Floor Cleaner Systems for Efficient Cleaning

As the standards of cleanliness expected in industrial and commercial settings continue to rise, it is imperative to discard traditional cleaning techniques and embrace the new concepts of cleaning. This involves using the most technologically advanced floor cleaning machines. Unlike conventional pressure washers, the new-generation floor steamers are versatile versions that offer the benefits of steam pressure washers, hard surface cleaners, wall cleaners, and sludge extractors.

Steam pressure washers, such as the XTreme Power HSC® 16200, from Daimer® are ruggedly built of chip resistant, stainless steel housing. Powered by a 5 HP NEMA engine, this tri-mode floor steamer generates pressure levels of 2000 psi and flow rates of 4 gpm. The heavy-duty heating coils in this floor steam cleaner enhance the heater response time by helping convert cold water to hot water in about 30 seconds. To ensure exceptionally good cleaning results, these floor steam cleaners eject hot water in the range of 180ºF - 210ºF and steam at temperatures as high as 330ºF.

Floor steam cleaners, such as the XTreme Power HSC® 16200, have been specifically designed to cater to the maintenance applications in industrial and commercial facilities. As a result, this floor steam cleaner features a vacuum hose, a dump hose and steam hose of 50 feet each in length. To enable continuous operation for long periods, such floor cleaners can be directly connected to a hose line. The floor steamer also comes with a pressure wand, an extraction squeegee wand and other optional wands designed to enhance the cleaning performance.

Review Daimer®'s website and check out the list of floor steamers that are efficient and quick in cleaning hard surfaces.
