Daimer
SM-15700-216DH-AST
USD
Daimer
VoltagePrice Call to order
230V, single phase, 60Hz$9,275.00 1-800-471-7157

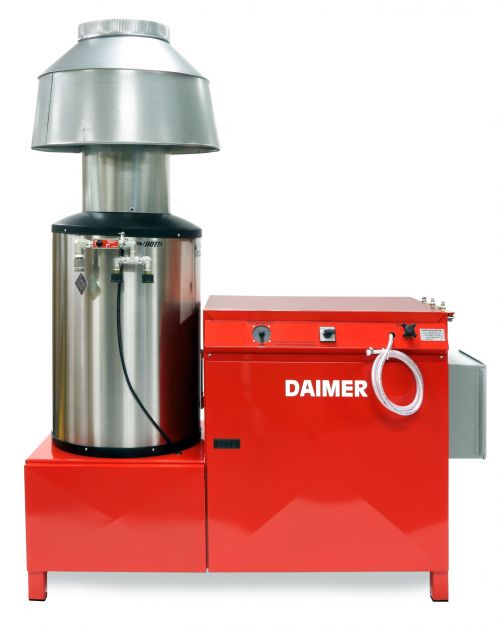

The Super Max™ 15700 AST® is a stationary, industrial/commercial, tri-mode electric pressure washer featuring Daimer's exclusive AST® (Automatic Shutoff Technology®). This functional pressure washer machine can be used independently as a cold water, hot water (210°F), or steam (330°F) pressure washer. The 15700 AST® features the same available heating options as other 15000 AST® series models with a higher flow rate (5 GPM) and pressure (1500 psi).

Have a question about this item?
Contact us and a sales representative would be glad to help!

Description


Price excludes freight.

View This Video - Discover Daimer's Absolutely

Outstanding Wet Steam Degreasing Capabilities

Loading the player…

pressure washer, pressure washers

The Super Max™ 15700 AST® is a powerful stationary, industrial/commercial, tri-mode electric pressure washer that features the Daimer exclusive AST® (Automatic Shutoff Technology®). This world's only technology reduces wear and tear on the parts and other components, extending the life of this commanding pressure washer machine. Like other 15000 AST® series models, the 15700 AST® can be used independently as a cold water pressure washer, hot water pressure washer, and steam pressure washer; with hot water temperatures reaching 220ºF and steam temperatures up to 330ºF.

The 15700 AST® offers added versatility with its high pressure injection for the addition of cleaning solutions to further enhance its cleaning capabilities. This pressure washer machine can also be purchased with two gun operation for added flexibility. Powered by a 5 HP NEMA engine, this pressure washer machine offers customers the opportunity to natural gas or propane heating. The Super Max® 15700 AST® pressure washer equipment is ideal for commercial/industrial applications requiring the addition of a permanent tri-mode pressure washer system with power requirements beyond that of the 15500 AST®.

What is AST® Technology?

AST® is a proprietary system that works as follows: When AST® is engaged, it shuts off the pump and motor after 30 seconds if the gun is not in use and water is not flowing through the system. When the pressure washer operator pulls the trigger again, the motor and pump go on. This feature is particularly useful for applications in which the pressure washer operator is using a long hose, say more than 25 feet, and it is not practical for them to go back and forth to the machine to turn it off during every break.

The pumps and motors in conventional electric pressure washers remain active whether or not water is flowing through the system. As a result the user has to keep walking back to the system to shut it off or risk damaging the motor and pump.

Daimer offers pressure washers in a variety of power configurations for worldwide requirements. The following are available: 110-120V, 208V, 220-240V, 380V, 415V, 440-480V, and 575V; single and three phase; 50 or 60 Hz. Please contact us for pricing.

Product Specifications

Warranty1 year (limited)Water Pump Warranty5 years (limited)Motor/Engine Warranty2 years (limited)
Pressure1500 psi
Flow Rate5 GPM
Temp. Optionscold, hot, wet steam
Steam Temp.up to 330ºF
Hot Water Temp.180ºF - 210ºF
Standard Power Methodelectric: 220V-240V, single phase, 60 Hz
Optional Power Methods(call for pricing) 220V-240V, single phase, 50 Hz; 220V-240V three phase, 50 or 60 Hz; & 440V, three phase, 50 or 60 Hz
Motor Sizeheavy duty 5.0 HP - NEMA
Minimum Generator SizeN/A
Gasoline/Diesel Fuel CapacityN/A
Ignition Systemelectronic direct spark
Power Cords1
Heating Methodnatural gas (requires natural gas line); or propane (customer provides vapor withdrawal cylinder) OPTIONAL natural gas or propane (OPTIONAL no.1 or no. 2 heating oil; diesel or kerosene - CALL FOR PRICING)
Heating Fuel Capacity9 gallons for OPTIONAL (heating oil, kerosene, or diesel)
Heater Exchange Coilheavy duty schedule 80 heating coil
Heater Response Timeconverts cold water to hot water in approximately 30 seconds
Operating Timecontinuous use
Pump Drive Methoddirect drive
Chemical Infusionyes, high pressure injection
Wand Includeddurable 3' trigger wand with quick disconnect
Nozzles Standard0º (blast), 15º, 25º, 40º, steam nozzles
Pressure Hose50' high pressure steam hose
Pressure Hose Optionsadditional/customizable lengths available
Dimensions52"w. x 23"d. x 50"h.
Weight1025 lbs
Housingsteel - powder-coated, high gloss, chip/chemical resistant
Colorred and white
Phosphatizing SystemN/A- see Super Max 15700 AF
Acid/Phosphate Chemical FeedN/A
Trailer MountN/A
Multi-Gun Operationoptional - call for pricing
Wall MountN/A
Wet Sandblasting Systemoptional - call for pricing

Parts List

PARTS LIST

Standard Parts / Quantity

3' Durable Trigger Wand with Quick Disconnect 1
0º (Blast) Nozzle (not shown) 1
15º Nozzle (not shown) 1
25º Nozzle (not shown) 1
40º Nozzle (not shown) 1
Steam Nozzle (not shown) 1
50' High Pressure Steam Hose (not shown) 1

Video

Brochure

Unique Aspects of Power Washer Systems

Industrial settings generally accumulate lots of dust, dirt, grime, and grease on a daily basis. The maintenance professionals in such areas have to clean a range of surfaces, such as large trucks, industrial equipment, hard surface floors, concrete, driveways, warehouses, and parking lots. Therefore, the cleaning machines they use must be highly versatile. Fortunately, top suppliers now offer powerful and versatile pressure washer equipment specifically designed for industrial applications.

The Super Max™ 15700 AST® available from Daimer® is a stationary and tri-mode pressure washer designed for commercial and industrial applications. Here is a closer look at a few aspects of this pressure washer:

  • Durability: Industrial applications demand the use of highly durable gas pressure washers. For this reason, the Super Max™ 15700 AST® features heavy-duty housing that is powder-coated and chip and chemical resistant.
  • Flow rates and pressure levels: Given the high flow rates of 5 gpm and pressure levels of 1500 psi, these electric pressure washers are ideal for challenging tasks, such as degreasing and concrete maintenance.
  • Temperature options: While some industrial applications can be managed with cold water, others, such as degreasing, require the use of hot water or steam. This is the reason why high pressure washers, such as the Super Max™ 15700 AST®, come with tri-mode capabilities. These hot water pressure washers can generate cold water, hot water at temperatures of up to 210ºF, and steam at temperatures of up to 330ºF.

Powered by a 5.0 HP NEMA engine, these industrial grade power cleaners also feature a double-gun operation, enabling two users to utilize the machine to clean different areas simultaneously.
